4
UNPACKING
Your drill press is shipped complete in one container. Carefully unpack the drill press and all

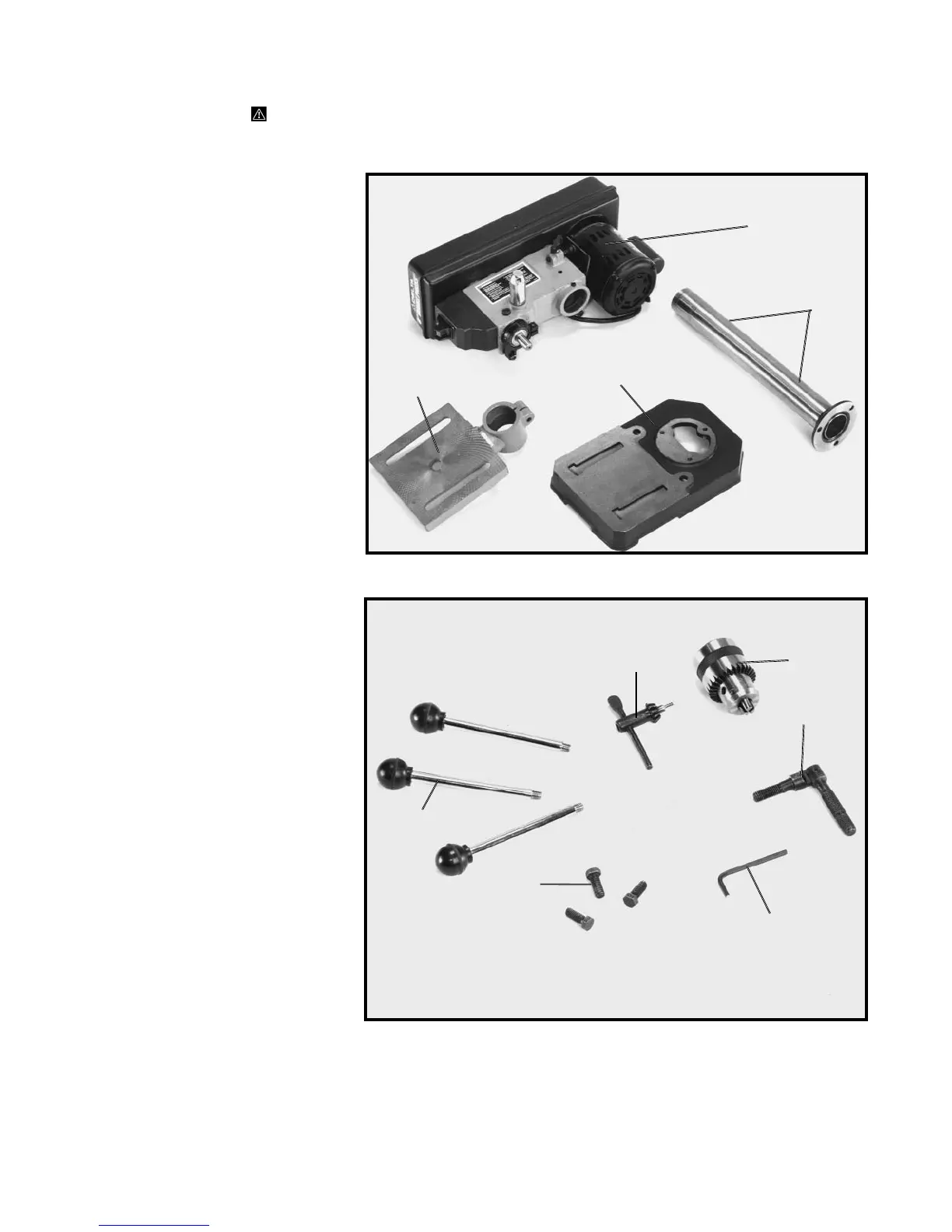

loose items from the container. Figure 2 illustrates the drill press and all loose items supplied
with the machine. WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE DRILL
PRESS TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED
AND YOU HAVE READ AND UNDERSTOOD THE ENTIRE INSTRUCTION MANUAL.
Fig. 2
1 - Drill Press Head and Motor
2 - Column and Base Flange
3 - Base
4 - Table
5 - Chuck
6 - Chuck key
7 - Clamp handle
8 - Wrench
9 - M8 x 20mm
Hex head screw (3)
10 - Pinion Shaft Handles (3)
Fig. 3
1
2
3
4
10
9
8
7
6
5
