Delta AS200 Series User Manual

AS Series Operation Manual
2-67
_2
 AS04SIL-A
38.2 95
75
35
88
98.3
1
4
5
2
3
6
7
8
7
Q2
Q4
E4
Q3
E3
C4
E2
C3
CQ 1
Q1
E1
C2
MS
NS
C1
PWR
04 SIL
●
CQ2
L3+
L3
-
L4+
L4
-
DI 1
DI2
CQ3
DI3
CQ4
DI4
L2+
L2
-
L1+
L1
-
24V
0V
Unit: mm
Number
Name
Description

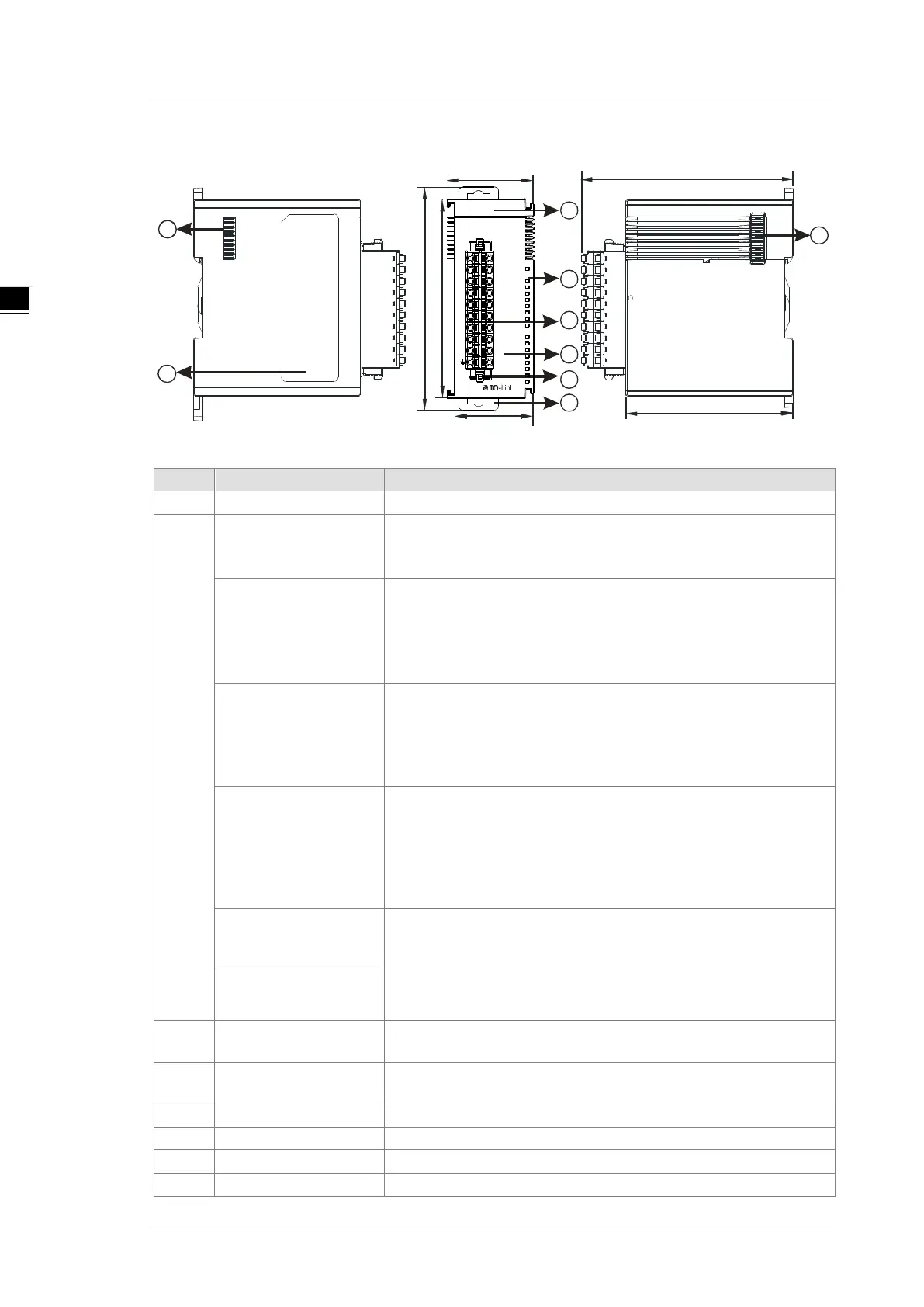

1 Model name Model name of the module
2
POWER LED indicator
Indicates the status of the power supply
ON: the power is on
OFF: no power or the power is low
Module LED indicator
Error status of the module
OFF: The module is normal.
Blinking:

Module setting or communication error (blinks every 1 second)

Hardware or low power error (blinks every 0.2 second)
Network LED indicator
Error status of the network
ON: No external power supply
Blinking: Scanning is under going or the module is configured and the
diagnosis is done.
OFF: The module is configured but the diagnosis has not done yet.
C1, C2, C3, C4 LED
indicator (orange)
IO-Link connection status of each communication port
ON: The communication port is in IO-Link mode and a device is
connected.
Blinking: The communication port is in IO-Link mode but no device is
connected or thhe device connected is not configured.
OFF: The communication port is disabled or in SIO mode.
Q1, Q2, Q3, Q4 LED
indicator (orange)
Indicates the status of input / output in SIO mode
ON: The input/output is working in SIO mode.
OFF: The communication port is disabled or in IO-Link mode.
E1, E2, E3, E4 LED
indicator (red)
Indicates if any warning or error occurs in the IO-Link connection
Blinking: A warning or error occurs
OFF: No warnings or errors
3
Removable terminal
block
IO-Link
4
Arrangement of the
input/output terminals
Arrangement of the terminals
5
Terminal block clip
Removal of the terminal block
6
DIN rail clip
Secures the module onto the DIN rail
7
Module connecting set
Connects the modules
8
Label
Nameplate
