Chapter 4 Installing Hardware

4-3

4_

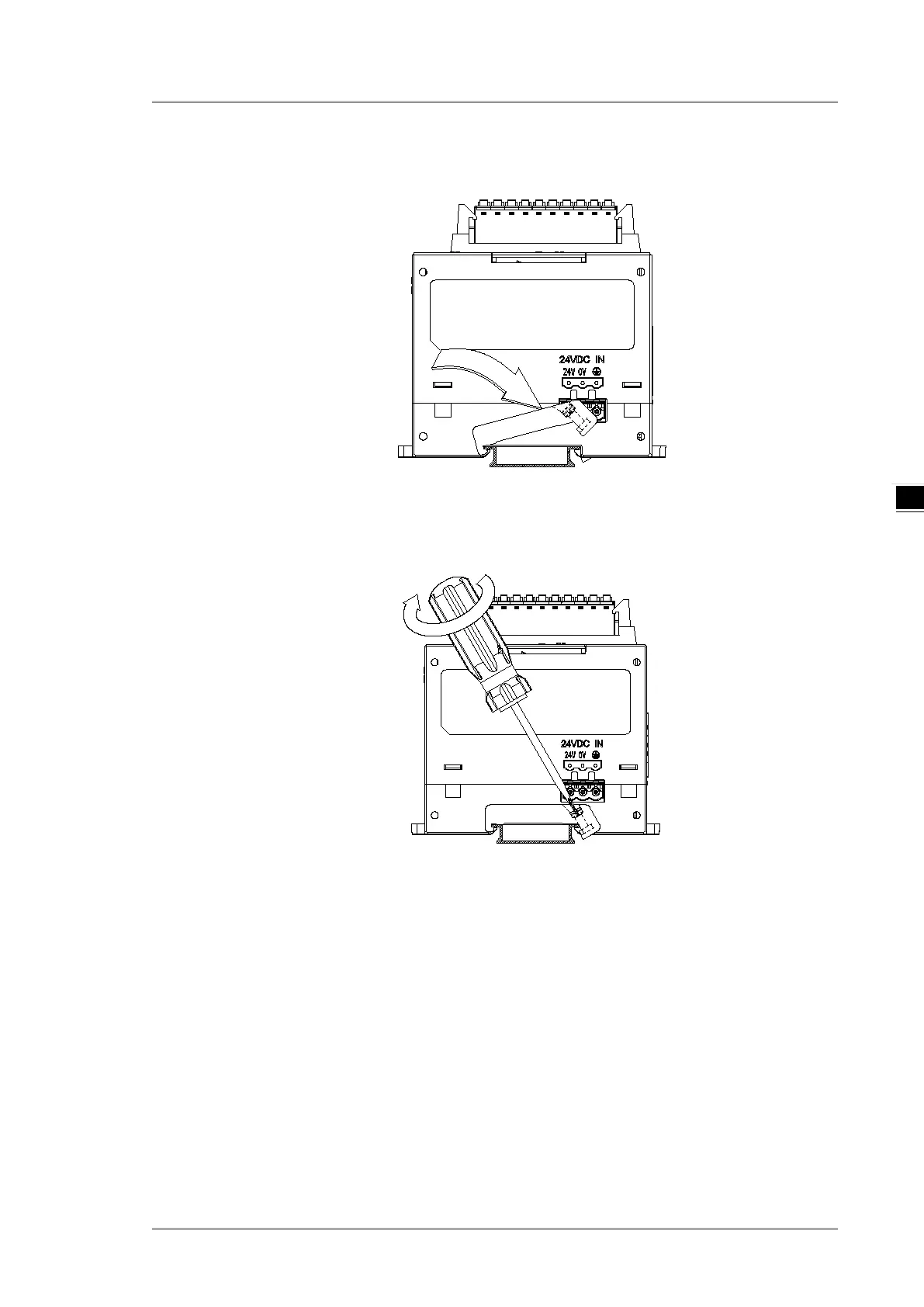

 Install the baffles:



Hook the baffle onto the DIN rail and press it down as the directional arrow shows below.

 Use screws to secure the baffle.
