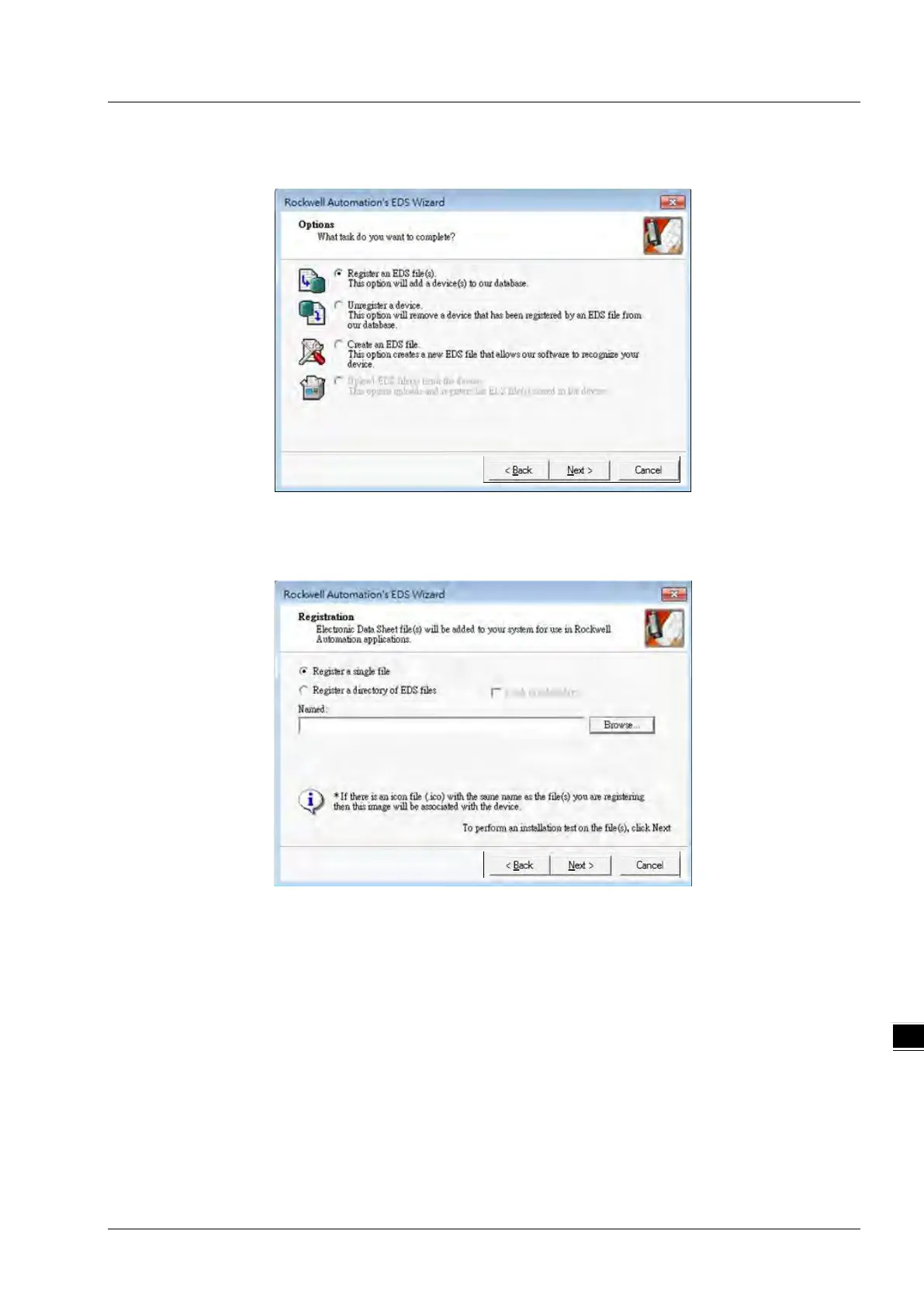

Chapter 9 Ethernet Specification and Operation

9-57

9_

 Select Register an EDS file(s) and click Next.

 Select Register a single file and click Browse to find the EDS file to import.
