Chapter 9
E
ther
n
et
Specif
ication and Operation
9
-
11
7
9_
17.

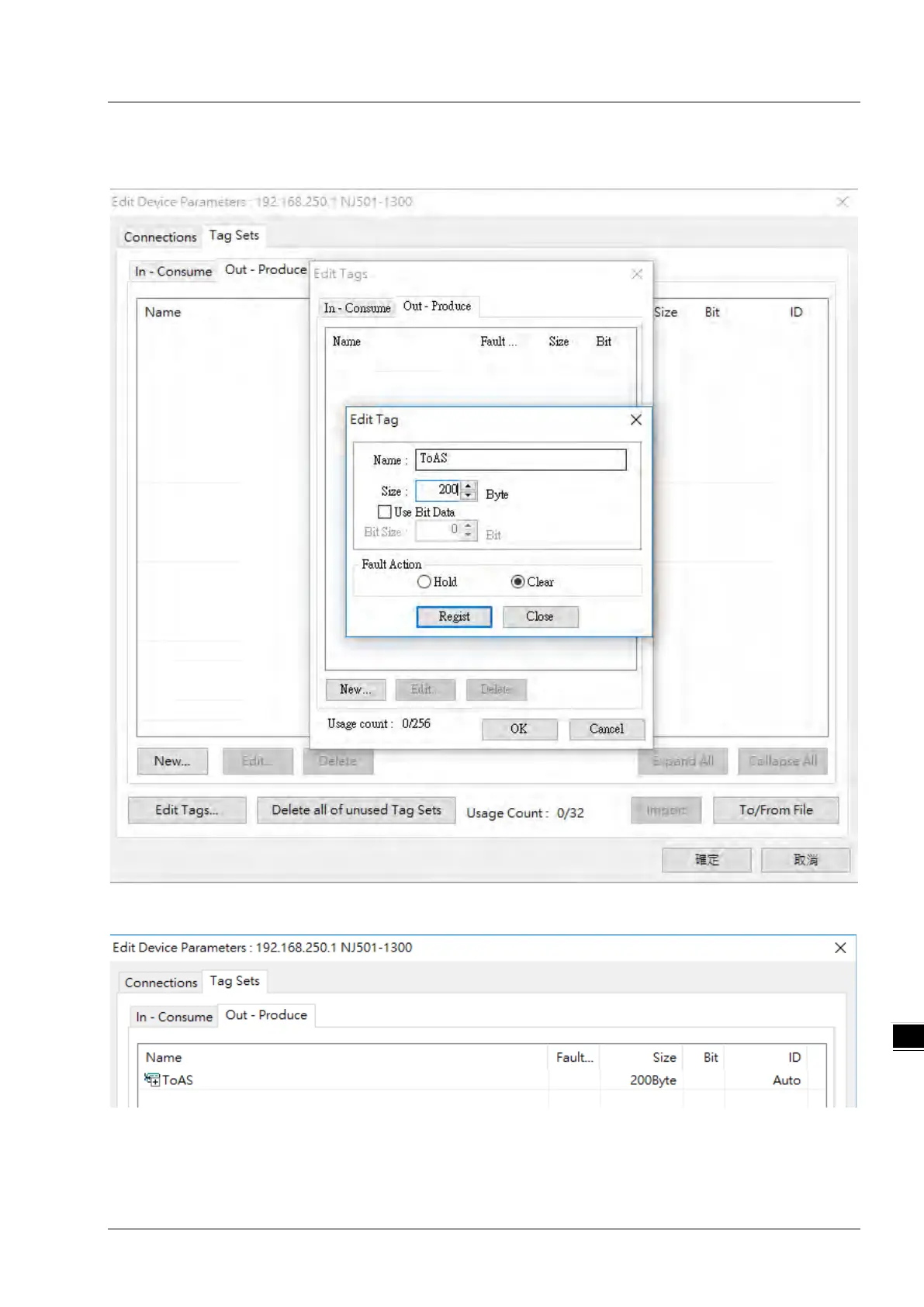

Click
Edit T
ags
on the
T
ag Sets
tab and clic
k
New
on the
Out
-
Produce
tab to create a
ne
w t
a
g with the s
ame
name and lengt
h as the one from
the
“
output
”
tag set in Sysm
ac
.
18.
The new tag is created as
shown belo
w
.
