Chapter 9 Ethernet Specification and Operation

9-121

9_

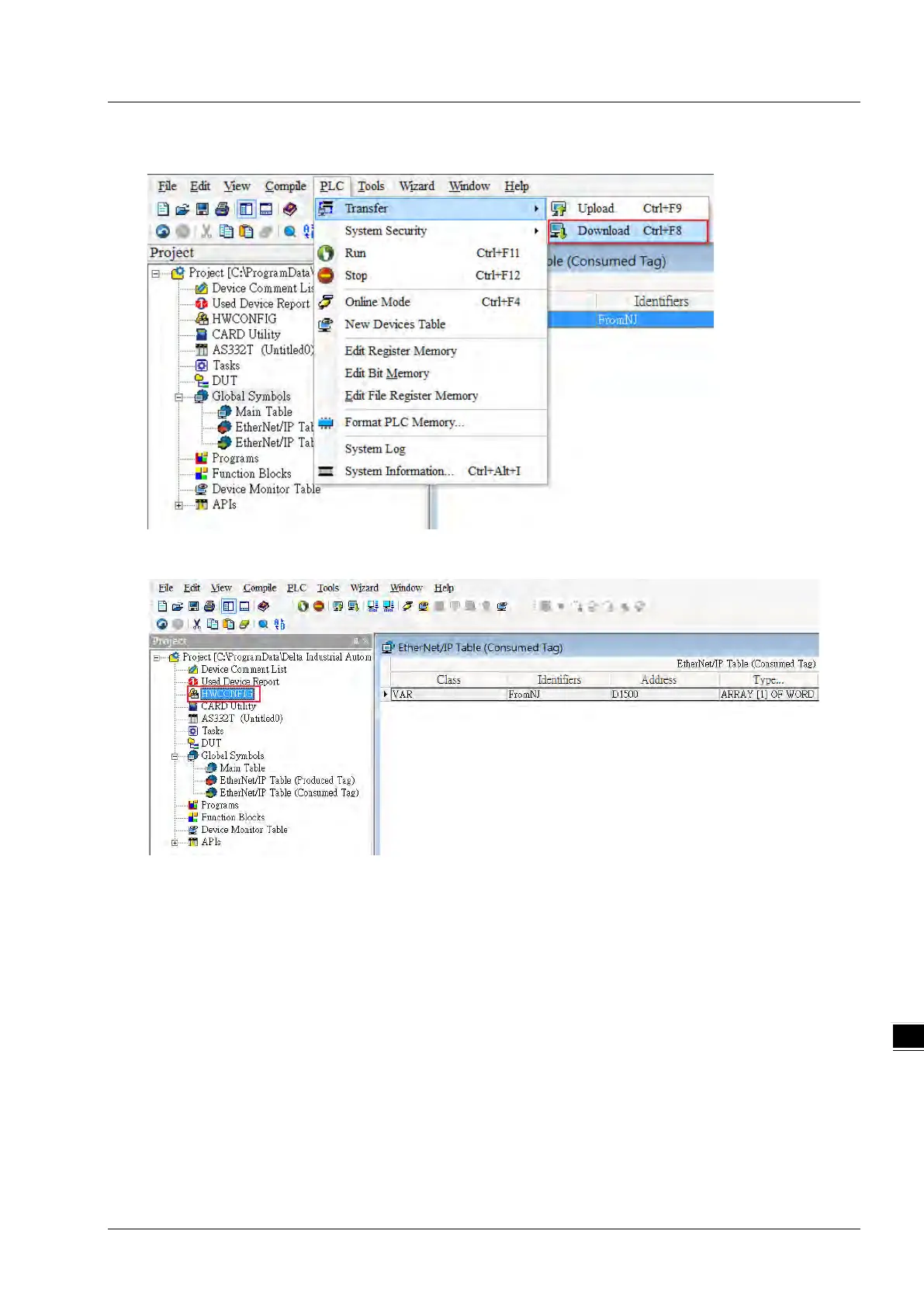

4. Go to PLC-> Transfer -> Download to download the parameters to the Scanner.

5. Double-click HWCONFIG from the Project section on the left to start HWCONFIG.
