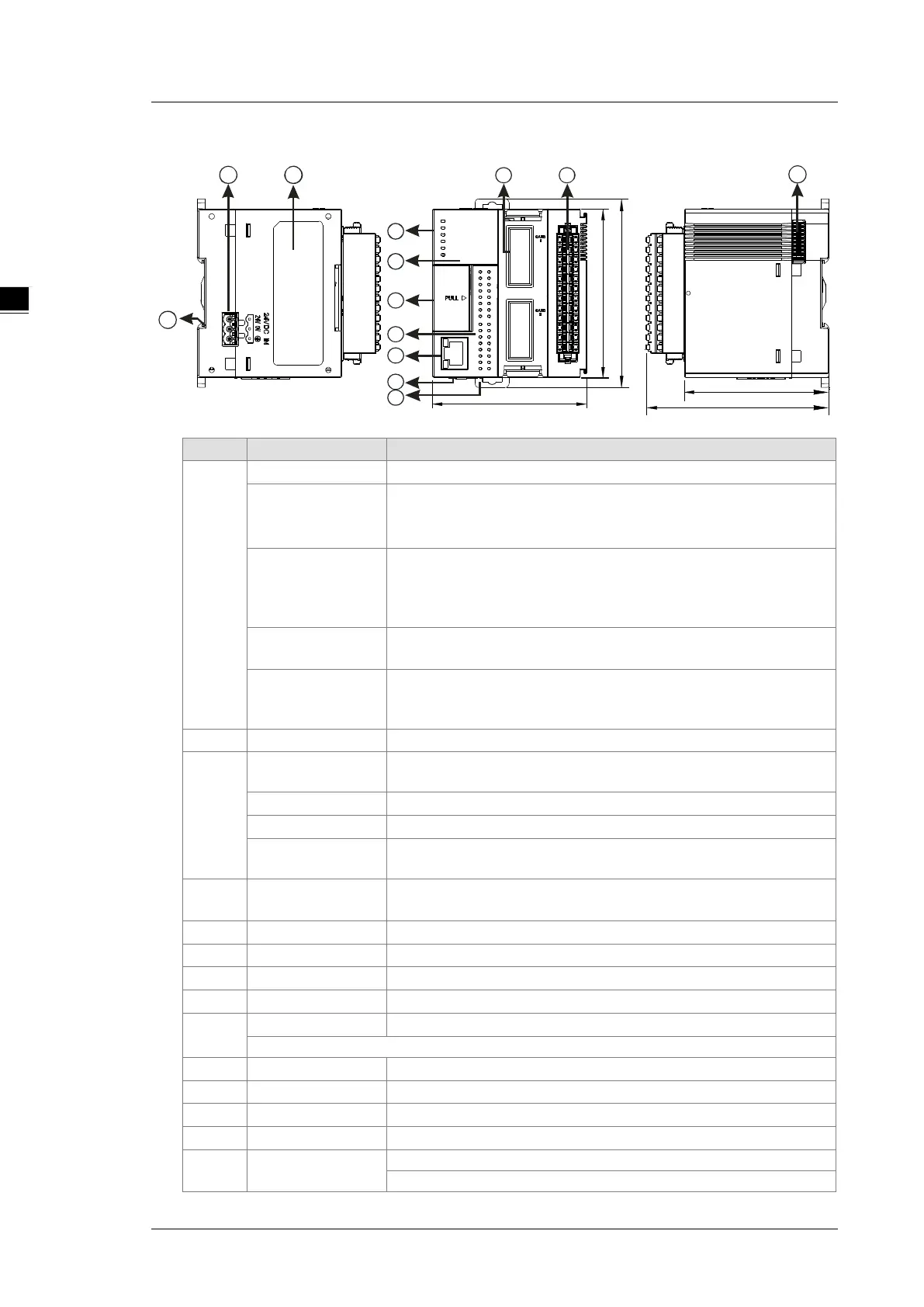

Delta AS200 Series User Manual

AS Series Operation Manual
2-9
_2
 AS320T-B/AS320P-B
10
11
12
80
75
95.5
13
98.3
88
8 1 4
1
2
4
3
5
7
6
Unit: mm
Number
Name
Description
1
Power LED indicator
Indicates the power status of the CPU module
Run LED indicator
Operating status of the module
ON: the module is running.
OFF: the module is stopped.
Error LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
BAT.LOW LED
indicator
Indicates the battery status of the CPU module.
(Enable/Disable this display in HWCONFIG in ISPSoft)
COM1 LED
COM2 LED
Indicates the communication status of the COM port.
OFF: no communication over the COM port
Blinking: communication over the COM port
2
Model name
Shows the model name of the CPU module.
3
Run/Stop
RUN: execute the programs
STOP: stop the programs
USB port
Mini USB communication port
SD card slot
Provides an interface for an SD card
VR0/VR1
VR0: use the flag SM166 to activate the values in SR166
VR1: use the flag SM167 to activate the values in SR167
4
Input/Output LED
indicator
If there is an input signal, the input LED indicator is ON.
If there is an output signal, the output LED indicator is ON.
5
Ethernet port
Provides an interface for a n Ethernet communication
6
COM1/COM2
Provides an interface for RS-485 communication
7
DIN rail clip
Secures the DIN rail
8
Extension card slot
Provides an interface for an extension card
9
MIL connector
Connects the module and the wiring module
AS300N-A does not come with inputs/outputs; no MIL connector for it.
10
Grounding clip
For grounding
11
Power supply
For power supply
12
Label
Nameplate
13
External module port
Connects the modules
14
Removable terminal
blocks
Connects the module and the wiring module
AS300N-A does not come with inputs/outputs; no MIL connector for it.
