Chapter 3 Wiring ASDA-A2
3-52 Revision February, 2017
J2 J1
PIN Description PIN Description
18 DO4+ 1 DO4+
19 DO3+ 3 DO3+
20 CN_GND 51,52 CN_GND

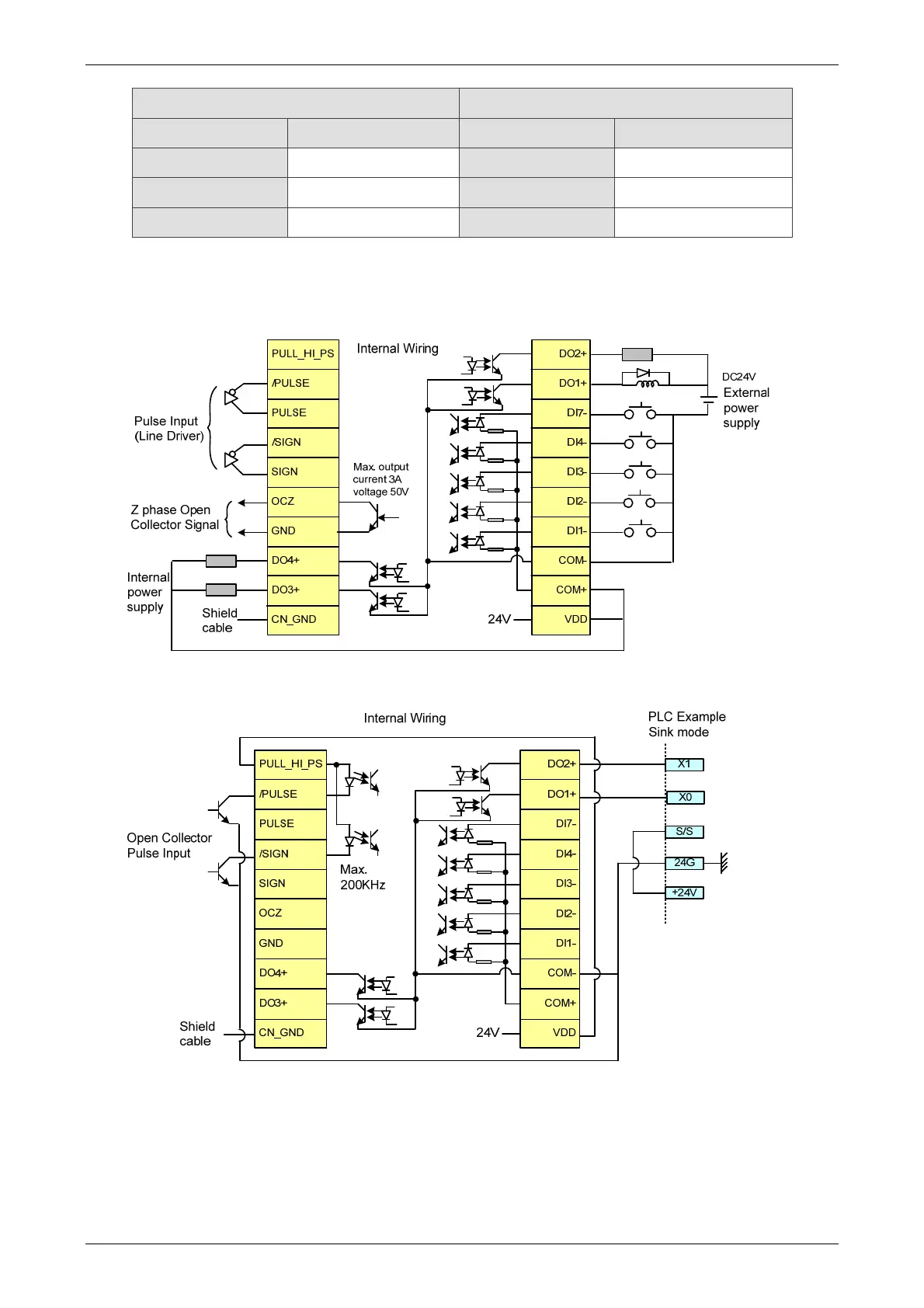

Example of wiring:
