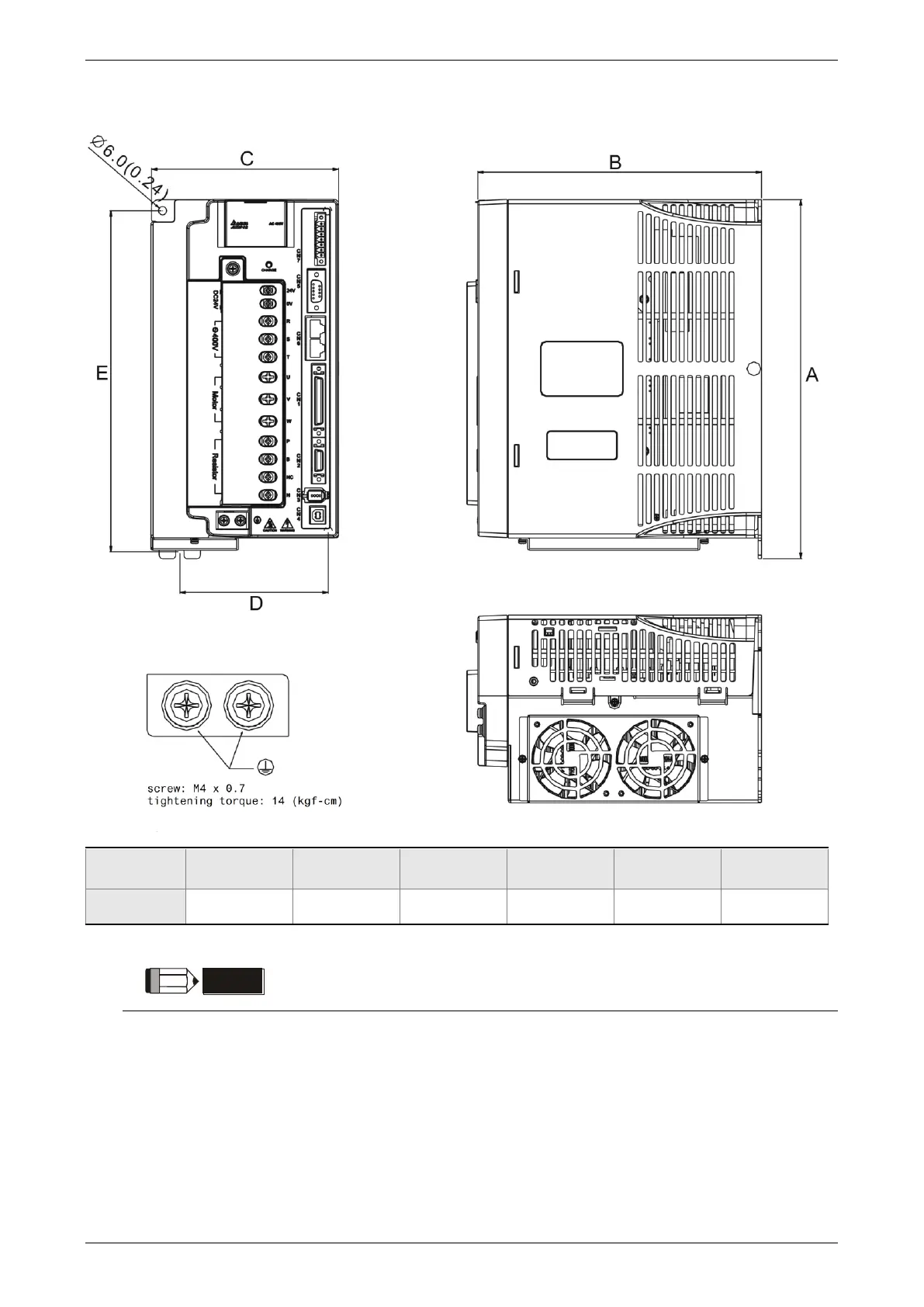

ASD-A2-7543 (7.5 kW)
Power
A
B
C
D
E
Weight
7.5 kW
254.2 (10.01)
205.5 (8.09)
136 (5.35)
107 (4.21)
247 (9.72)
5.5 (12.1)
NOTE
1) Dimensions are in millimeters (inches)
2) Weights are in kilograms (kg) and (pounds (lbs)).
3) The servo drive images shown here may differ from actual product appearance. Please refer to
actual product appearance.
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for
reference only.
