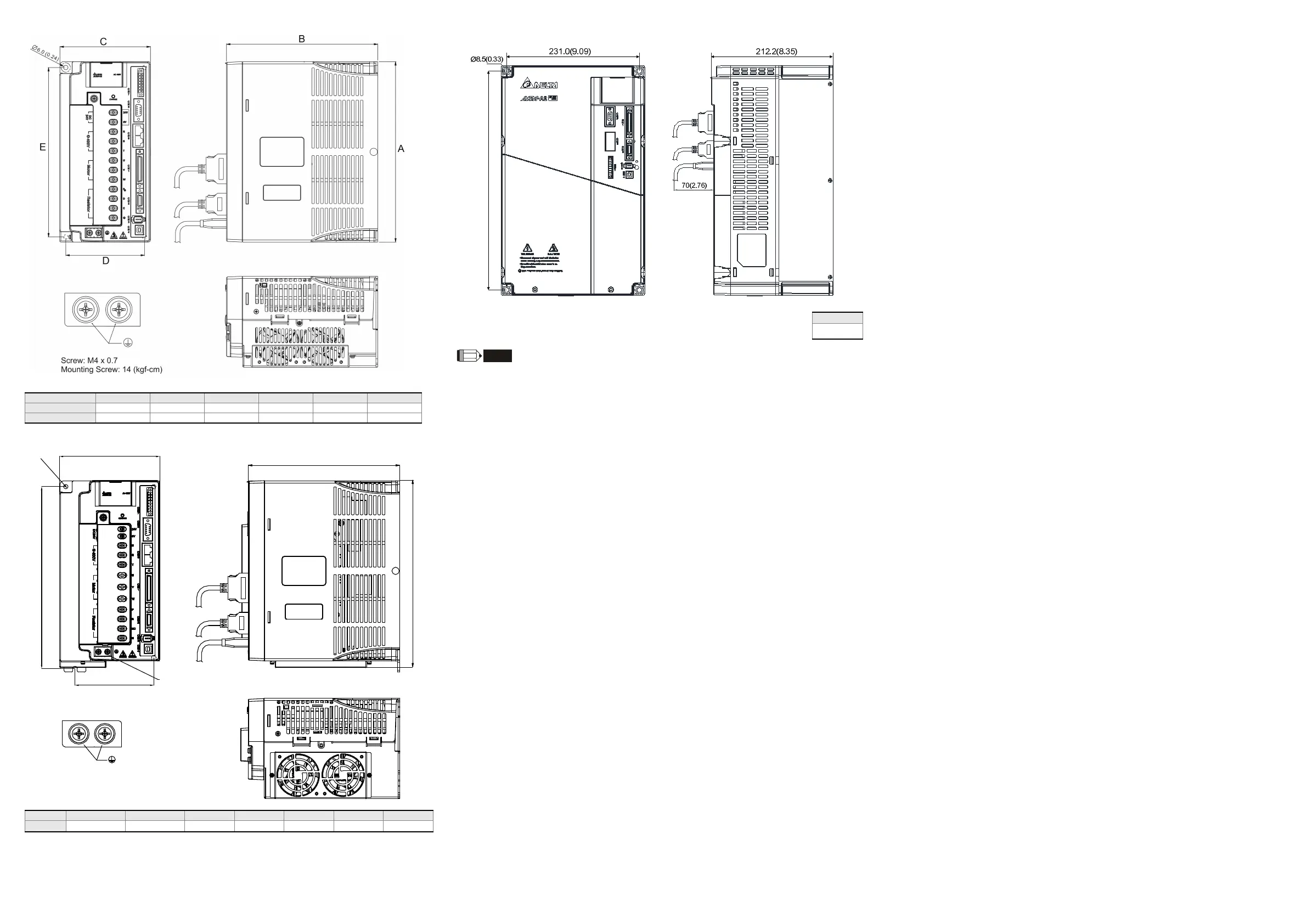

Delta ASD-A2-3043 Series Instruction Sheet

2kW ~ 5.5kW models
Power A B C D E Weight
750W ~ 1.5kW 216 (8.50) 203 (7.99) 82 (3.23) 62 (2.44) 203 (7.99) 2.89 (6.36)
2kW ~ 5.5kW 245 (9.65) 205.4 (8.11) 123 (4.88) 107 (4.21) 230 (9.06) 5.5 (12.1)
7.5kW models
A
SCREW : M4×0.7
MOUNTING SCREW TORQUE : 14 (kgf-cm)
PE TERMINAL
Ø6(0
.
24)
C
D
E
B
Power A B C D E F Weight
7.5kW
254.2（10.01）
205.5(8.09) 136(5.35) 107(4.21) 247(9.72) 232(9.13)
5.5（12.1）
11kW,15kW models
381.0(15)
Weight
8.5（18.7）
NOTE
1) Dimensions are in millimeters and (inches).
2) Weights are in kilograms and (pounds).
3) For the actual appearance, please refer to the actual purchased product.
4) In this instruction sheet, actual measured values are in metric units. The units in
(imperial units) are for reference only. Please use metric for precise
measurements.
