Delta ASD-A2R-0221 Series

Chapter 3 Wiring ASDA-A2R Series
3-38 Revision December. 2014

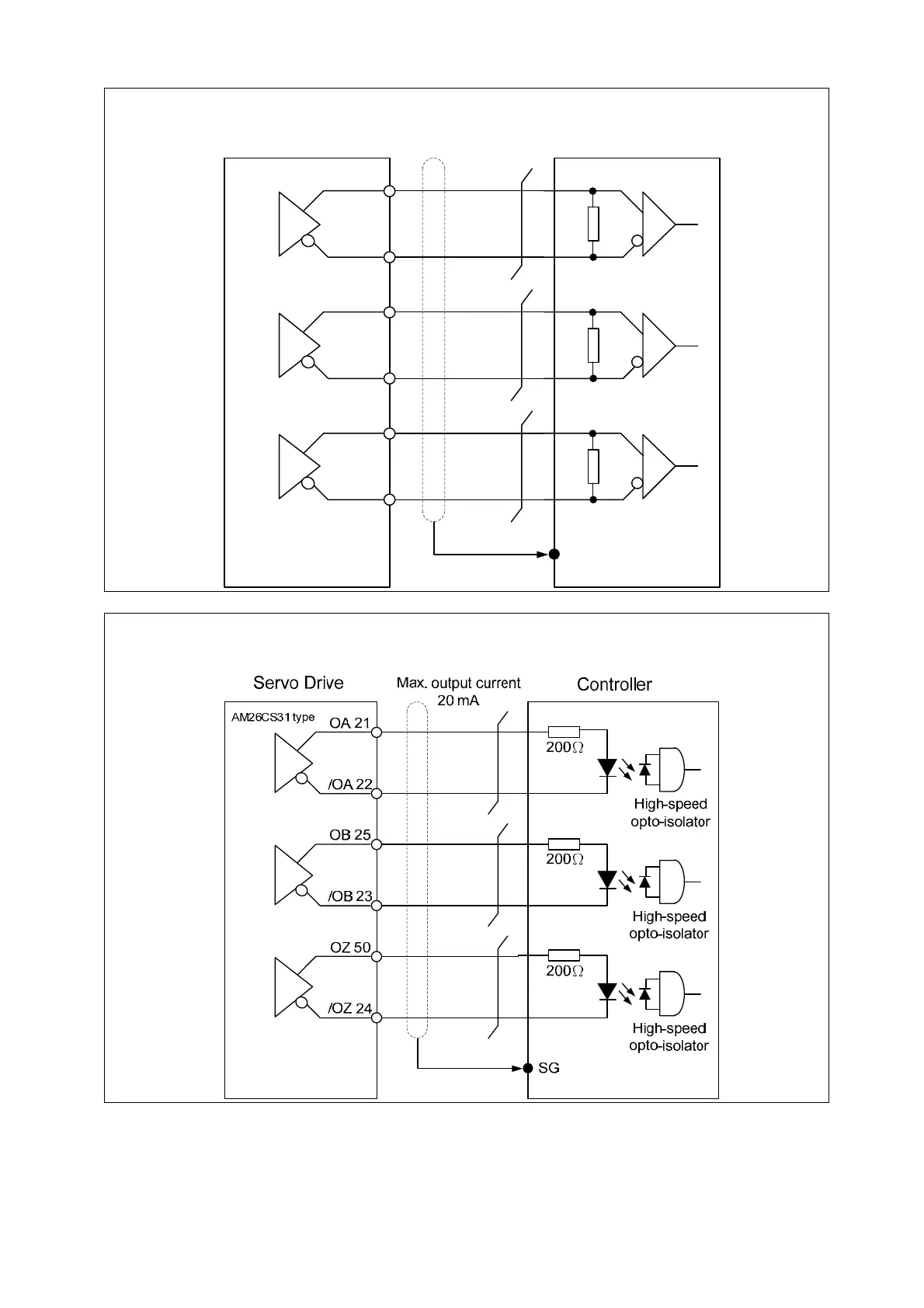

C13: Encoder signal output (Line driver)
125Ω
125Ω
125Ω
OA 21
/OA 22
OB 25
/OB 23
/OZ 24
OZ 50
Controller
Servo Drive
AM26CS31 type
Max. output current 20mA
SG
C14: Encoder signal output (Opto-isolator)
