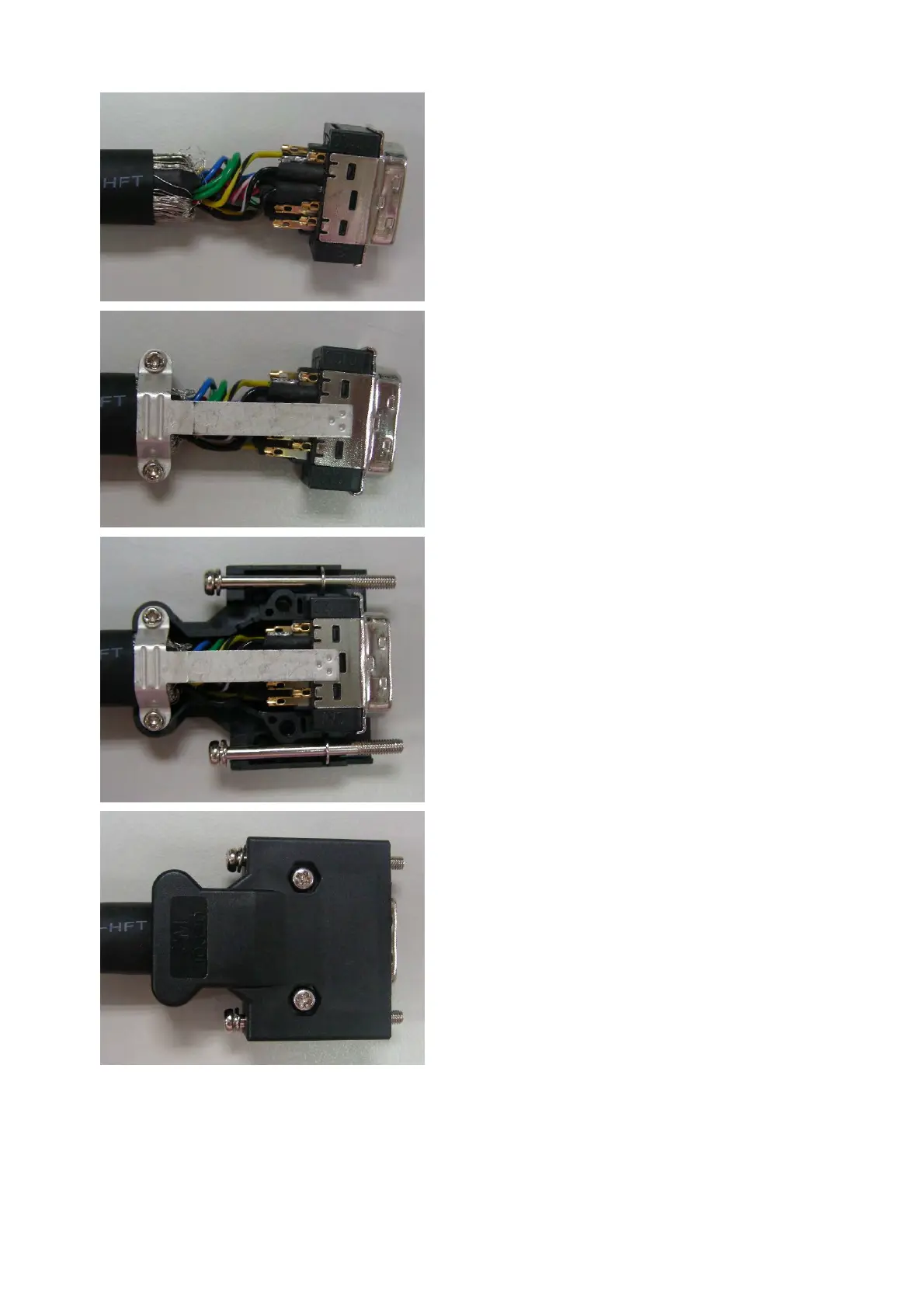

(3) Leave a length of 5~10mm metal core
wires with shielding outside the cable. The
length is about the width of the metal
saddle. The other unexposed wires of the
cable should be protected by the heat
shrink tube for good ground contact.
(4) Install a metal saddle to fix the exposed
metal core wires. The metal saddle must
completely cover all the exposed metal
core wires. The extended sheet metal
should be connected to the metal part of
the connector.
(5) Install the connector into the plastic case
as shown in the figure.
(6) Tighten the screws to complete a shielded
CN2 connector.
