DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-6
Mnemonic Operands Function Program steps
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
AND X, Y, M, S, T, C
Connect NO
contact in series
1~3
Explanations:
1. The AND instruction is used to connect NO contact in series.
2. Refer to instruction LD for more information on the supported firmware versions for each
modules.
Program example:

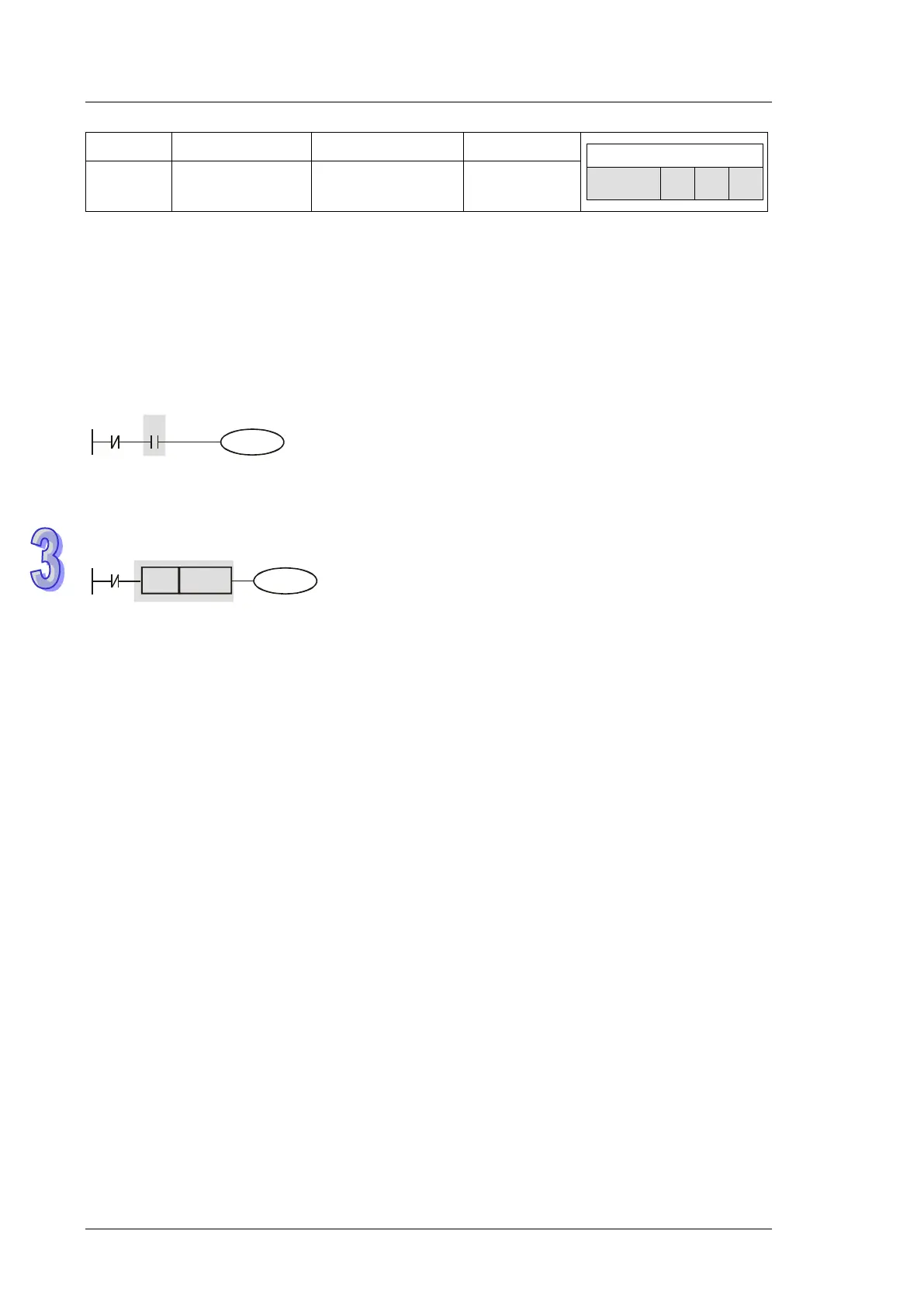

Ladder diagram:
X0X1
Y1
Instruction: Operation:
LDI X1 Load NC contact X1
AND X0 Connect NO contact X0 in series
OUT Y1 Drive Y1 coil
Ladder diagram:
X1
Y1
X10E2
LD
Instruction: Operation:
LDI X1 Load NC contact X1
AND X10E2 Connect NO contact X20 in series
(Suppose E2 = K8)
OUT Y1 Drive Y1 coil
