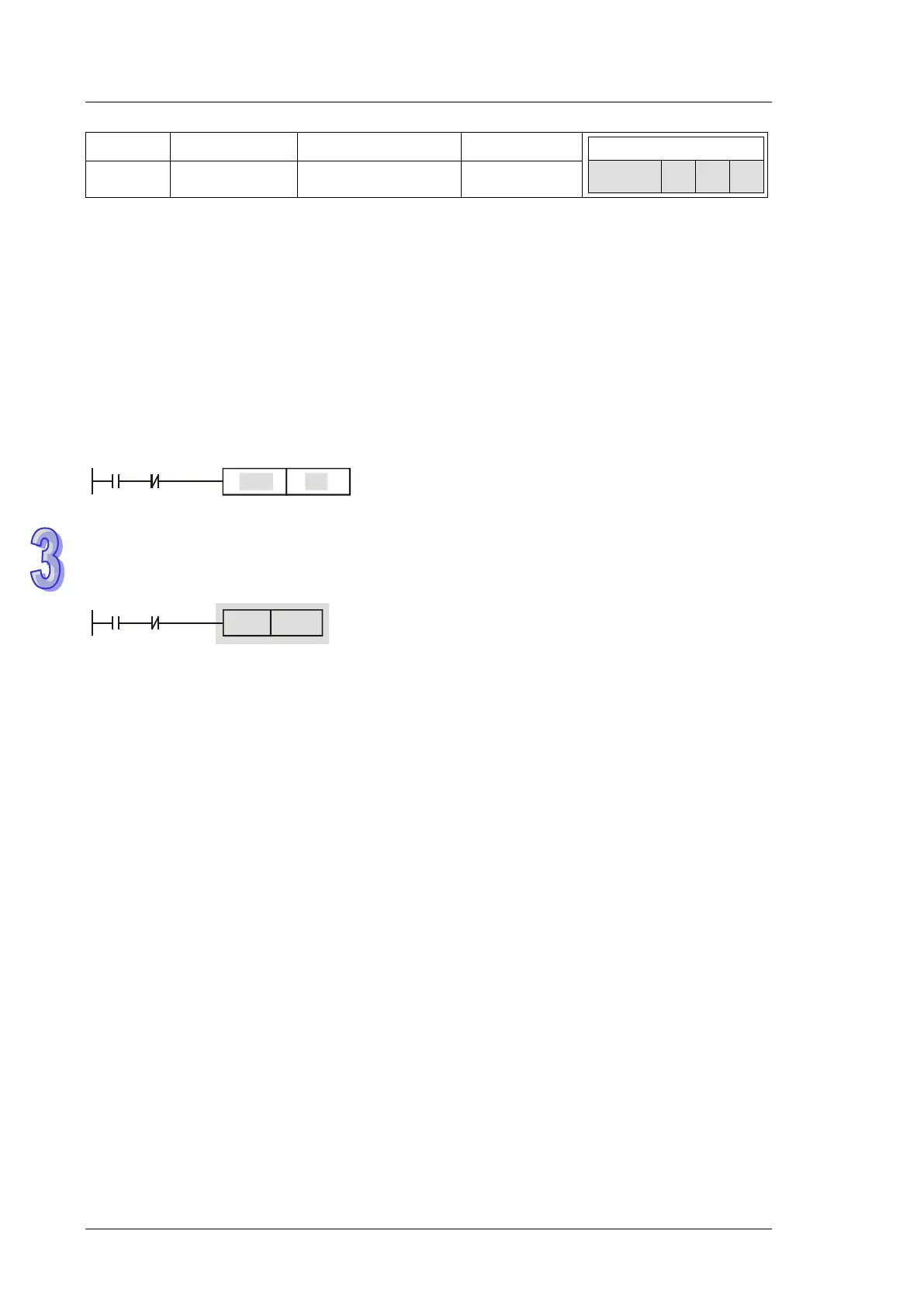

Delta DVP-SS2 User Manual

DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-14
Mnemonic Operands Function Program steps
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
SET Y, M, S
Latches the ON
status
1~3
Explanations:
1. When the SET instruction is driven, its designated device will be ON and latched whether the
SET instruction is still driven. In this case, RST instruction can be applied to turn off the
device.
2. Refer to instruction LD for more information on the supported firmware versions for each
modules.
Program example:
Ladder Diagram:
X0 Y0
Y1SET
Instruction: Operation:
LD X0 Load NO contact X0
ANI Y0 Connect NC contact Y0 in series
SET Y1 Drive Y1 and latch the status
Ladder Diagram:
X0 Y0
Y15E5
SET
Instruction: Operation:
LD X0 Load NO contact X0
ANI Y0 Connect NC contact Y0 in series
SET Y15E5 Drive Y20 and latch the status
(Suppose E5=K3)
