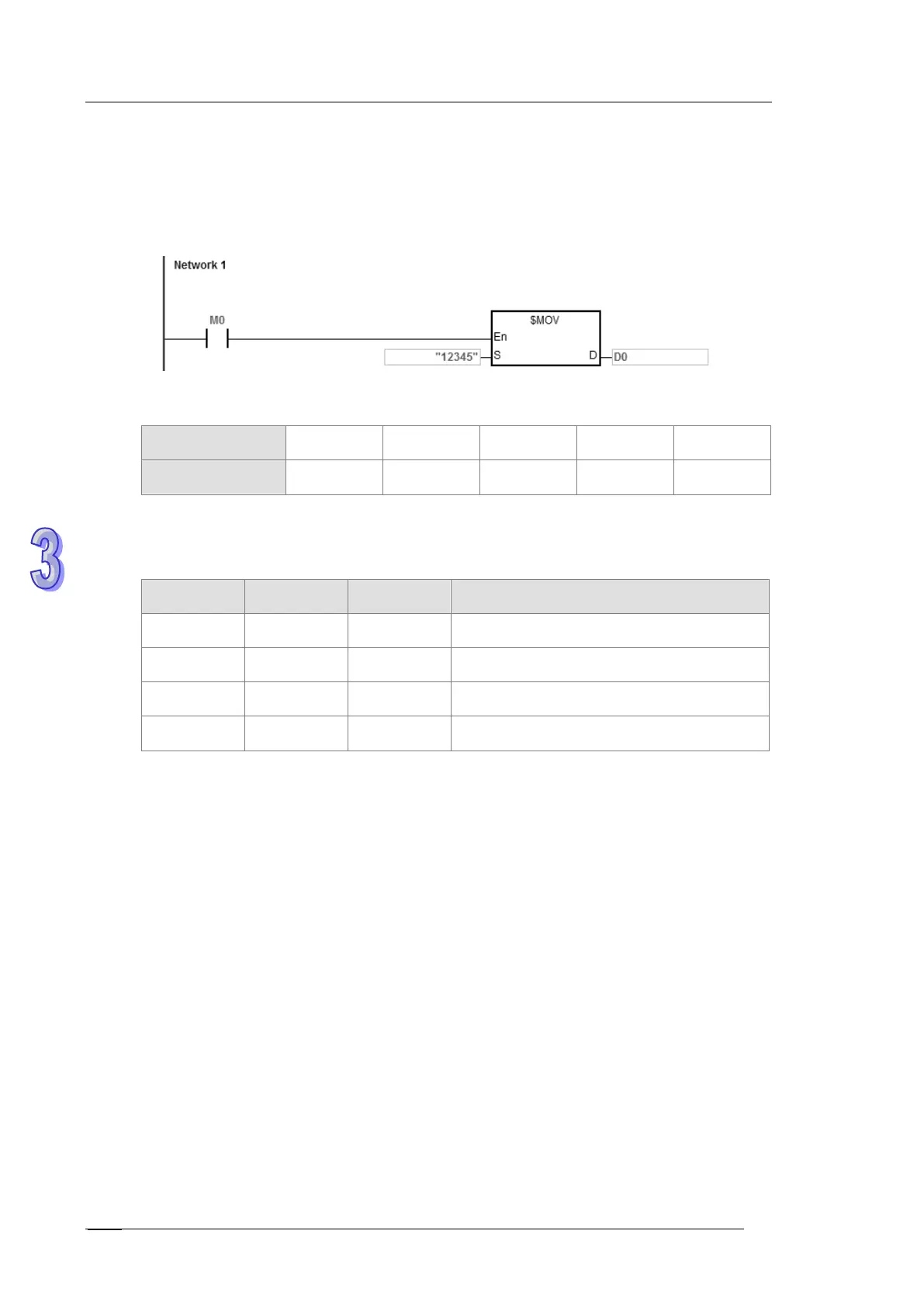

Example 2
Suppose the data in S is the string “12345” (odd number of bytes). When M0 is enabled, the data
12345 is transferred to D0–D3 as follows.
The operand S:
String ‘1’ ‘2’ ‘3’ ‘4’ ‘5’
Hexadecimal value 16#31 16#32 16#33 16#34 16#35
After the instruction is executed, the data in the operand D is as follows.
Device High byte Low byte Note
D0 16#32 16#31 ‘1’=16#31; ‘2’=16#32
D1 16#34 16#33 ‘3’=16#33; ‘4’=16#34
D2 16#00 16#35 The ending code 16#00 is in the high byte.
D3 Unchanged Unchanged

Delta DVP-SS2 Specifications

General

Type	PLC (Programmable Logic Controller)
Input Voltage	24 VDC
Number of Inputs	8
Number of Outputs	6
Programming Software	WPLSoft
Model/Series	DVP-SS2
Communication Ports	RS-232
Output Type	Relay
High-speed Counters	2 points, 10 kHz
Operating Temperature	0°C to 55°C
Humidity	5% to 95% RH, non-condensing
Dimensions	90 mm (H) x 60 mm (W) x 80 mm (D)
