Delta DVP-SS2 User Manual

3. Instruction Set
3-151

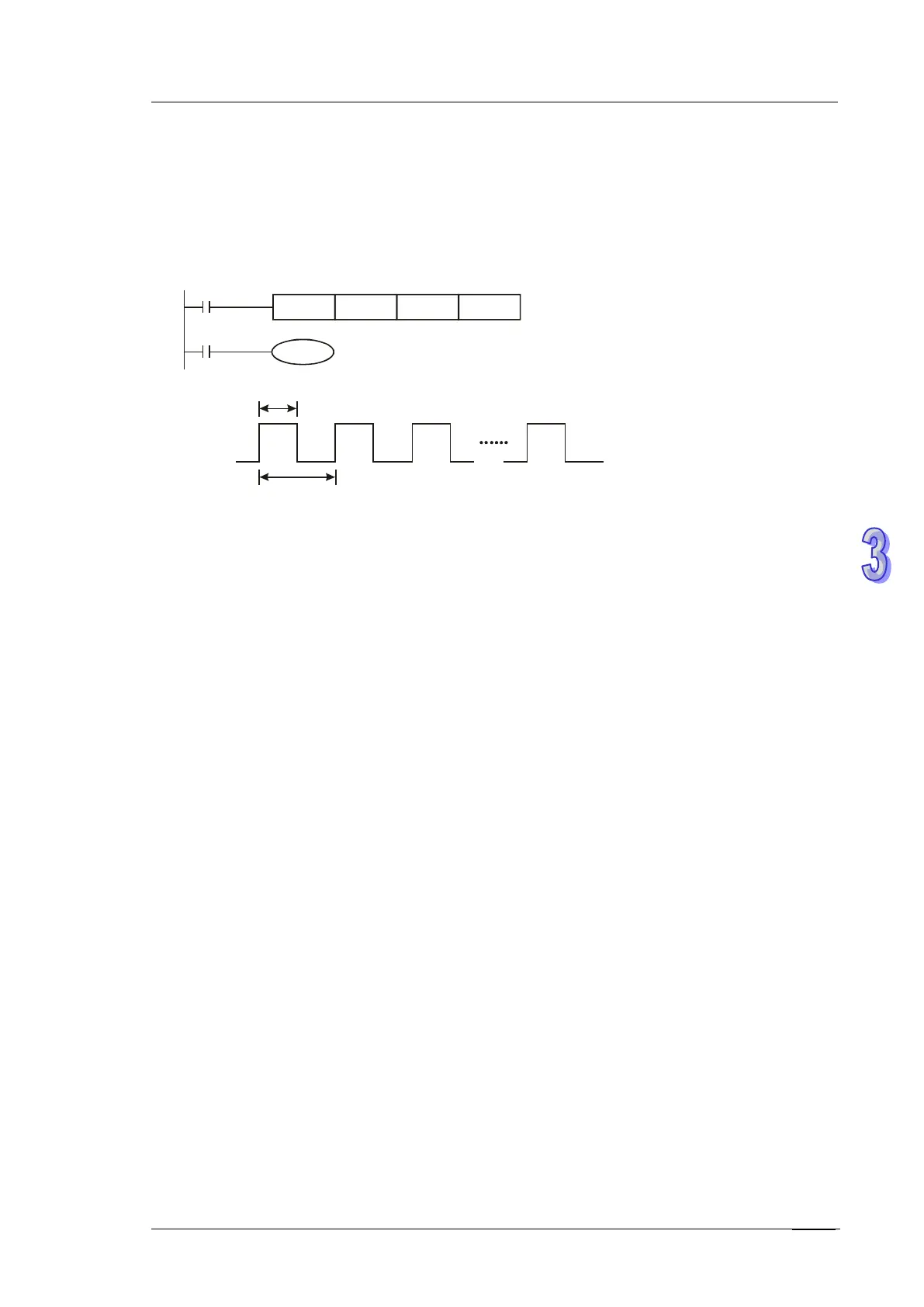

Program Example:
1. When X0 = ON, 200 pulses of 1kHz are generated from output Y0, after the pulse output has
been completed, M1029 = ON to set Y20.
2. When X0 = OFF, pulse output Y0 will immediately stop. When X0 turns ON again, the pulse
output will start from the first pulse.
X0
PLSY K1000 K200 Y0
M1029
Y20
1 2 3 200
Output Y0
0.5ms
1ms
Points to note:
1. Description of associated flags:
M1029: M1029 = ON when Y0 pulse output is completed.
M1030: M1030 = ON when Y1 pulse output is completed. (Not available for EC5)
M1102: M1102 = ON when Y2 pulse output is completed.
M1103: M1103 = ON when Y3 pulse output is completed. (Not available for EC5)
M1321: M1321= ON when Y4 pulse output is completed.
M1322: M1322 = ON when Y6 pulse output is completed.
M1078: Y0 pulse output pause (immediately)
M1079: Y1 pulse output pause (immediately) (Not available for EC5)
M1104: Y2 pulse output pause (immediately)
M1105: Y3 pulse output pause (immediately) (Not available for EC5)
M1310: Y4 pulse output pause (immediately)
M1311: Y6 pulse output pause (immediately)
M1190:
Se t Y0 high speed output as 0.01~10Hz. (Not available for DVP-12SE / EC5)
M1191: Se t Y1 high speed output as 0.01~10Hz. (Not available for DVP-12SE / EC5)
M1192: Se t Y2 high speed output as 0.01~10Hz. (Not available for DVP-12SE / EC5)
M1193: Se t Y3 high speed output as 0.01~10Hz. (Not available for DVP-12SE / EC5)
M1347: Auto reset Y0 when high speed pulse output completed.
M1348: Auto reset Y1 when high speed pulse output completed. (Not available for EC5)
M1524: Auto reset Y2 when high speed pulse output completed.
M1525: Auto reset Y3 when high speed pulse output completed. (Not available for EC5)
