3. Instruction Set

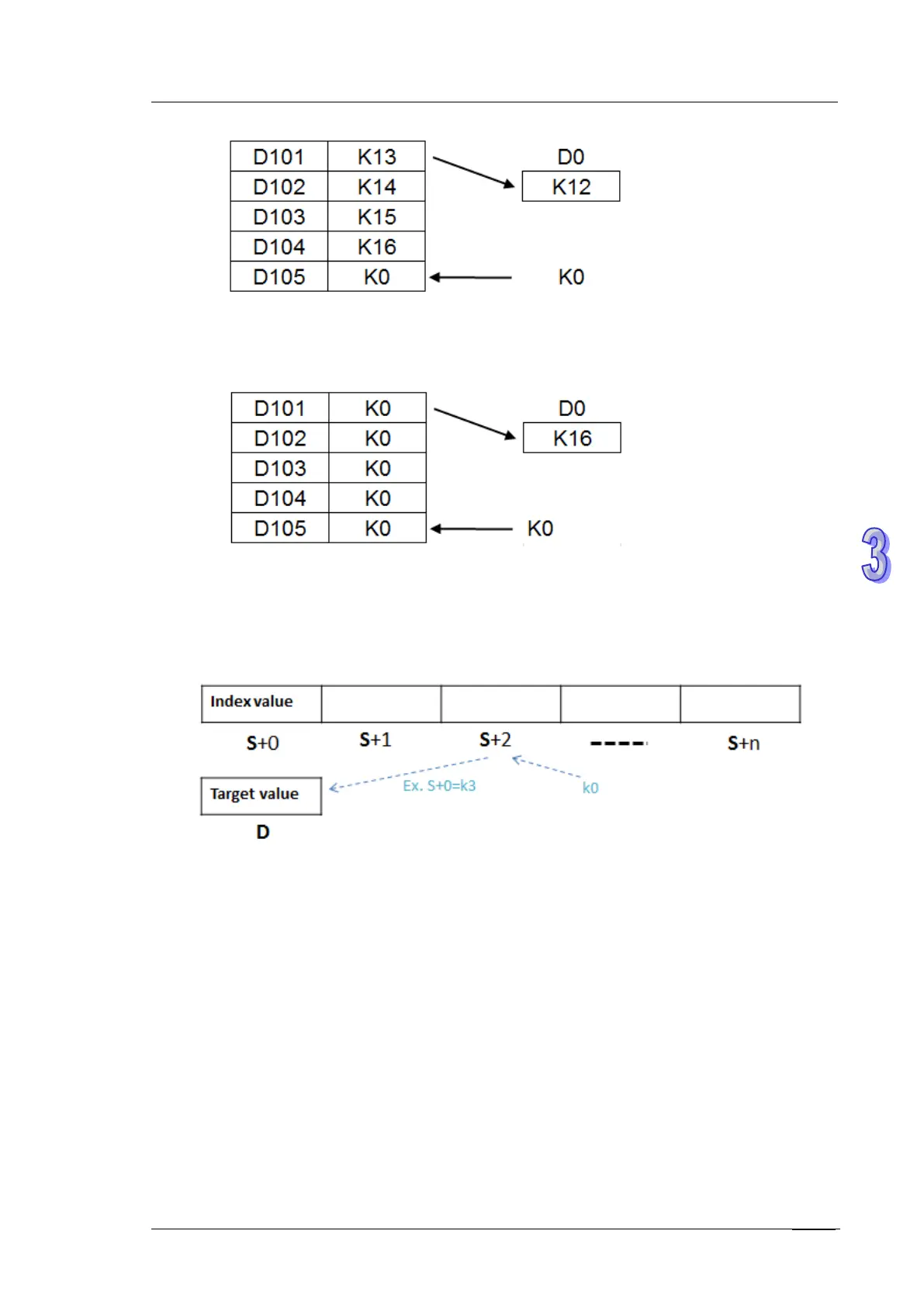

4. Execute the instruciton DTM for 5 times to have the results: D0=K16 and values in
D101~105 are K0.
K33: Read the last written register to the D device (target value) (last in first out).
Diminish the index value (S+0) by 1 and then read and store the data stored from
S+[S+0] to the D device and put K0 to the source value S+[S+0].
Note:
When the value in S+0 is less than 2, it means there is no data to be read/moved and no action will
be taken. When the value in S+0 is bigger than n+1, it means the data is full and no action will be
taken. “No action will be taken” means no error will be displayed nor will the index value (S+0) have
any change.
