DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
-208
Example:
1. If D100=6.

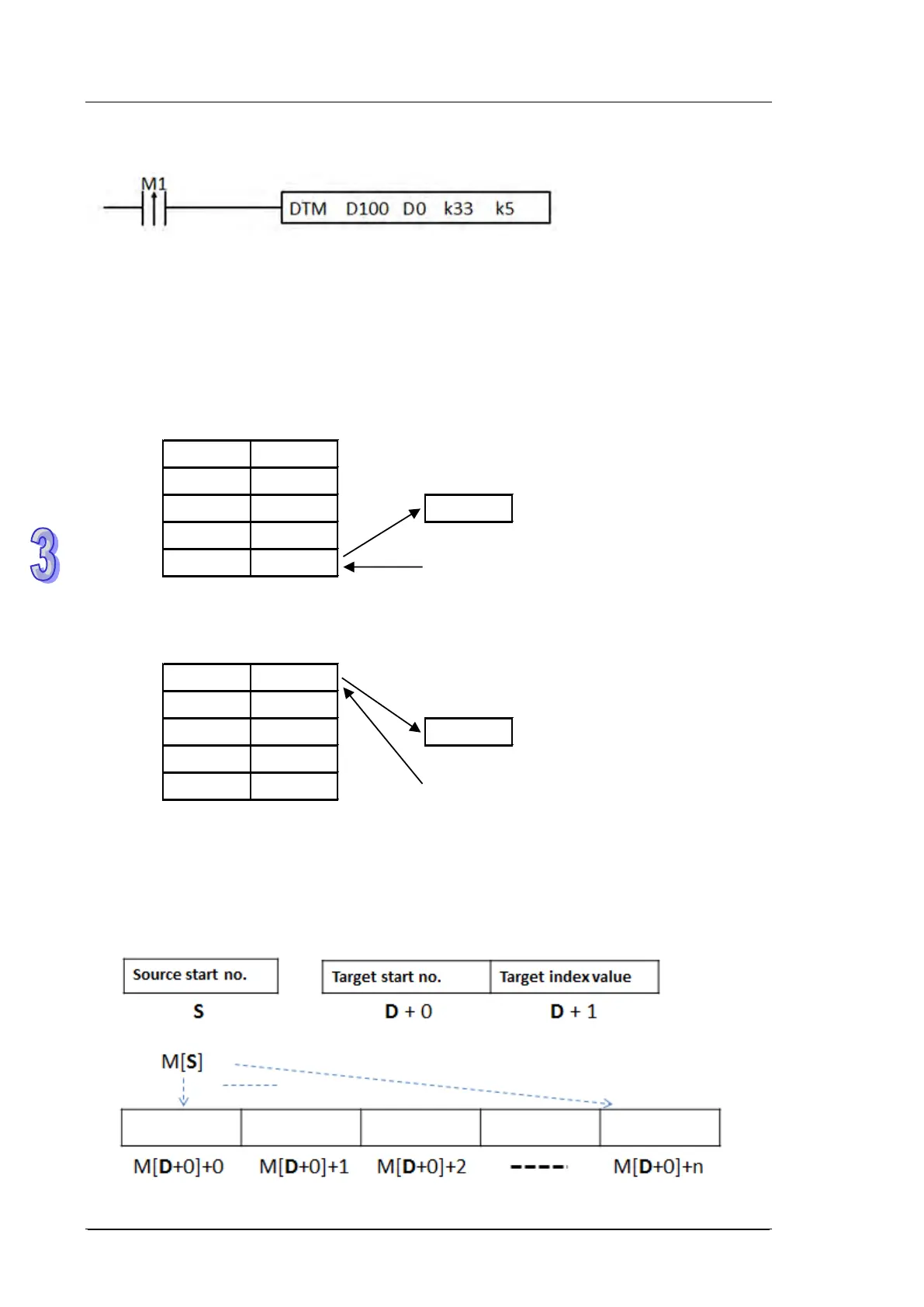

2. If M0 switches OFFïƒ ON, execute the instruction DTM will copy the values stored in D105
to D0.
3. As the image shown below, execute the instruciton DTM to copy the value K16 stored in
D105 to D0 and put K0 to D105.
D101 K12
D102 K13 D0
D103 K1
4 K16
D104 K15
D105 K0 K0
4. Execute the instruciton DTM for 5 times to have the results: D0=K12 and values in
D101~105 are K0.
D101 K0
D102 K0 D0
D103 K0 K1
2
D104 K0
D105 K0 K0
K34: Copy BIT type data to the consecutive registers of the PLC
S: the source start number of the M device
D: the target start number of the M device
Copy the M state from source value stored in S to the M[D+0] (target device) as the target index
value indicated and then accumulate 1 to D+1 (target index value).
