Delta DVP-SS2

3. Instruction Set
3-313
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
92 ANDP Rising-edge series connection
Type
OP
Bit Devices Word devices Program Steps
X
Y
M
S
K
H
KnX
KnY
KnM
KnS
T
C
D
E
F
ANDP: 3 steps
S
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: rising-edge contact to be connected in series
Explanations:
ANDP instruction is used in the series connection of the rising-edge contact.
Program Example:

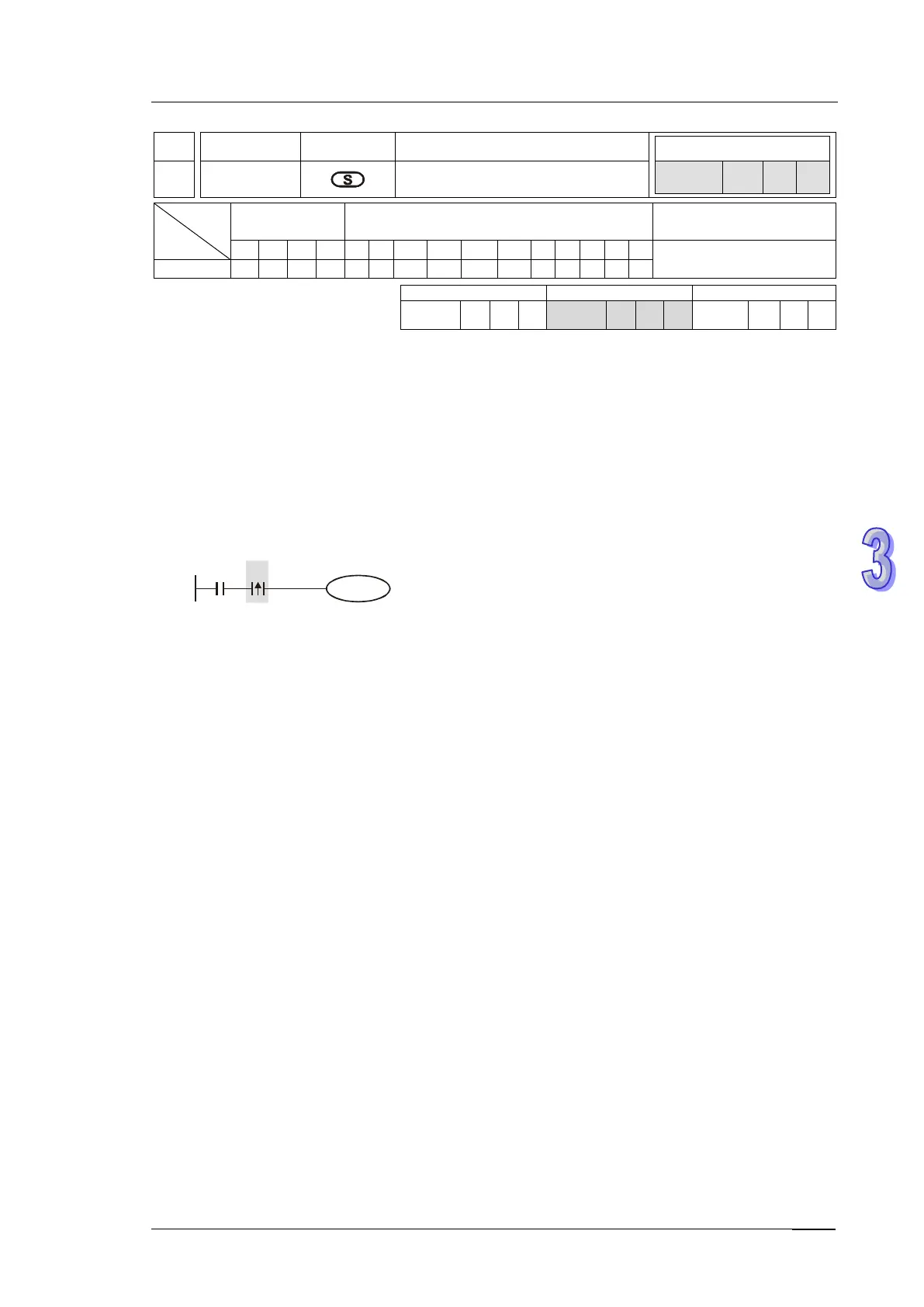

Ladder Diagram:
X1X0
Y1
Instruction Code: Operation:
LD X0 ; Load NO contact of X0
ANDP X1 ; X1 rising-edge contact in series connection
OUT Y1 ; Drive Y1 coil
