DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-314

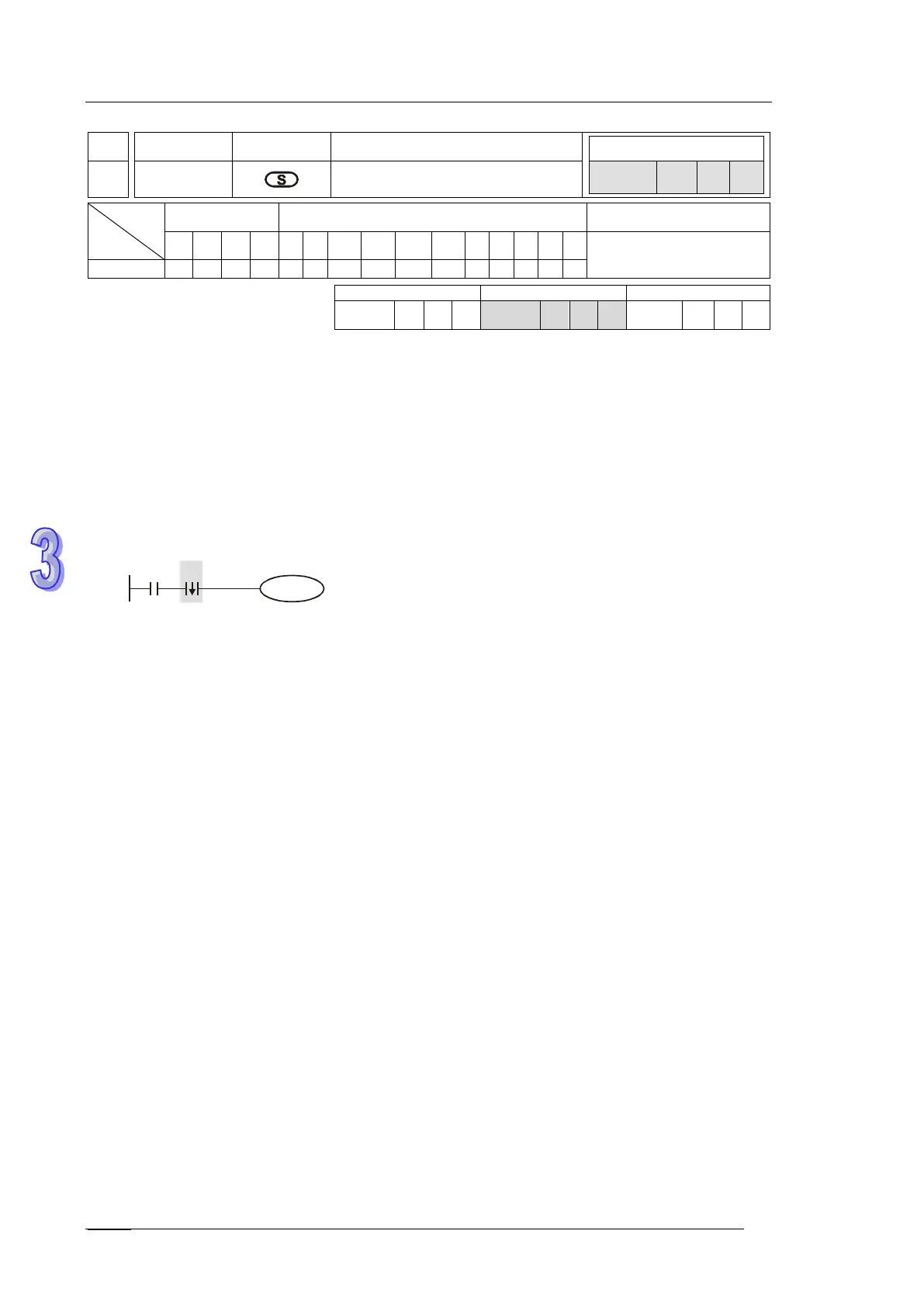

API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
93 ANDF Falling-edge series connection
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
ANDF: 3 steps
S
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: falling edge contact to be connected in series
Explanations:
ANDF instruction is used in the series connection of the falling-edge contact.
Program Example:
Ladder Diagram:
X1X0
Y1
Instruction Code: Operation:
LD X0 ; Load NO contact of X0
ANDF X1 ; X1 falling-edge contact in series connection
OUT Y1 ; Drive Y1 coil
