API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
94 ORP Rising-edge parallel connection
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
ORP: 3 steps
S
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: rising-edge contact to be connected in parallel
Explanations:
ORP instruction is used in the parallel connection of the rising-edge contact.

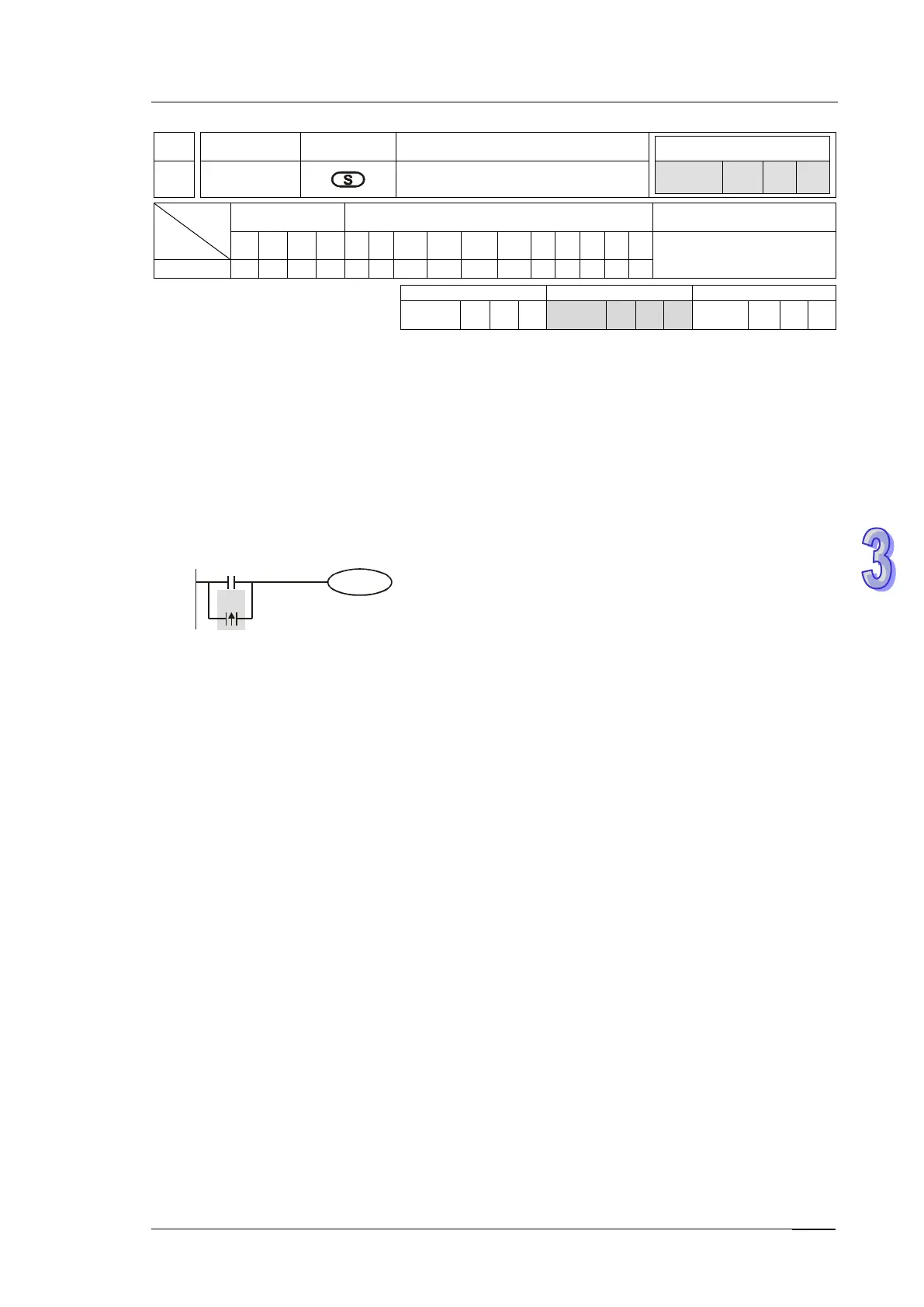

Program Example:
Ladder Diagram:
X0
X1
Y1
Instruction Code: Operation:
LD X0 ; Load NO contact of X0
ORP X1 ; X1 rising-edge contact in parallel connection
OUT Y1 ; Drive Y1 coil
