DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-316

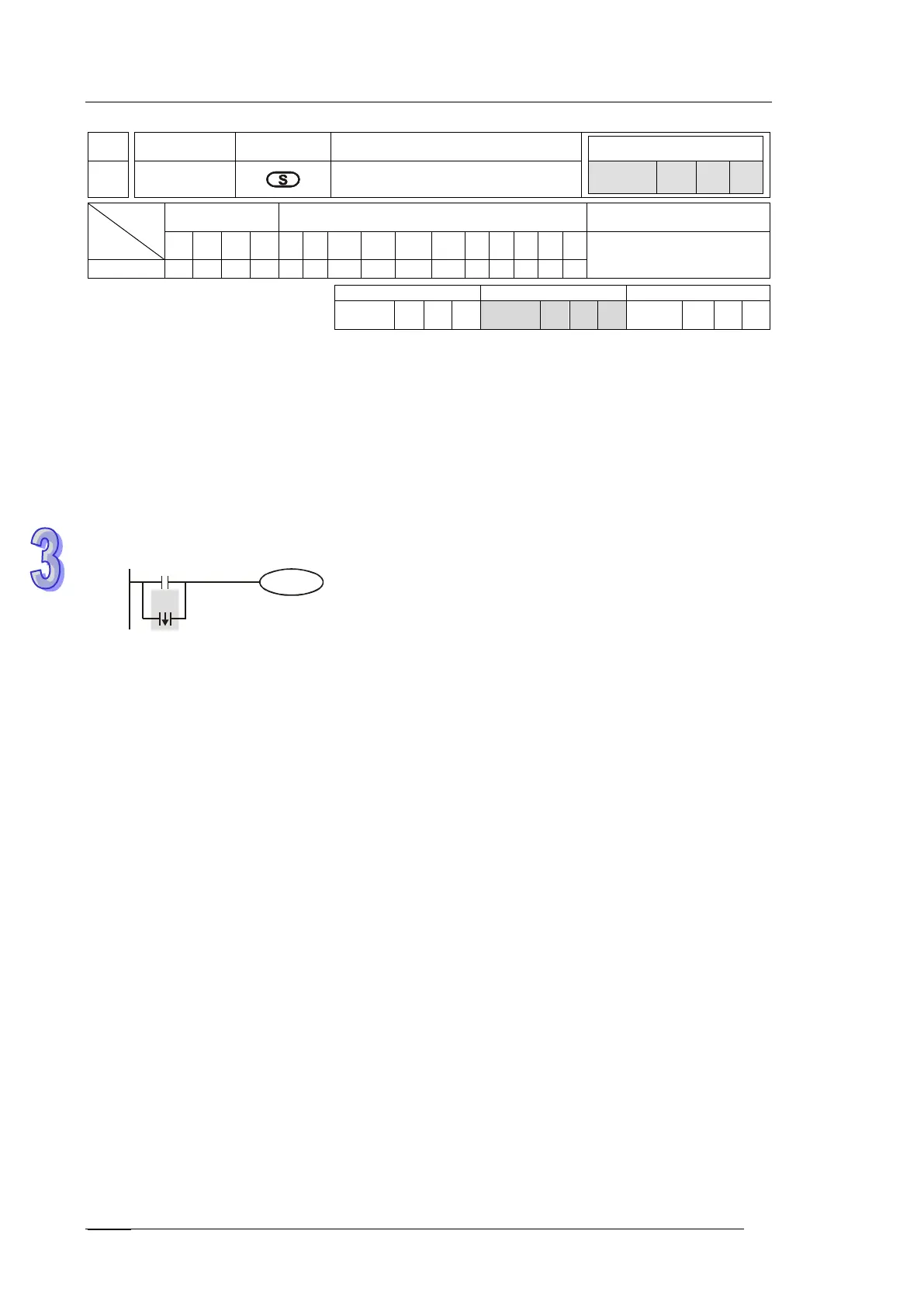

API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
95 ORF Falling-edge parallel connection
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
ORF: 3 steps
S
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: falling-edge contact to be connected in parallel
Explanations:
ORF instruction is used in the parallel connection of the falling-edge contact..
Program Example:
Ladder Diagram:
X0
X1
Y1
Instruction Code: Operation:
LD X0 ; Load NO contact of X0
ORF X1 ; X1 falling-edge contact in parallel connection
OUT Y1 ; Drive Y1 coil
