Delta DVP-SS2 User Manual

3. Instruction Set
3-393
2-6. If the DMV does not reply after the timeout period 100ms, the PLC will set D
2
+2 (Y2) to On (a
communication timeout occurs).
2-7. If the DMV replies with an execption code, the PLC will resend the command to the DMV
automatically, and go back to step 2-3 ~ step 2-5.

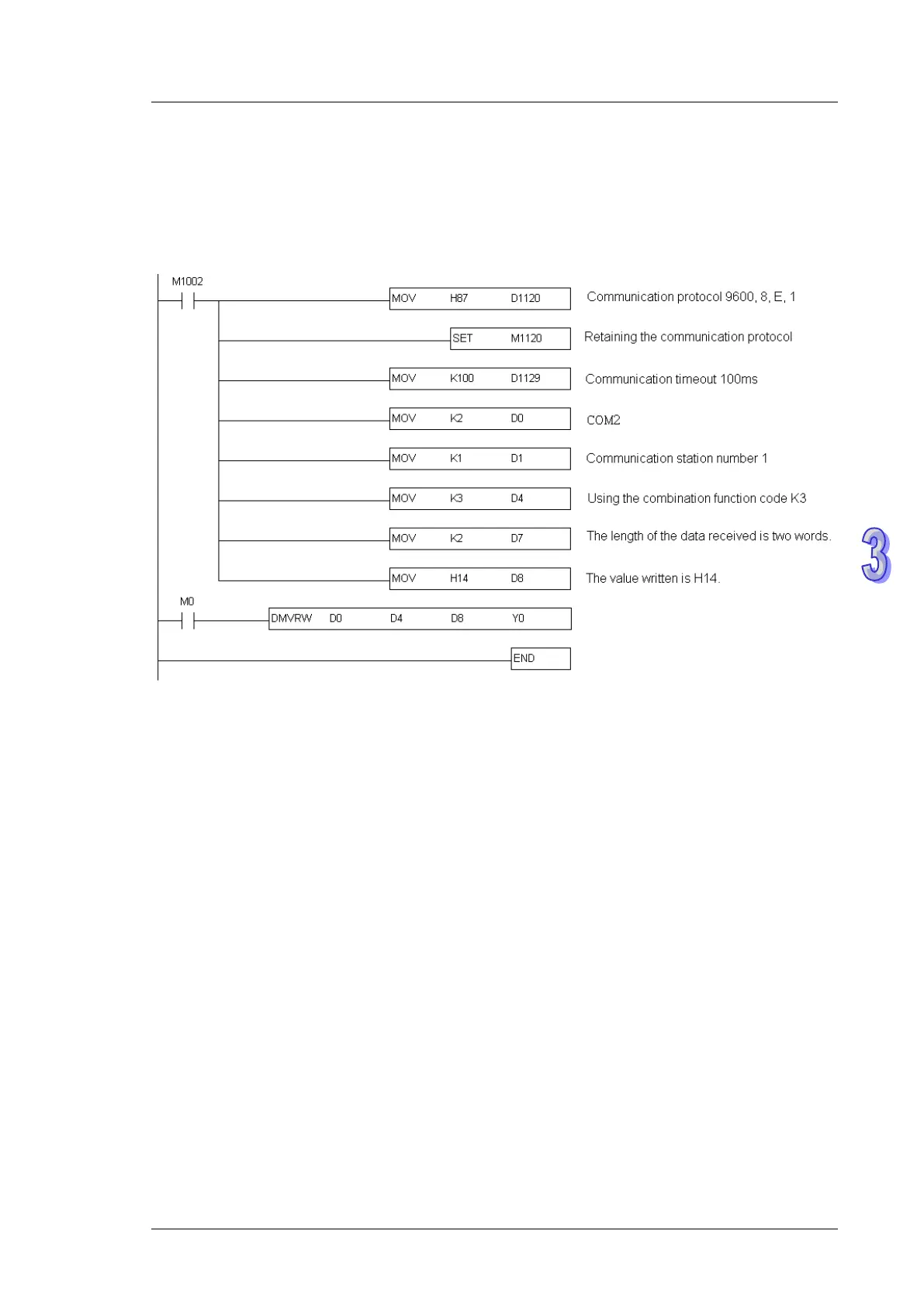

The program in the PLC and the comments are shown below.
Remark: D8 in the example is described below.
3-1. When the first command is sent, the value in D8 indicates a program number. In the example,
program number 20 is used, and therefore H14 (or K20) is written into D8 in advance.
3-2. The the third command is sent, D8 becomes a start device in which data received from the
DMV is stored. In the example, two-word data is read. When the completion flag is ON, the
data read is stored in D8 and D9.

Delta DVP-SS2 Specifications

General

Type	PLC (Programmable Logic Controller)
Input Voltage	24 VDC
Number of Inputs	8
Number of Outputs	6
Programming Software	WPLSoft
Model/Series	DVP-SS2
Communication Ports	RS-232
Output Type	Relay
High-speed Counters	2 points, 10 kHz
Operating Temperature	0°C to 55°C
Humidity	5% to 95% RH, non-condensing
Dimensions	90 mm (H) x 60 mm (W) x 80 mm (D)
