Delta DVP-SS2 User Manual

3. Instruction Set
3-515
3. Observe the results of the first execution:
a) The actual output number 50,600 – specified output number 50,000 = 600
b) 600 x (1/100Hz) = 6s (idle time)
c) 3 seconds are too long. Therefore, increase the percentage value (D1131) to K101.

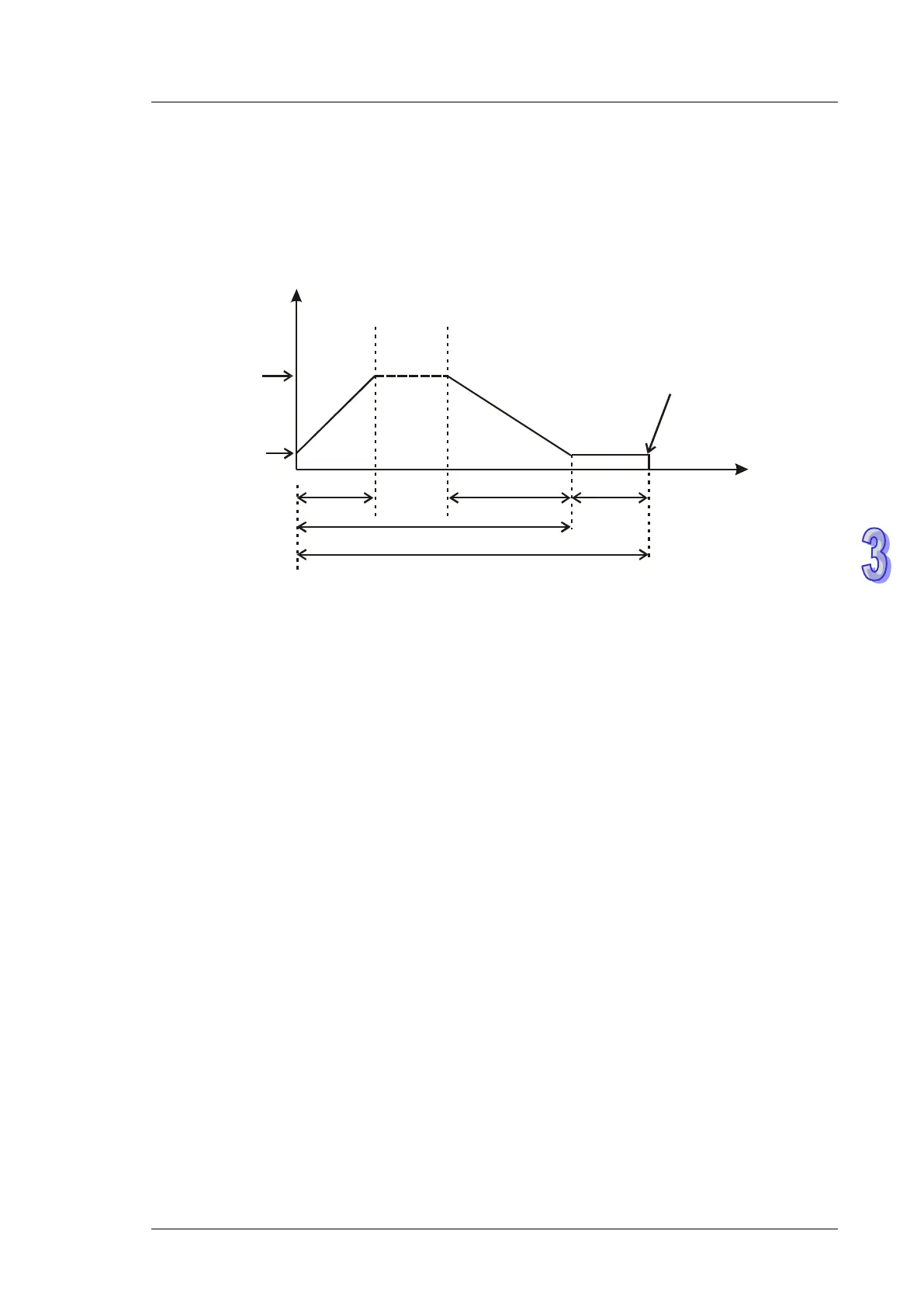

4. Obatin the results of the second execution:
100KHz
D1340
D1348D1343
C243 =K50000
600ms
Frequency
Y0 output stops
Time
Pulse number
Specified number of output pulses: 50,500
Actual number of output pulses (D1030, D1031) = K50,560
5. Observe the results of the second execution:
a) The actual output number 50,560 – specified output number 50,500 = 60
b) 60 x (1/100Hz) = 600ms (idle time)
c) 600ms is an appropriate value. Therefore, set the percentage value (D1131) as K101 to
complete the design.
Points to note:
1. Associated flags:
M1029: CH0 (Y0, Y1) pulse output execution completed.
M1102: CH1 (Y2, Y3) pulse output execution completed.
M1078: M1078 = ON, CH0 (Y0, Y1) pulse output pause (immediate)
M1104: M1104 = ON CH1 (Y2, Y3) pulse output pause (immediate)
M1108: CH0 (Y0, Y1) pulse output pause (ramp down). M1108 = ON during ramp down.
M1110: CH1 (Y2, Y3) pulse output pause (ramp down). M1110 = ON during ramp down.
M1156: Enabling the mask and alignment mark function on I400/I401(X4) corresponding
to Y0.
M1158: Enabling the mask and alignment mark function on I600/I601(X6) corresponding
to Y2.
M1538: Indicating pause status of CH0 (Y0, Y1).M1538 = ON when output paused.
M1540: Indicating pause status of CH1 (Y2, Y3). M1540 = ON when output paused
M1305: Reverse CH0 (Y0, Y1) pulse output direction.
M1305 = ON, pulse output direction
is reversed.
