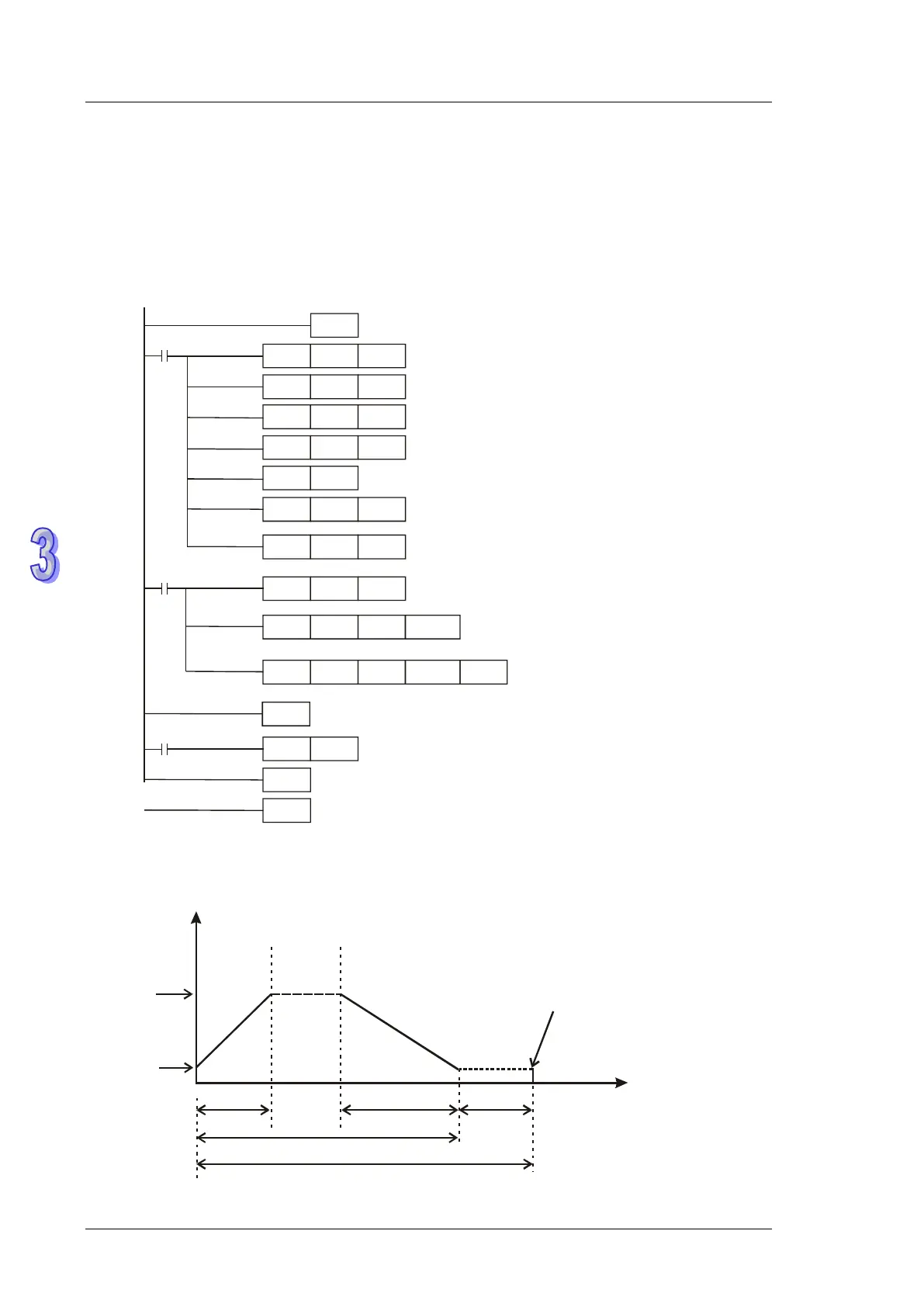

Program Example 2: Immediate stop high-speed pulse output by high speed counter
1. Adopt counter C243 (better to be reset before execution) with AB-phase input from the
encoder. Set target number of feedbacks = 50,000; target frequency = 100kHz; pulse output
device: Y0, Y1 (CH0); start/end frequency (D1340) = 200Hz; ramp-up time (D1343) = 300ms;
ramp-down time (D1348) = 600ms; percentage value (D1131) = 100; present value of output
pulses (D1030, D1031) = 0.
MOV
MOV
MOV
K100
K600
D0
M1002
D1131
D1348
SET
DMOV K0
D1030
EI
FEND
IRET
END
DCLLM
C243
K50000
K100000
Y0
INC
M1534
M0
M1000
I010
K200
D1340
MOV
D1343
MOV
K300 D1343
DMOV K0
C243
DCNT
C243
K9999
DHSCS
C243
K50000
I010
2. Assume the first execution results are as below:
100KHz
D1340
D
1348D1343
C243 =K50000
6s
Frequency
Y0 stops output
Time
Pulse number
Specified number of output pulses: 50,000
Actual number of output pulses (D1030, D1031) = K50,600
