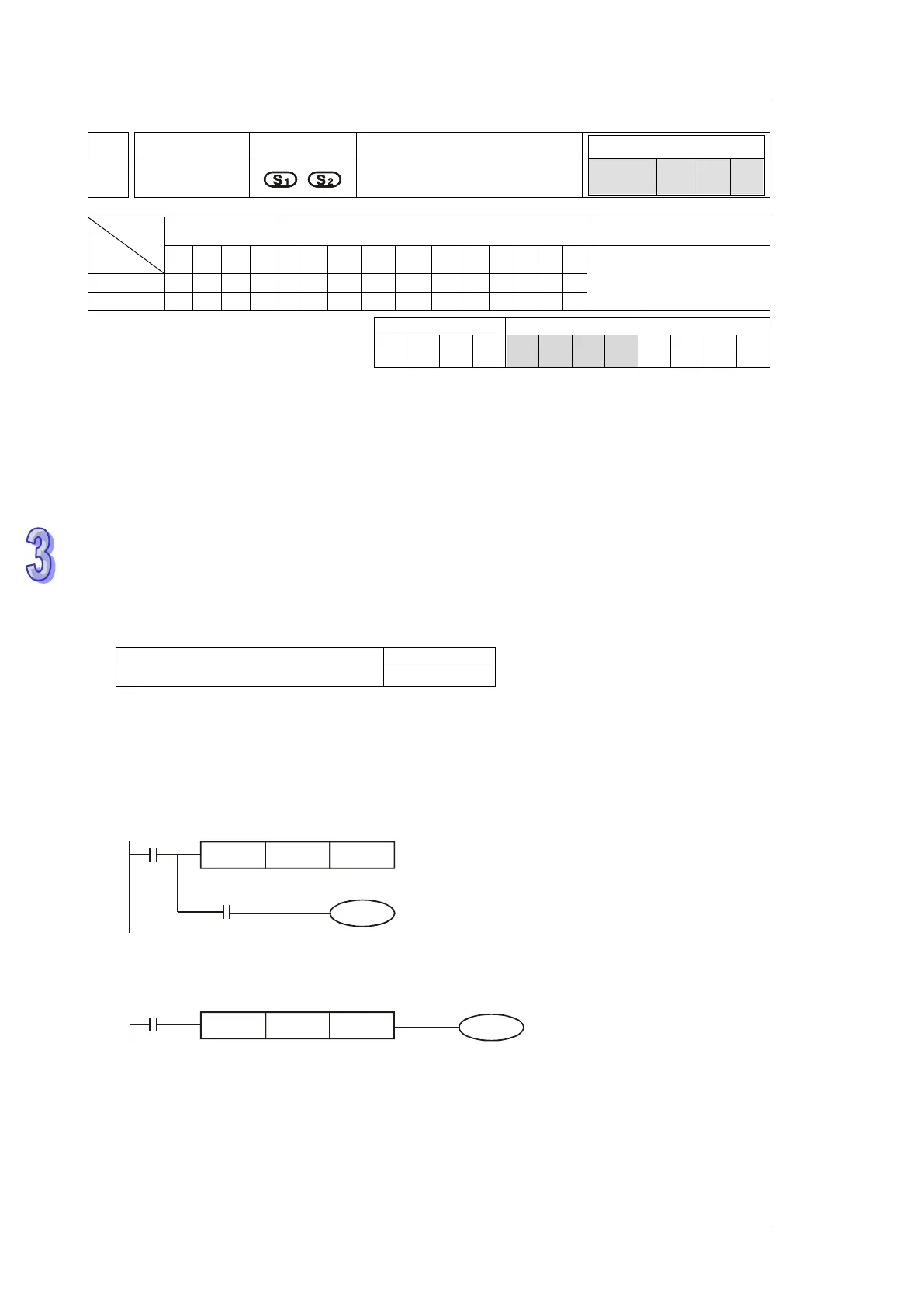

Delta DVP-SS2 User Manual

DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-564
API Mnemonic Operands Function
Controllers
ES2/EX2
SS2
SA2
SE
SX2
258 ATMR
Contact type timer
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
ATMR: 5 steps
S
1
*
S
2
*
*
*
PULSE
16-bit
32-bit
ES2/
EX2
SS2
SA2/
SE
SX2
ES2/
EX2
SS2
SA2/
SE
SX2
ES2/
EX2
SS2
SA2/
SE
SX2
Operands:
S
1
: Timer number (T0~T255) S
2
: Setting value (K0~K32,767, D0~D9,999)。
Explanations:
DVP-ES2/EX2 series PLCs whose version is 3.20/DVP-SS2 series PLCs whose version is
3.00/DVP-SA2 series PLCs whose version is 2.60/DVP-SE series PLCs whose version is
1.20/DVP-SX2 series PLCs whose version is v2.40 (or above) are supported.
When the instruction ATMR is executed, the coil of the timer specified is driven. When the timer
value is equal to the setting value, the state of the normally-open contact is On, and the
normally-closed contact is Off.
Normally-open contact
On
Normally-closed contact
Off
Program Example:
When the normally-open contact X0 is On, the timer T5 begins to measure time intervals. If the timer
value is larger than or equal to K1000, the normally-open contact Y0 will be On.
Ladder diagram (The instruction TMR is used.)
X0
T5
TMR
K1000
T5
Y0
Ladder diagram (The instruction ATMR is used.)
X0
T5
ATMR
K1000
Y0
