Delta DVP-SS2 User Manual

3. Instruction Set
3-571
API Mnemonic Operands Function
Controllers
ES2/EX2
SS2
SA2
SE
SX2

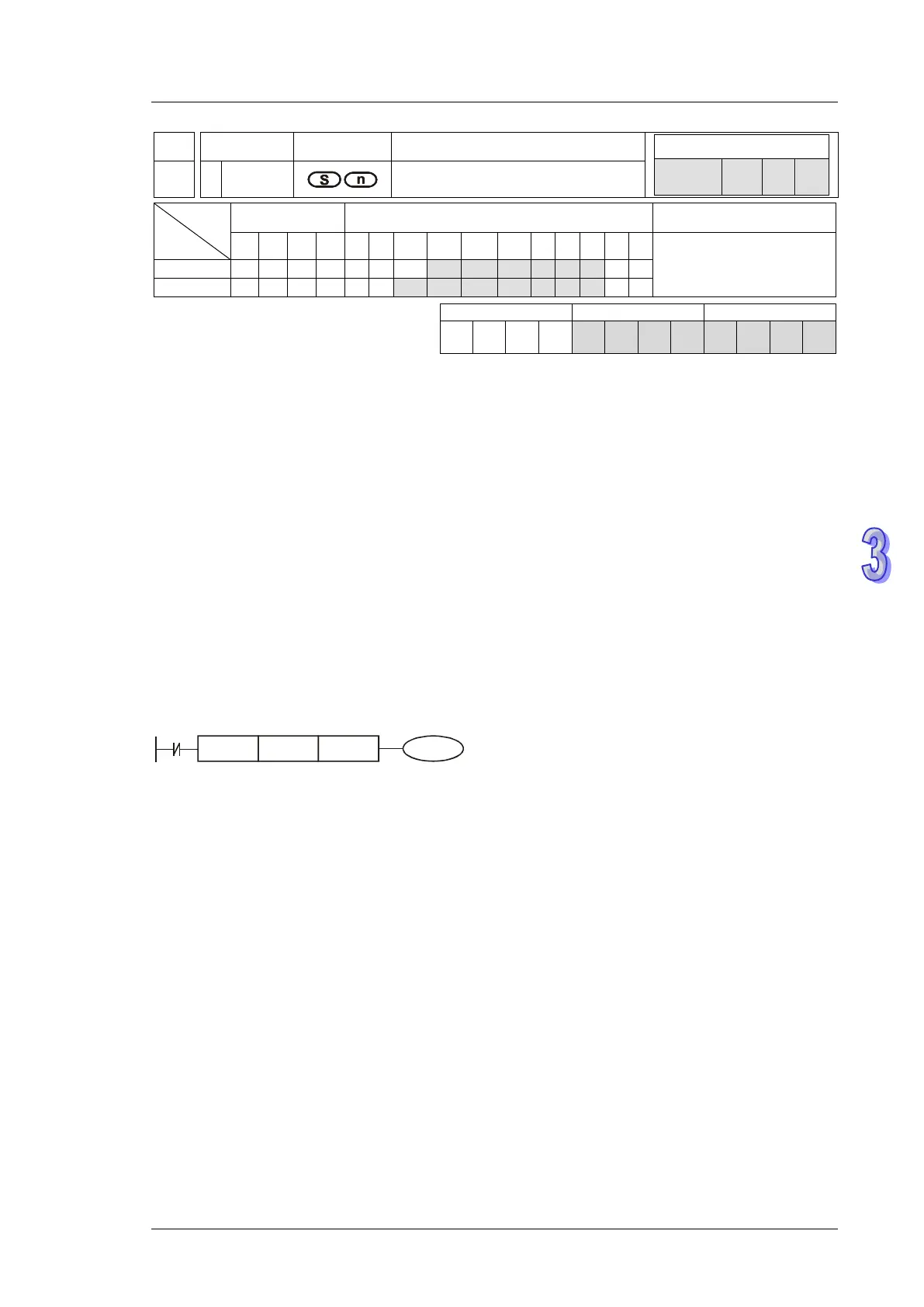

272 D BANI
Connect NC Contact in Series by
Specified Bit
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
BANI: 5 steps
DBANI: 9 steps
S
*
*
*
*
*
*
n
*
*
*
*
*
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/
EX2
SS2
SA2/
SE
SX2
ES2/
EX2
SS2
SA2/
SE
SX2
ES2/
EX2
SS2
SA2/
SE
SX2
Operands:
S: Reference source device n: Reference bit
Explanations:
1. For ES2/EX2 models, only V1.20 or above supports the function
2. Available range for the value in operand n: K0~K15 for 16-bit instruction; K0~K31 for 32-bit
instruction.
BANI instruction is used to connect NC contact in series, whose state is defined by the reference bit
n in reference device D, i.e. if the bit specified by n is ON, the NC contact will be ON, and vice
versa.
Program Example:
X1
BANI D0 K0
Y0
Instruction: Operation:
LDI X1 Load NC contact X1
BANI D0 K0 Connect NC contact in series
, whose state is defined by
bit0 of D0
OUT Y0 Drive coil Y0
