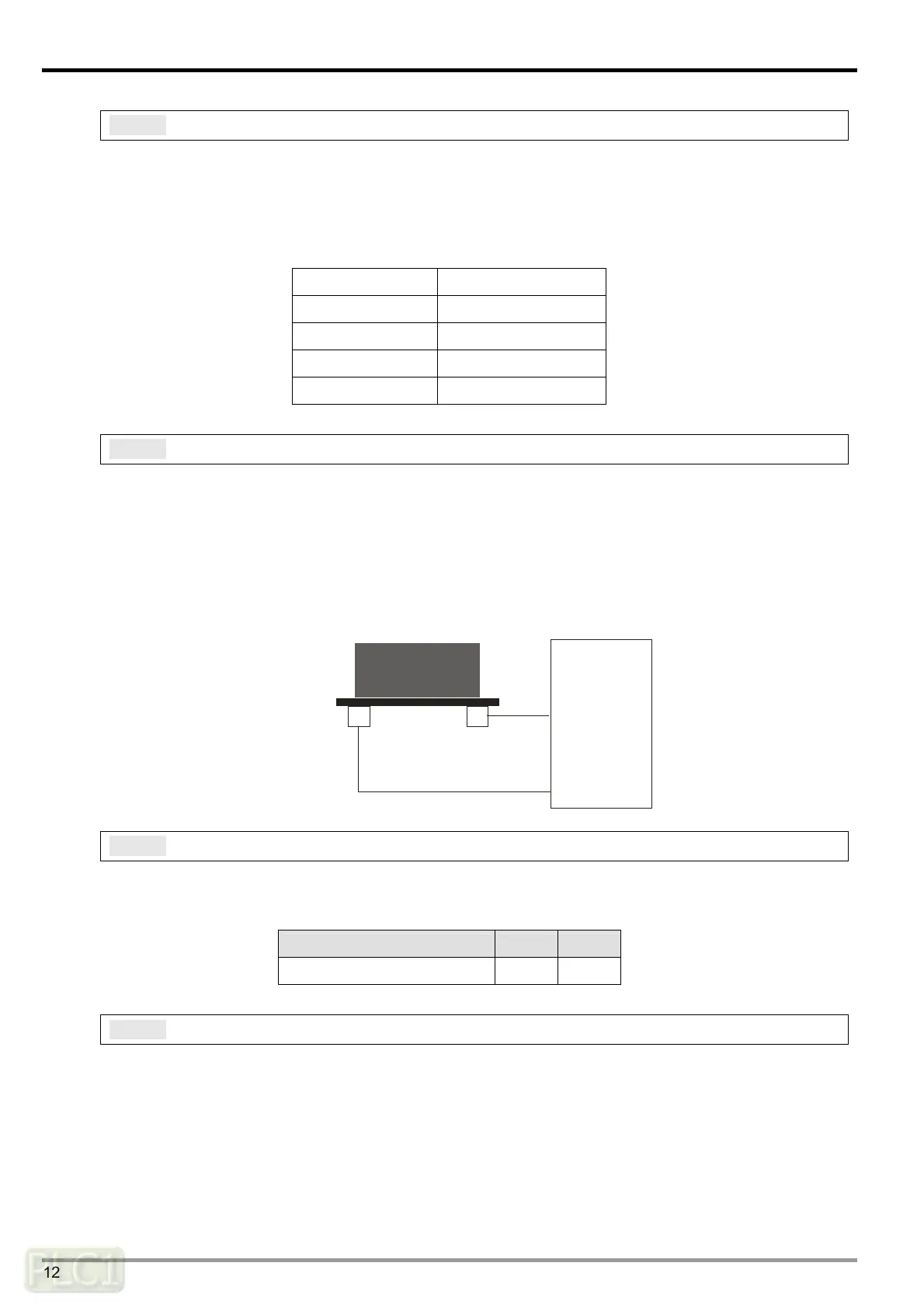

Load Cell Module DVP02LC-SL
DVP-PLC Operation Manual
12
CR#3: Reaction time for measurement
Explanations:
The reaction time refers to how long you sample once. The shorter the reaction time, the shorter the
filtering time, bringing forth less stable measured values. However, the longest the reaction time, the
most stable measured values you will acquire.
Mode 0: H’0000 2 ms
Mode 1: H’0001 10 ms
Mode 2: H’0002 20 ms
Mode 3: H’0003 40 ms
Mode 4: H’0004 80 ms (Default)
CR#4: Average value of all channels
Explanations:
The average values of CH1 and CH2 are summed up and equalized.
The average value of all channels = (CH1 average value + CH2 average value) ÷ 2
If you use 2 load cells to measure the same object, you can read the average value of all channels to
be the measured value.
DVP02LC-SL
CH1
CH2
Load cell (1)
Load cell (2)
Object to be measure
CR#6: CH1 to CH2 read tare weight
Explanations:
You can set up the tare weight yourself, or read the present average value as the tare weight value.
bit15 ~ bit2 bit1 bit0
Reserved CH2 CH1
CR#7: CH1 to CH2 gross/net weight
Explanations:
You can choose to presently display the gross weight or net weight. The channel that is not used can
be disabled.
