Load Cell Module DVP02LC-SL
DVP-PLC Operation Manual
32

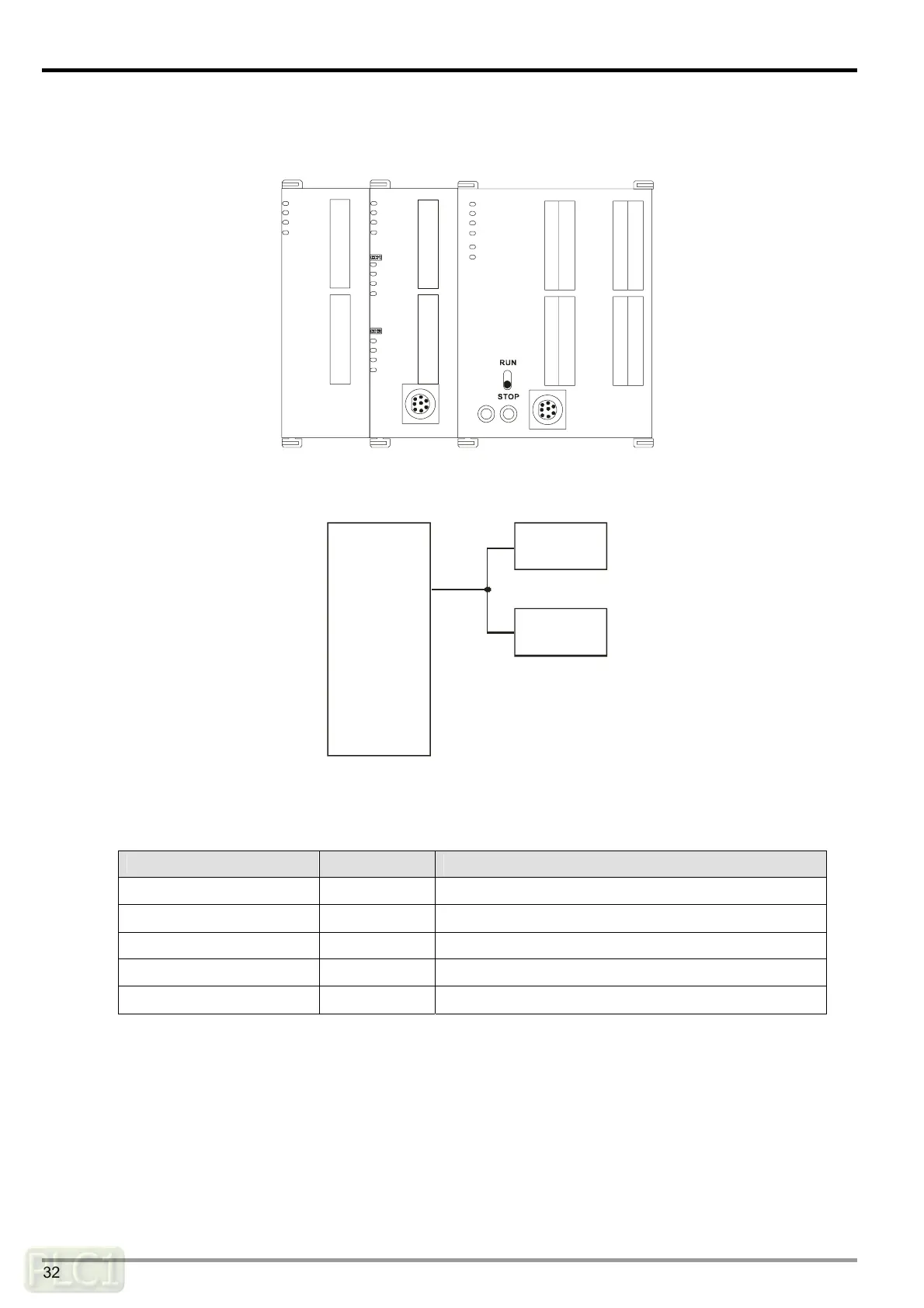

 Hardware Wiring
y Connecting DVP20SX2 with the two modules:
DVP20SX
DVP02LC
DVP04DA
y Wiring for load cell: Connect two 4-wire load cells in parallel, and then to CH1 on DVP02LC-SL.
CH1
CH2
DVP02LC
Load cell
Load cell
 Setting up Parameters
y Parameters for DVP02LC-SL:
Parameter Set value Explanation
Eigenvalue 2 (mV/V) 2 mV/V is the eigenvalue spec. for the load cell.
Measuring time 10 (ms) --
CH1 average times 50 --
CH1 max. weight 32,767 The max. weight is limited to 32,767.
CH2 net or gross weight Disabled CH2 function is disabled.
Note: Parameters that are not set up will use the software default setting.
y Correction by software
1. Set the eigenvalue (characteristic value) of the load cell to 2 mV/V and the measuring time to
10 ms.
