Load Cell Module DVP02LC-SL
DVP-PLC Operation Manual
33

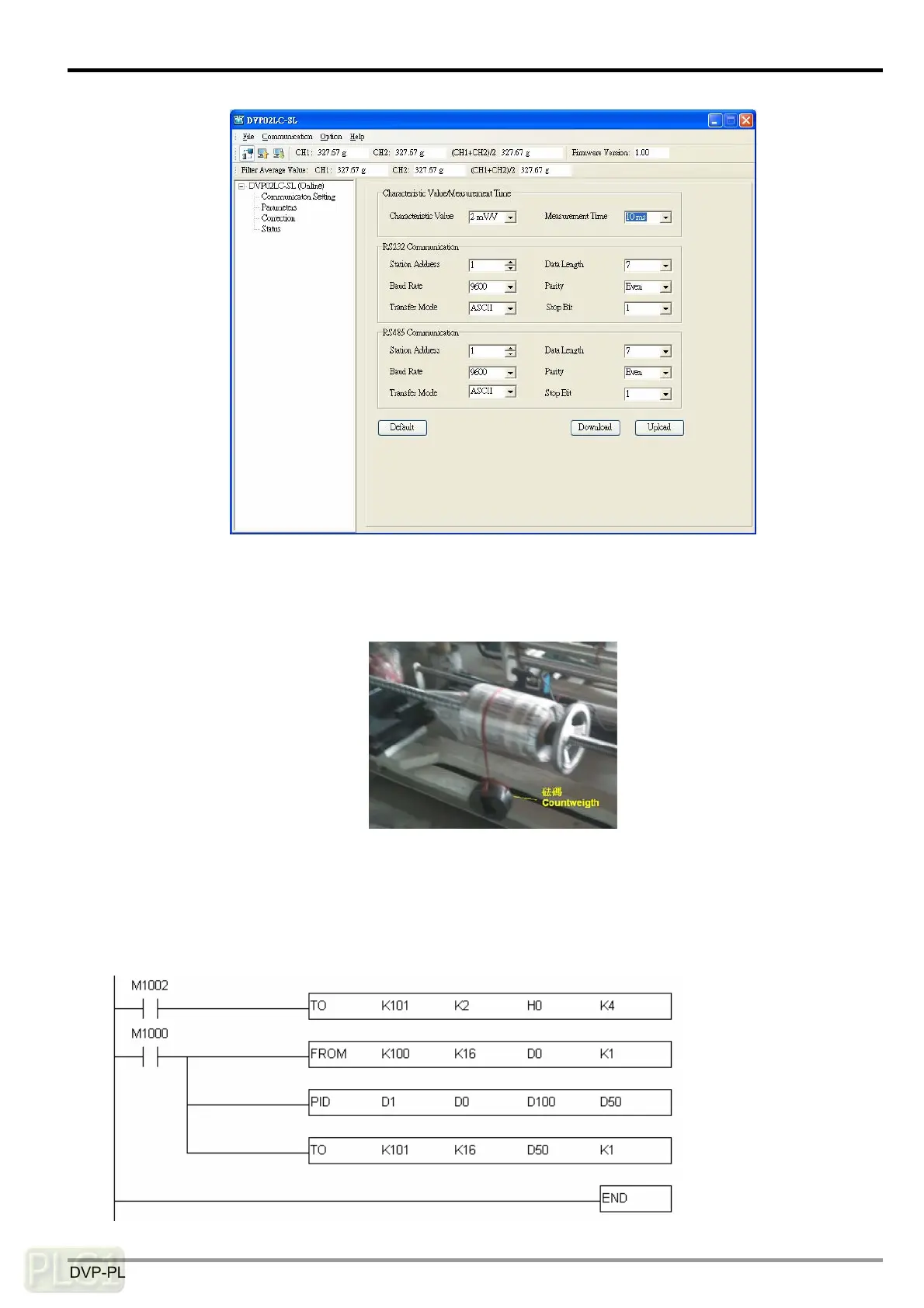

2. Set up also the average times and maximum weight. Due to that we connect two load cells in
parallel and connect them to a single channel here, we have to disable CH2.
3. The actual use of a weight for the correction.
PLC Program
In actual operation, DVP20SX2 is responsible for reading the average value from DVP02LC-SL for PID
operation and outputting the operated value to DVP04DA-SL for voltage output to control the running
speed of the material feeding motor.
