DVP-ES3 Series Operation Manual
6-20

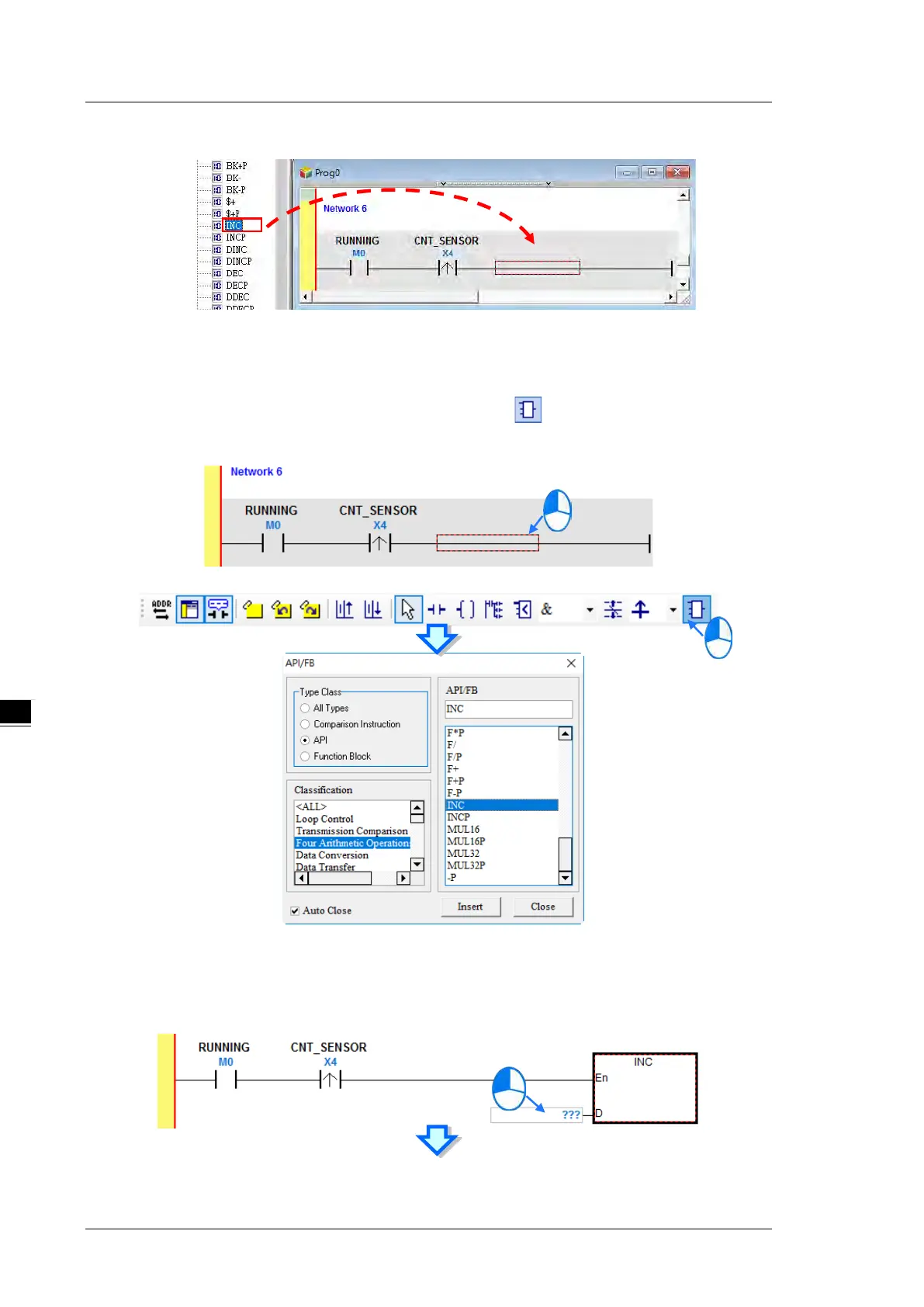

Click the instruction (INC in this example) that you want to insert, and then drag it to the desired position.
Method 3
Click the position where you want to insert an instruction, click on the toolbar, select the instruction
(INC in this example) to insert in the API/FB dialog box, and then click Insert.
After you insert the instruction, assign a device address to the operand, and write the program shown
below.
To Next Page
