Delta DVP48ES300T

Chapter 4 Installing Hardware
4-23
4_

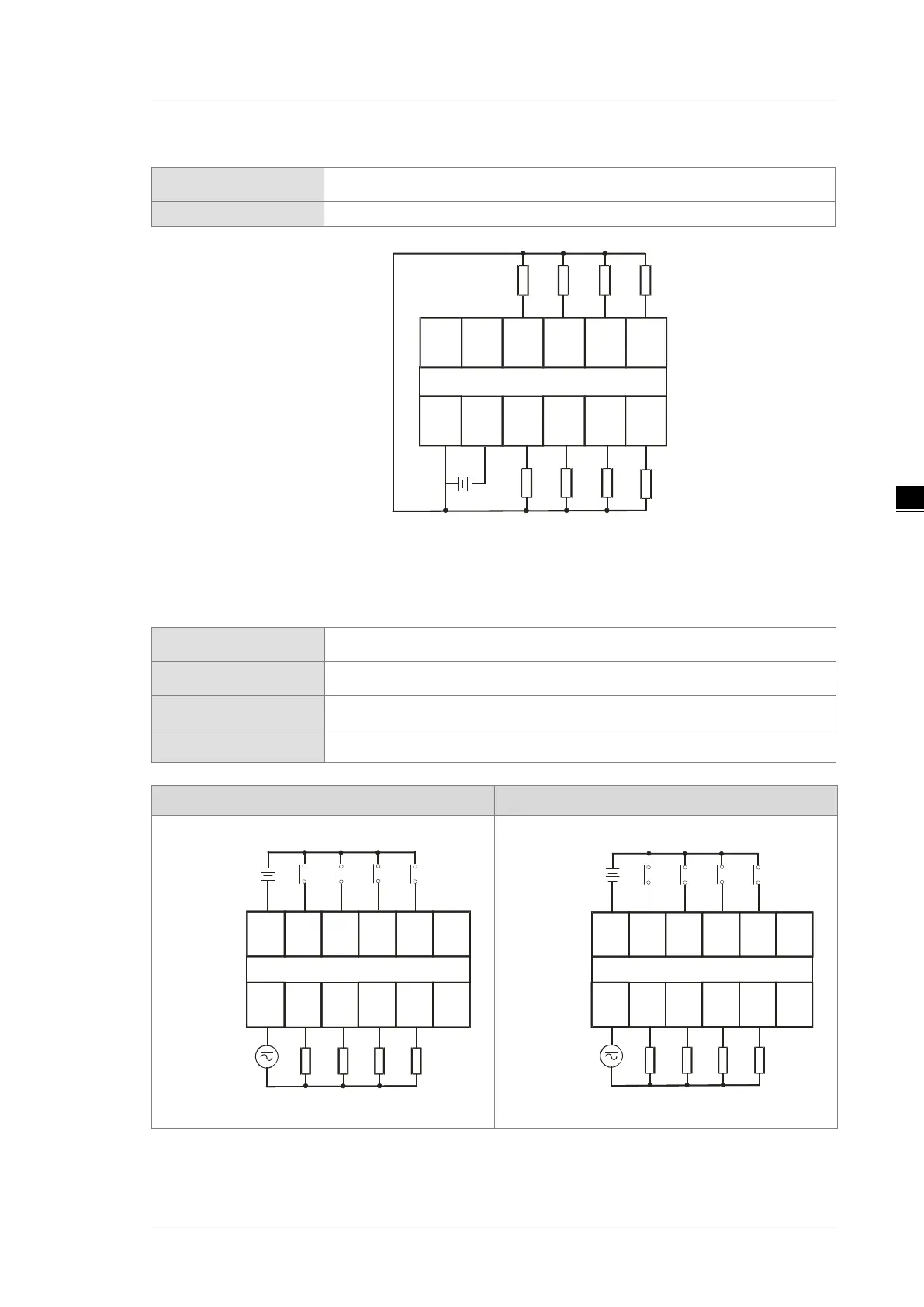

4.7.3 Wiring DVP08XN211T
Output form
Transistor-T (sinking)
Voltage specifications 5 to 30 VDC, 0.5A/output, 4A/COM
OUT
NC NC Y1 Y2 Y3
UP Y4 Y5 Y6 Y7
DVP08XN211T ( 8DO)
Y0
ZP
Note: You need to add external power supply 24 VDC (-15% ~ +20%) for UP and ZP; power consumption is up
to 10 mA.
4.7.4 Wiring DVP08XP211R
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
Sinking input and relay output Sourcing input and relay output
NC
C0 NC
DVP08XP211R ( 4 DI/4DO)
OUT
Y0 Y1 Y2 Y3
NC
NC
IN
S/S X0 X1 X2 X3
NC
C0 NC
DVP08XP211R ( 4 DI/4DO)
OUT
Y0 Y1 Y2 Y3
NC
NC
IN
S/S X0 X1 X2 X3
