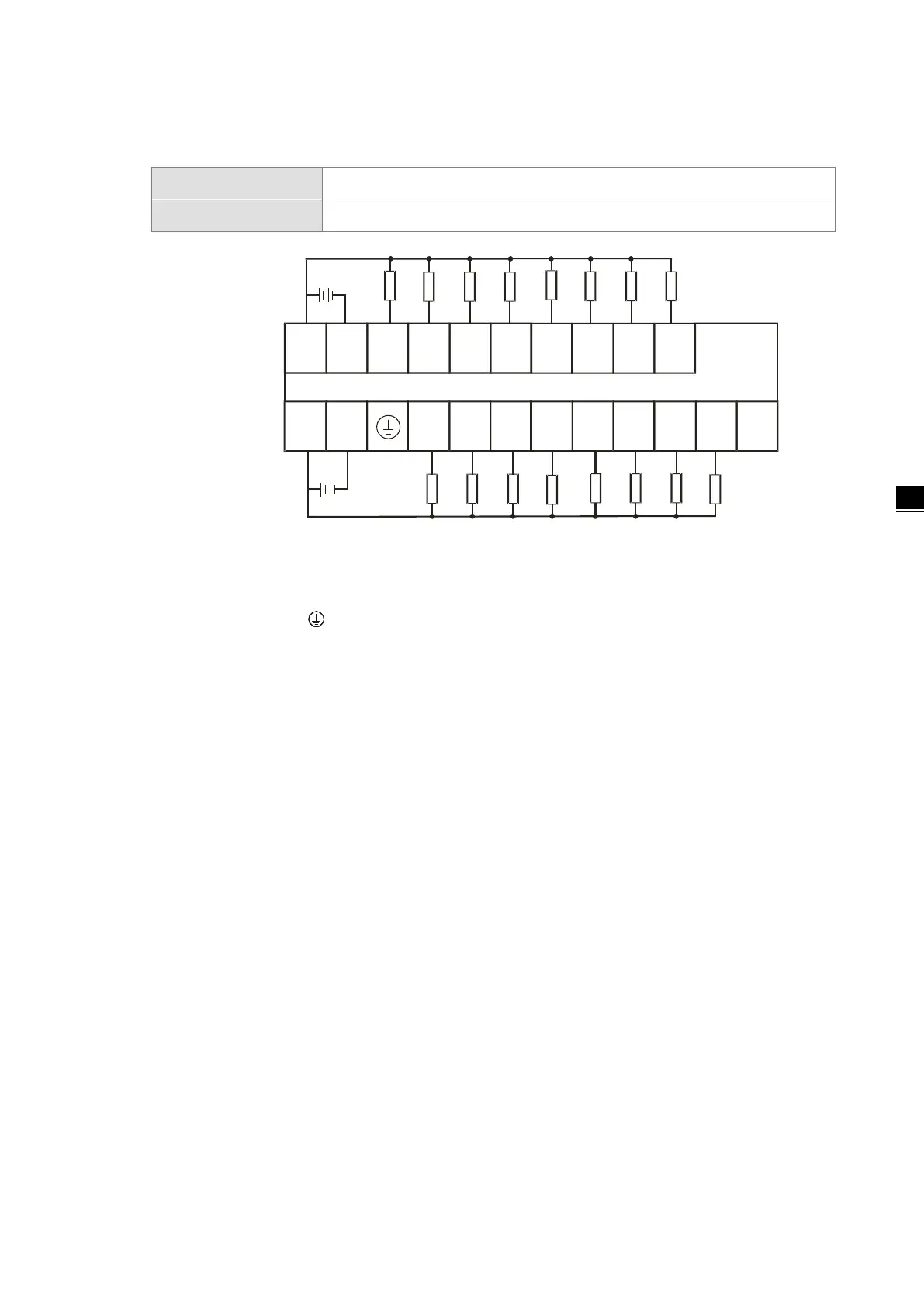

4.7.8 Wiring DVP16XN211T
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
OUT
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17
DVP16XN211T ( 16DO)
NC
UP0 ZP0
UP1 ZP1
Note:
1. You need to add external power supply 24 VDC (-15% ~ +20%) for UP0, ZP0 and UP1, ZP1; power
consumption is up to 30 mA.
2. Connect the terminal to ground.
