DVP-ES3 Series Operation Manual
6-26

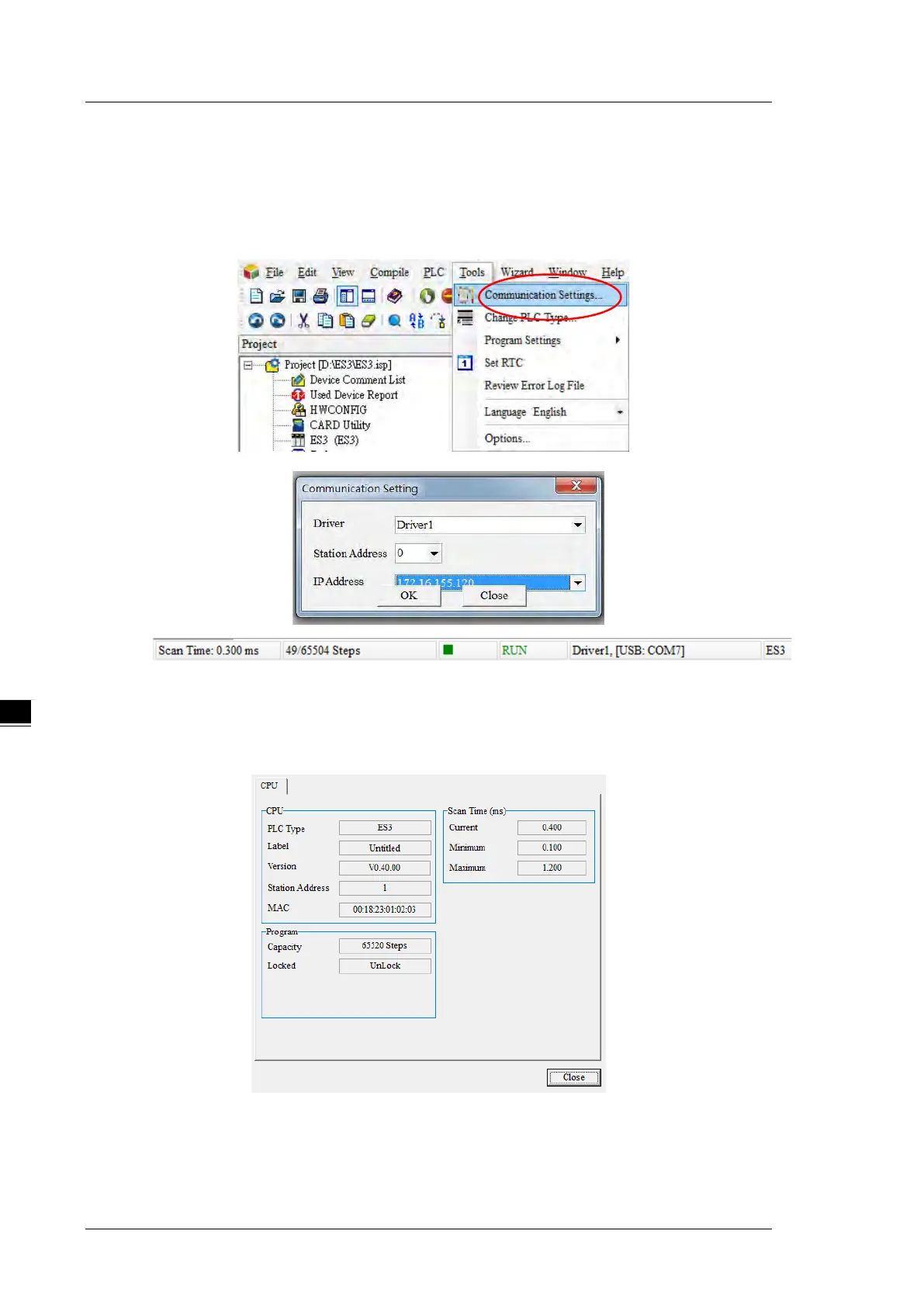

(7) Click the driver you created in the COMMGR window, and then click Start. Start ISPSoft, and then on the
Tools menu, click Communication Settings…. In the Communication Setting dialog box, select the
driver you created in the Driver list, select 0 in the Station Address list, and then click OK. The driver
information displays in the ISPSoft status bar.
(8) On the PLC menu, click System Information. ISPSoft retrieves related information from the PLC. If the
computer communicates with the CPU module normally, the related information retrieved from the PLC
displays in the System Information dialog box.
