Delta DVP48ES300T User Manual

Chapter 8 Hardware Configuration
8-9
8_
 I601 Timer interrupt Setting Time Base
Sets the interval for triggering the 1601 timer interrupt. This function is used together with Timer Interrupt 0.
 I602 Timer interrupt Setting Time Base
Sets the interval for triggering the 1602 timer interrupt. This function is used together with Timer Interrupt 1.
 I603 Timer interrupt Setting Time Base
Sets the interval for triggering the 1603 timer interrupt. This function is used together with Timer Interrupt 2.
 I604 Timer interrupt Setting Time Base
Sets the interval for triggering the 1604 timer interrupt. This function is used together with Timer Interrupt 3.

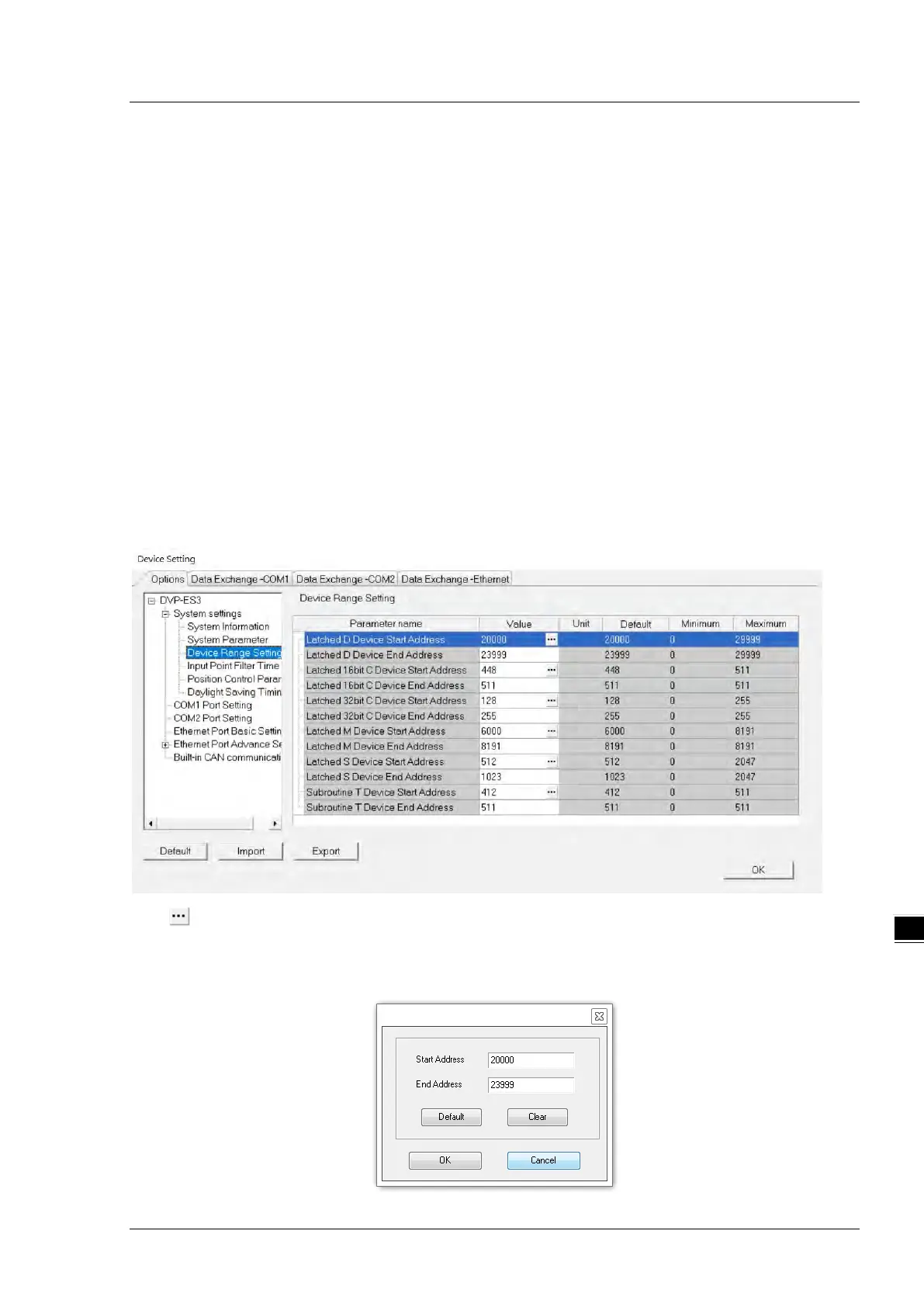

Device Range Setting
The parameters on
Device Range Setting
table are shown in the following window.
Click to open the parameter dialog box to set the start and end address. In the dialog box, click Default to restore
the setting to the default values; click Clear to clear the set values; click OK to save the values and close the dialog
box; click Cancel to discard the setting and close the dialog box.
