Chapter 8 Hardware Configuration

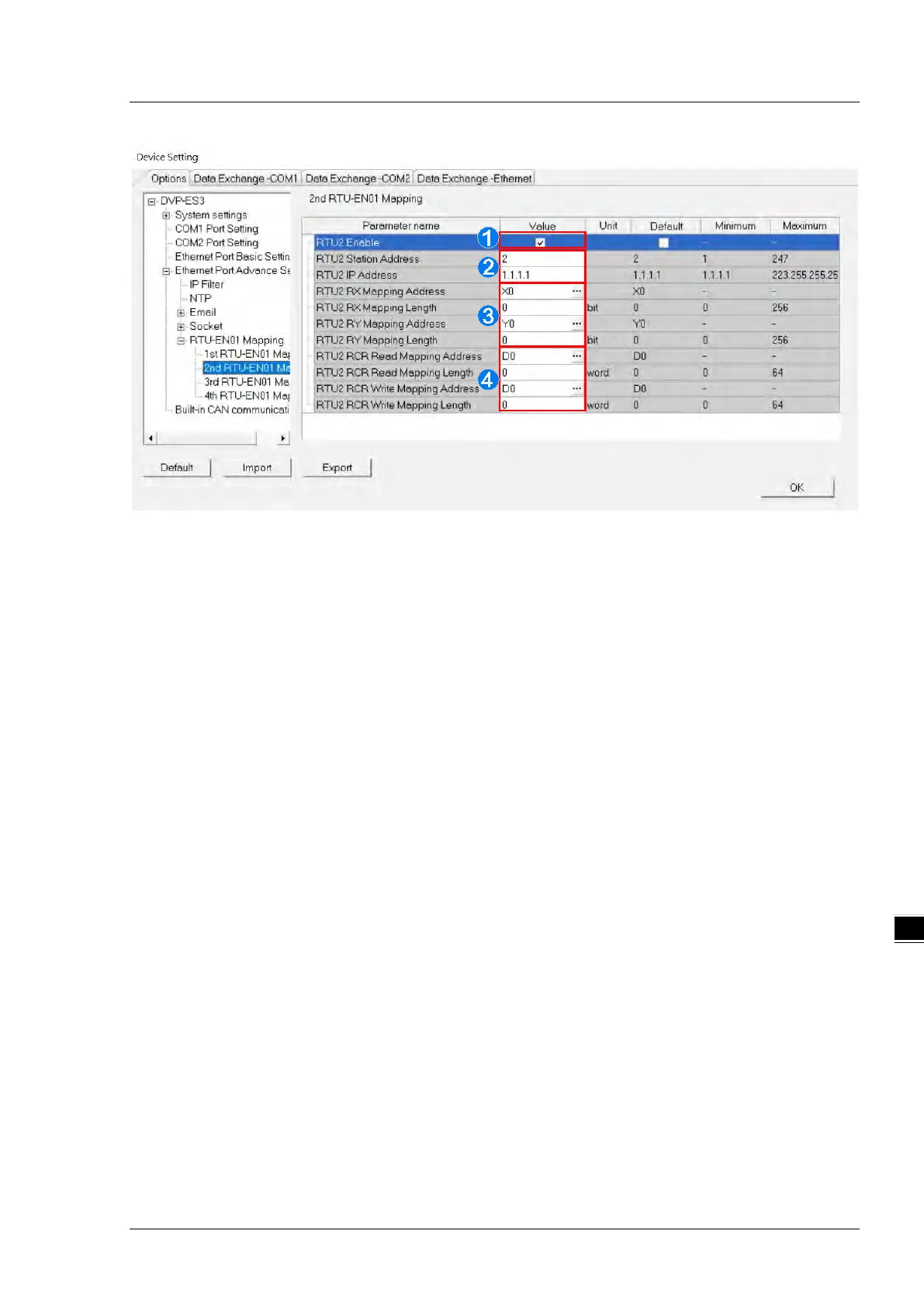

Select RTU1 Enable to enable this RTU function. You can set each RTU individually.
Set a station address and an IP address.
Set the RX mapping address and RX mapping length to make the digital input points for the DI module
connected to RTU and mapped to X/M devices, as well as the length for the DVP-ES3 Series module. Set the
RY mapping address and length to set the digital output points for the DO module mapped to Y/M devices, as
well as the length for the DVP-ES3 Series module.
Set the RCR Read mapping address and RCR Read mapping length to make the analog input points for the AI
module connected to RTU and mapped to D/SR devices, as well as the length for the DVP-ES3 Series module.
Use the RCR Write mapping address and length to set the analog output points for the AO module mapped to
D/SR devices, as well as the length for the DVP-ES3 Series module.
