Delta M60U

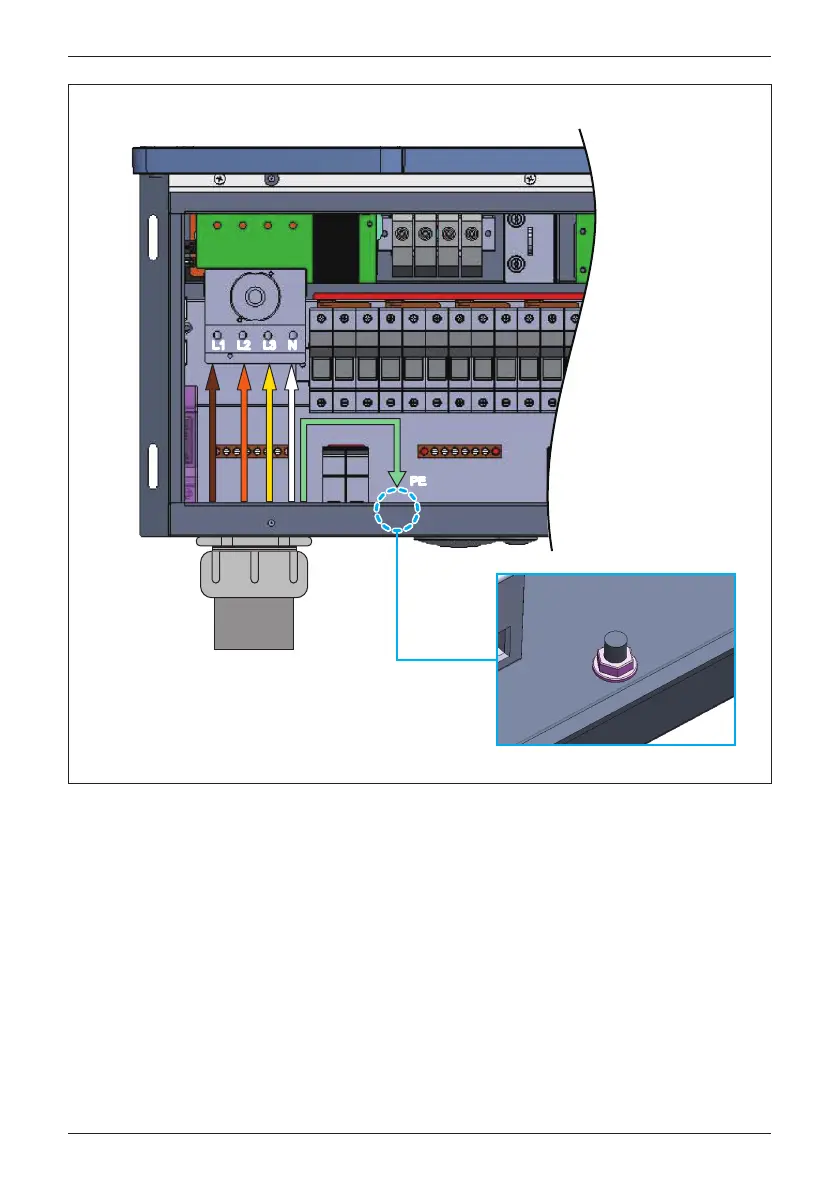

Figure 3-20: Two optional Location of AC terminals and wiring (120 model) (Continued)
L3L2L1
EMT
N
PE
N
PE
After inserting conductor,
torque terminal screw to 80 lbf-in (9 N•m)
Allowable PE conductor size 1~2/0 AWG (35~50mm²)
Grounding screw terminal
43
Installation
