Delta M60U

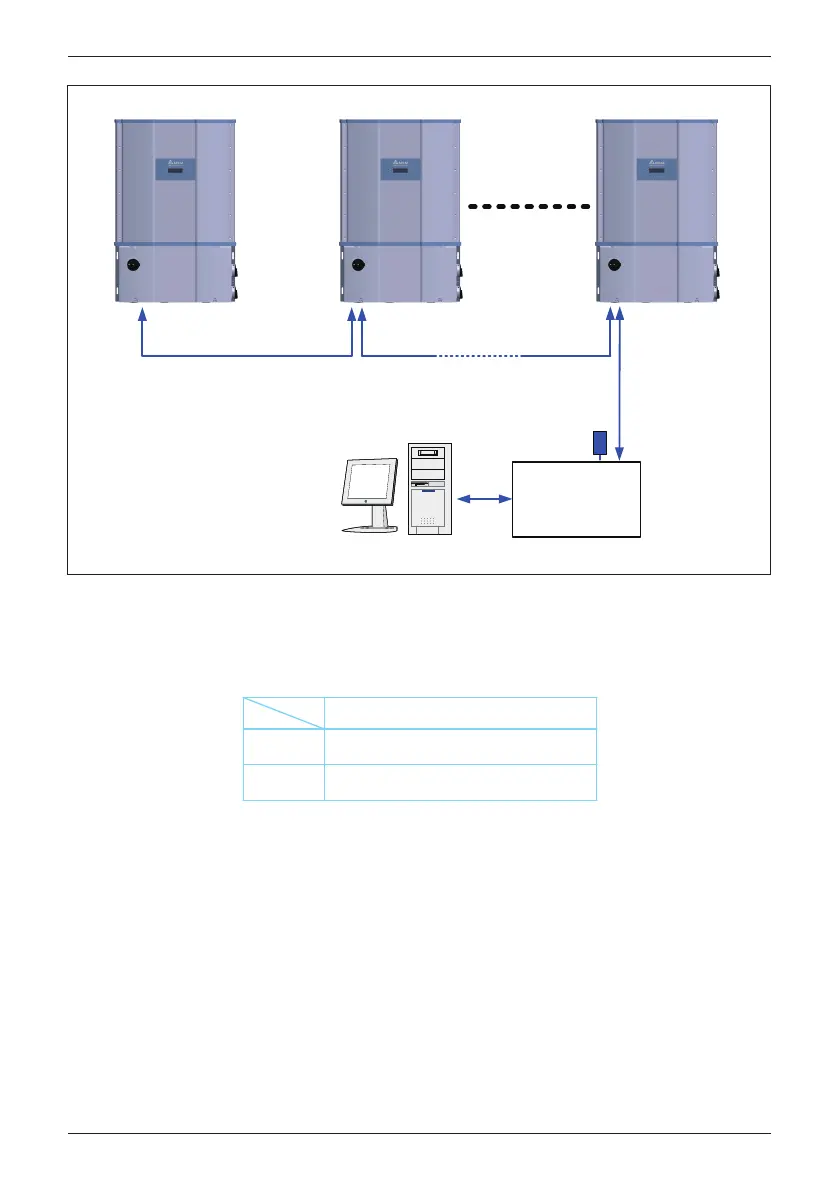

Figure 3-37: Multiinverter connection illustration
Data Format:
Baud rate: 19200
Data bits: 8
Stop bit: 1
Parity: N/A
RS485/USB
or
RS485/RS232
Terminal Resistor
120Ω(1/2W)
DATA+ to DATA-
Table 3-2: Vcc and Bus Termination switch settings
Switch 1
Terminal Resistor ON
Terminal Resistor OFF
OFF
ON
60
Installation
