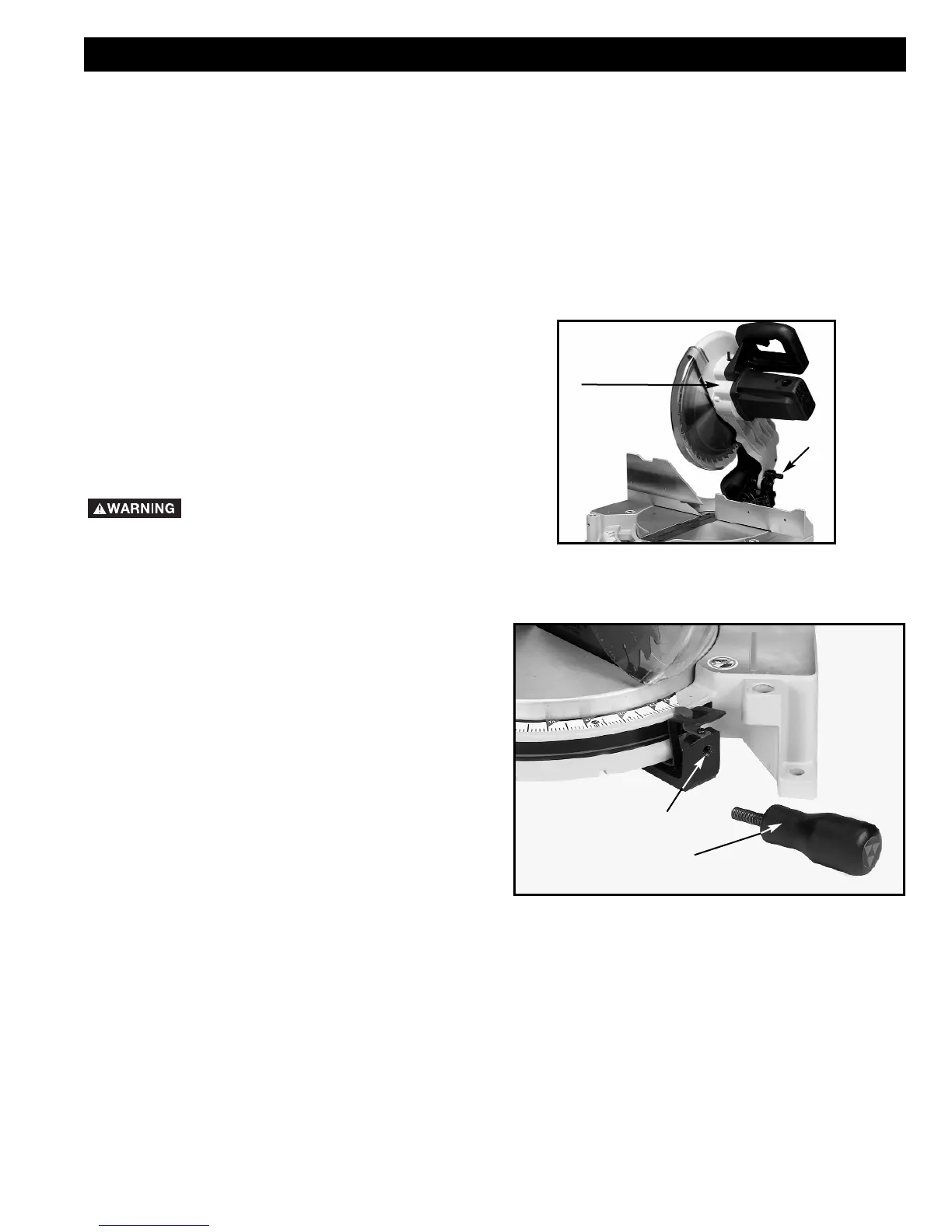

Delta MS450 - Assembly

9
Fig. 5
B
A
MOVING CUTTINGHEAD TO
THE UP POSITION
1. Push down slightly on the cuttinghead (B) Fig. 4
while pulling out the cuttinghead lockpin (A). Move
the cuttinghead (B) to the up position.
2. Fig. 5, illustrates the lockpin (A) pulled out and the
cuttinghead (B) in the up position.
MAKE SURE SAW CUTTINGHEAD
RETURNS FREELY TO THE FULL RAISED POSITION
TO ENSURE THE LOWER BLADE GUARD FULLY
ENCLOSES THE BLADE.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
3mm hex wrench (supplied)
Assembly time for this product will be about 30 minutes to an hour.
ATTACHING THE MITER HANDLE
Thread the miter saw handle (A) Fig. 5A or (6) Fig. 2
into the hole in the table (B) Fig. 5A.
B
A
Fig. 5A
