Quick installation guide for solar inverters RPI M6A M8A M10A EU V4 EN 5013221703 00 2017-11-16

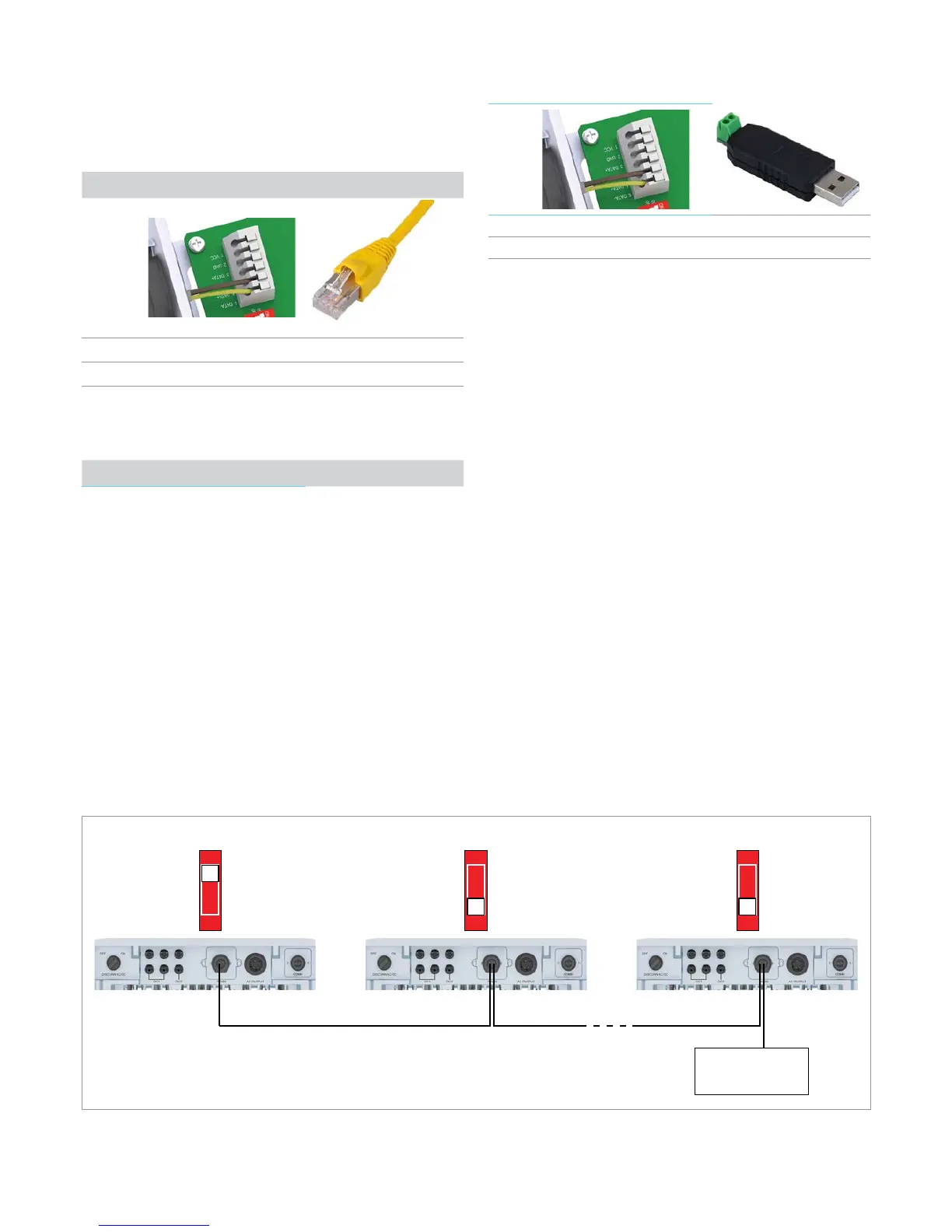

Connecting a data logger via RS485
Connecting a Delta SOLIVIA Gateway M1 G2
Requirements include a CAT5 cable with RJ45 plugs on one side
and an open end on the other side.
Inverter SOLIVIA Gateway M1 G2
1
8
DATA+ Terminal 3 or 5 Pin 7
DATA– Terminal 4 or 6 Pin 6 or 8
Connecting a PC via RS485
The inverter can be congured using the Delta Service Software.
► Connect the PC to the inverter via a USB/RS485 adapter.
Inverter USB/RS485 adapter
DATA+ Terminal 3 or 5 D+
DATA– Terminal 4 or 6 D–
Connecting multiple inverters to a data logger
► If the data logger does not have an integrated RS485 termi-
nation resistor, switch on the RS485 termination resistor on
the rst inverter.
► Set a different inverter ID at each inverter during commis-
sioning of the inverters.
...
RS485
ON
1
ON
1
ON
1
Termination resistor = ON Termination resistor = OFF Termination resistor = OFF
Data logger
