Delta RPI M6A Quick Installation Guide

21
Quick installation guide for solar inverters RPI M6A M8A M10A EU V4 EN 5013221703 00 2017-11-16

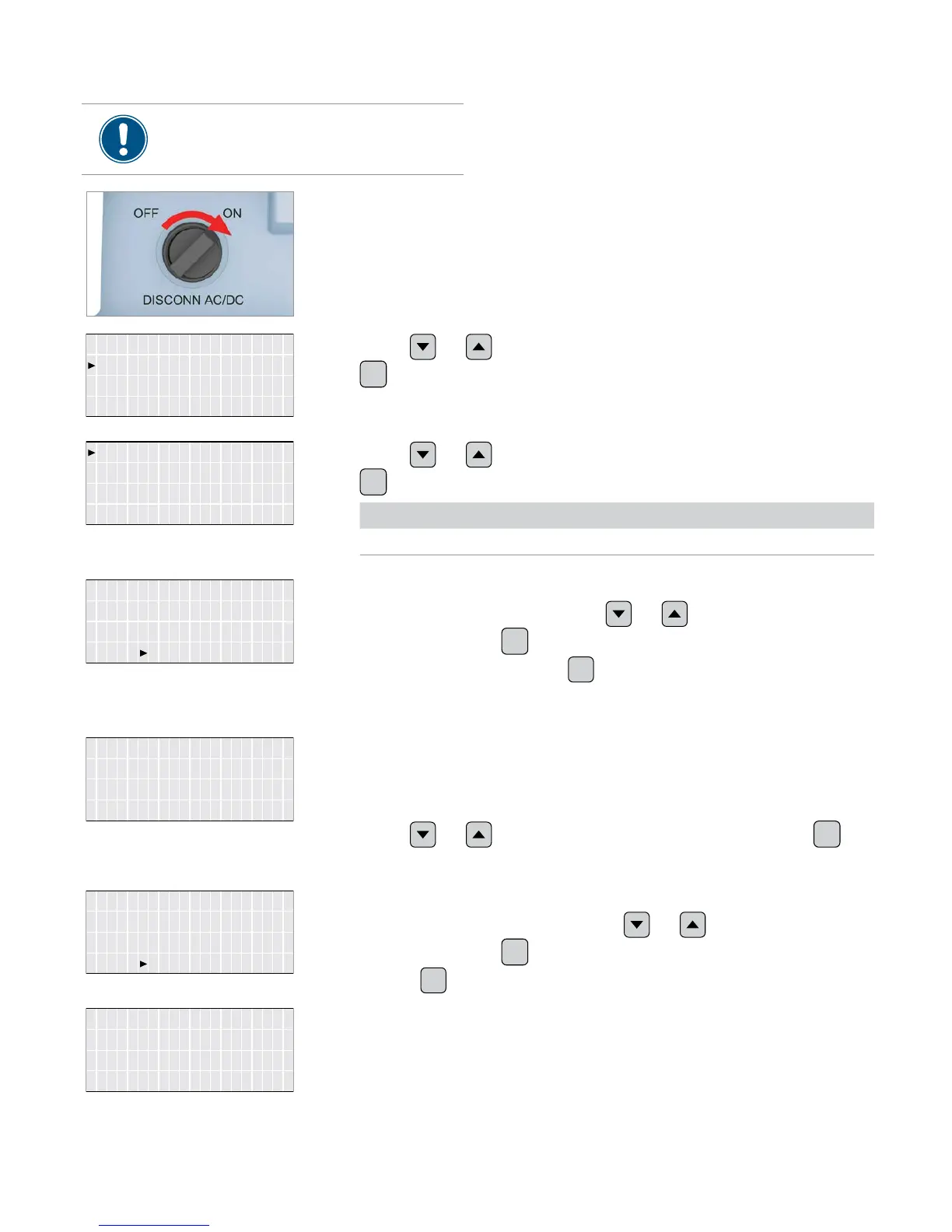

Commissioning – basic settings
The inverter must be supplied with AC voltage
(grid) or DC voltage (solar modules) in order to
be able to perform commissioning.
1. Turn the AC/DC disconnector to the ON position.
Français
Deutsch
English
Select language
2. Use the and buttons to select the English language and then press the
ENT
button.
FRA-Is 60HZ
UK G59-3 230
FRA-Is 50HZ
FRA-Is 60HZ
FRANCE MV
3. Use the and buttons to select your country or grid type and then press the
ENT
button.
Country Available grids Description
United Kingdom
UK G59-3 230
according to UK G59-3 230 V
Yes / No
UK G59-3 230
set country:
Are you sure to
4. Check that the correct country or mains type is selected.
If the correct country is selected, use the
and buttons to select the Yes
entry and the press the
ENT
button.
To change the selection, press the
ESC
button.
→ The inverter starts a self-test lasting approx. 2 minutes. The remaining time is
shown on the display.
ID=001
Setting ID:
NOTICE
If multiple inverters are connected to the PV system then a different inverter ID must set for
each inverter. For example, the inverter ID is used by monitoring systems to uniquely iden-
tify each inverter.
5. Use the and buttons to set the individual digits and then press the
ENT
button.
Yes / No
ID: 1
Are you sure to set
6. Check that the correct inverter ID is set.
If the correct inverter ID is selected, use the
and buttons to select the Yes
entry and the press the
ENT
button.
Press the
ESC
button to change the selection
E-Today: 0kWh
Power: 0W
Status: On Grid
12.Jun 2016 15:32
þ
The basic settings are now complete. The standard menu is displayed.
