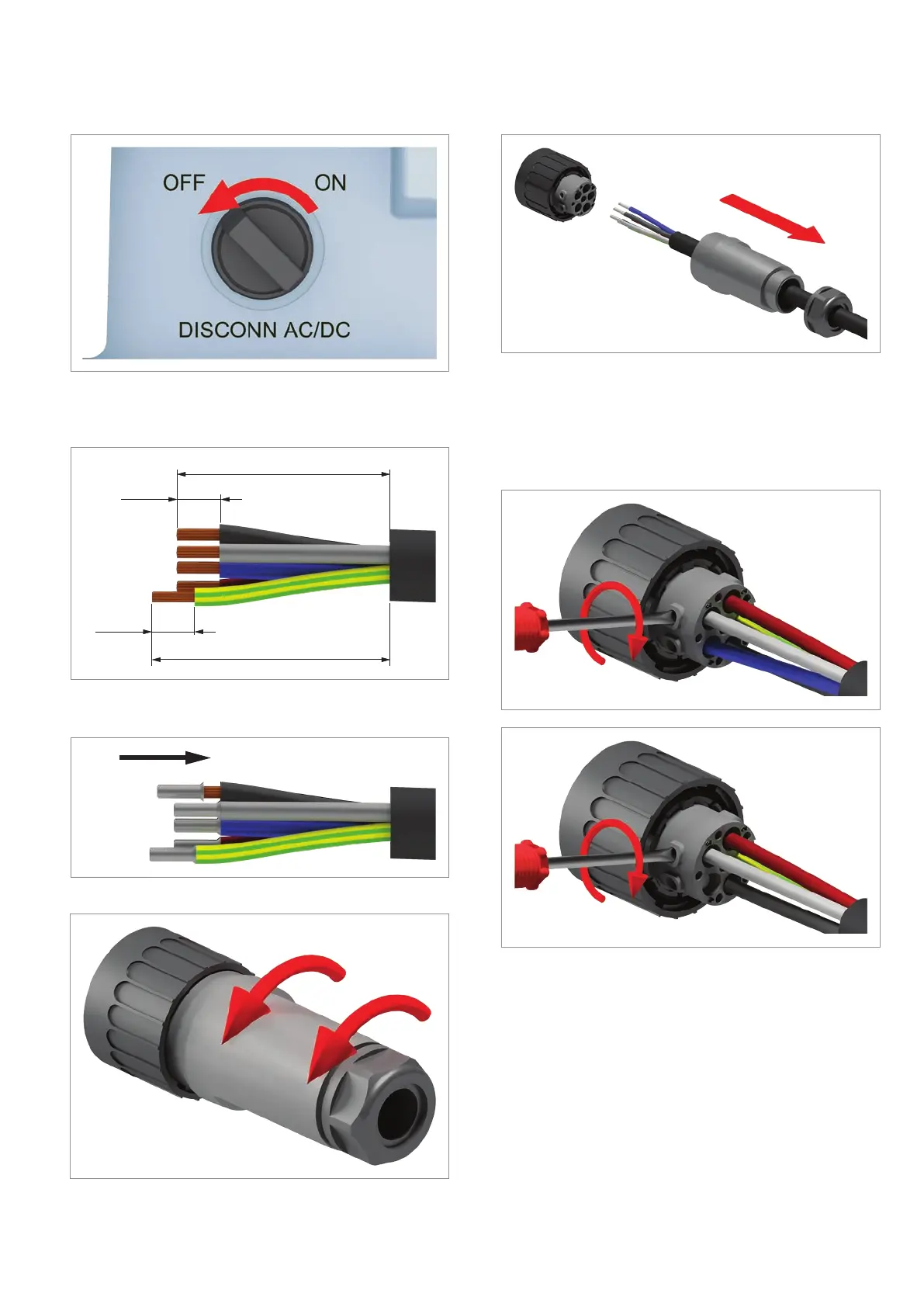

1. Turn the AC/DC disconnector to the OFF position.
2. Remove the insulation from the cable and wires. Do
not twist the wire ends because this reduces the con-
tact surface area with the wire end sleeves.
12 mm
52.5 mm
12 mm
55 mm (PE)
3. Fit and crimp the wire end sleeves to the ends of the
wires.
4. Unscrew the nut and housing from the AC plug.
5. Pull the cable through the nut and housing.
6. Insert the wires of the AC cable into the correct pin
inserts and tighten with a screwdriver.
The rst gure shows the wiring for a 3-phase grid
with a neutral conductor (3P4W), the second gure
shows the wiring for a 3-phase grid without a neutral
conductor (3P3W).
Connecting the grid (AC)
