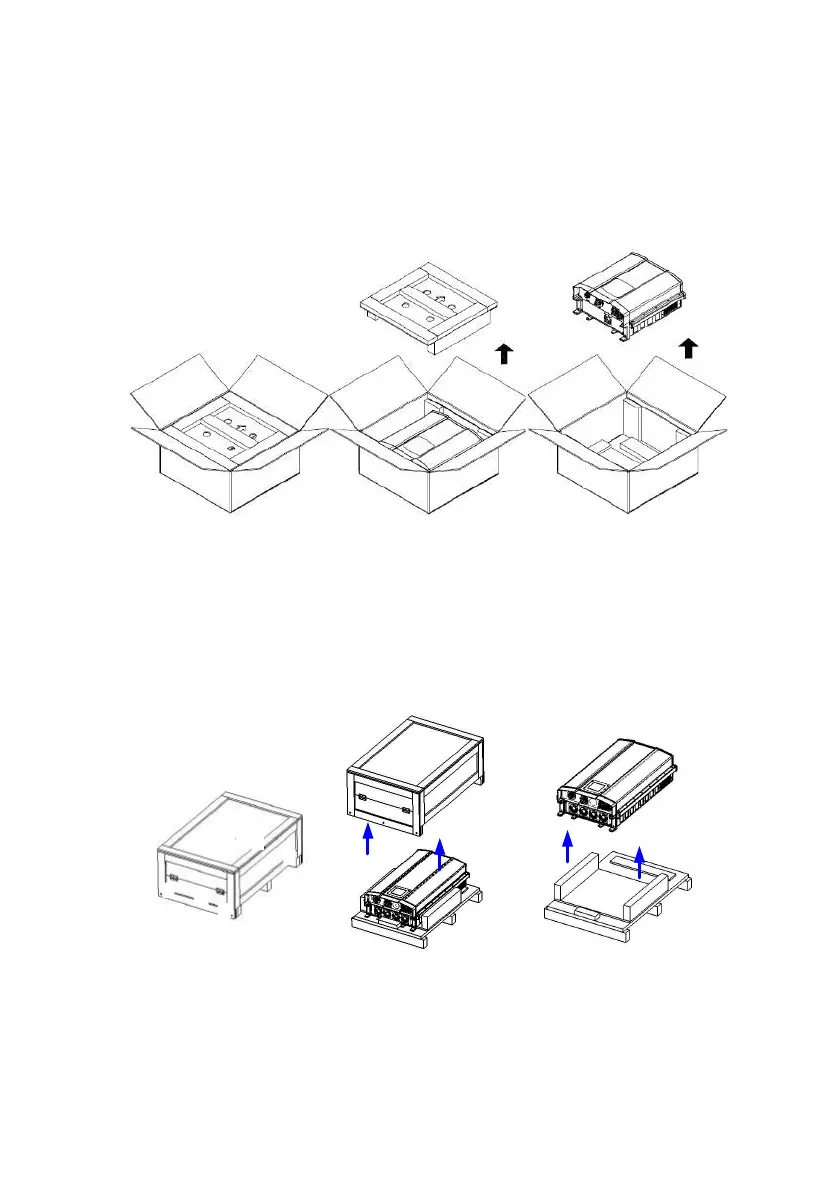

2.3 Unpacking
 Unpacking process for RPI-M8/ M10/ M12/ M15A/ M20A.
1. Open the carton (see Figure 2-2a).
2. Remove the cover on the inner box (see Figure 2-2b).
3. Lift Inverter (see Figure 2-2c).
a. b. c.
Figure 2-1 Carton unpacking process
 Unpacking process for RPI-M15/ M20/ M30.
1. Unscrew the 6 screws (see Figure 2-1a for the locations).
2. Lift the cover of box (see Figure 2-1b).
3. Lift Inverter (see Figure 2-1c).
5
4
6
1
2
3
a. b. c.
Figure 2-2 Wooden case unpacking process
