8.1 Clean Fan
Loose the 4 screws of the Fan bracket at the 4 corners first. User can see the
connectors of fan(s) when pull the fan bracket slightly. RPI-M10/ M12 has 1 set of
fan. RPI-M15A/ M20A has 2 sets of fan. RPI-M15/ M20/ M30 has 4 sets of fan.
After disconnect the connectors, user can pull out the whole fan bracket from
inverter and clean up the fan.
1
2
3
4
RPI-M15/ M20/ M30
RPI-M8/ M10/ M12 RPI-M15A/ M20A

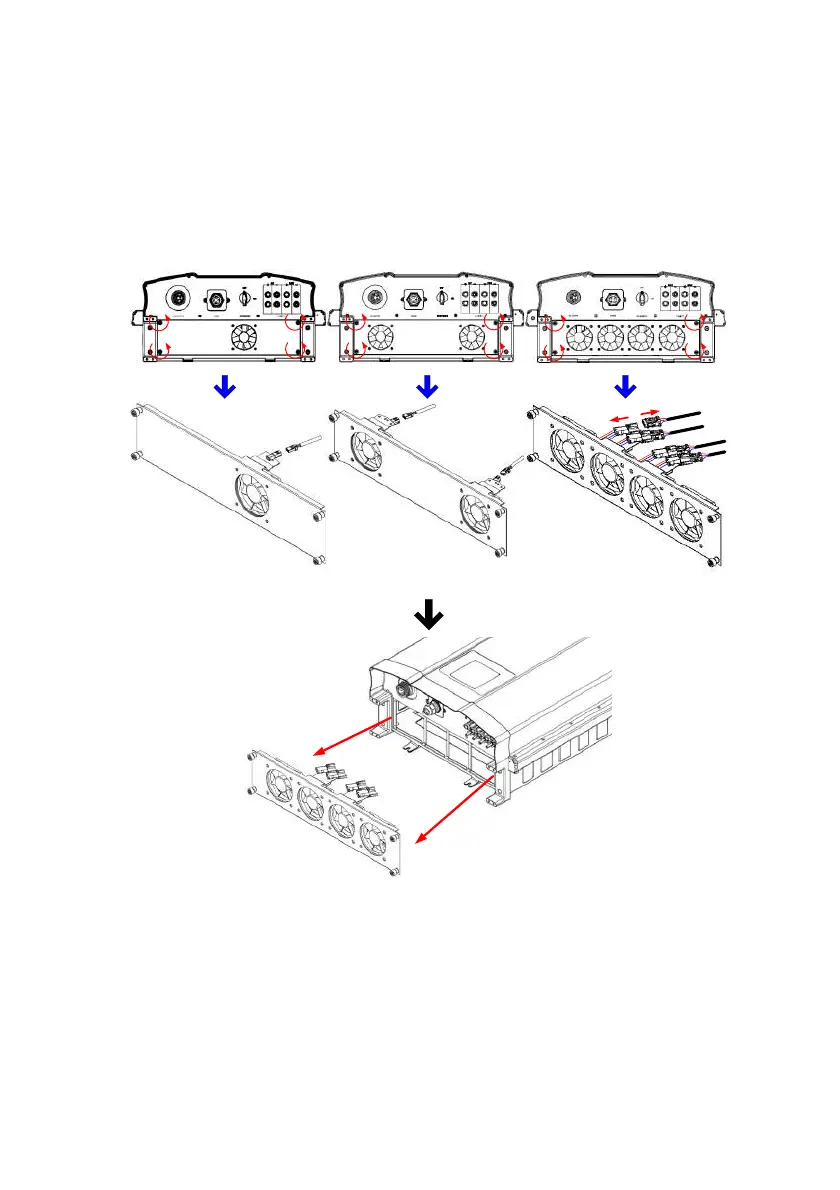

Figure 8-1 Steps of disassembling fan bracket
