Delta RPI-M8

11

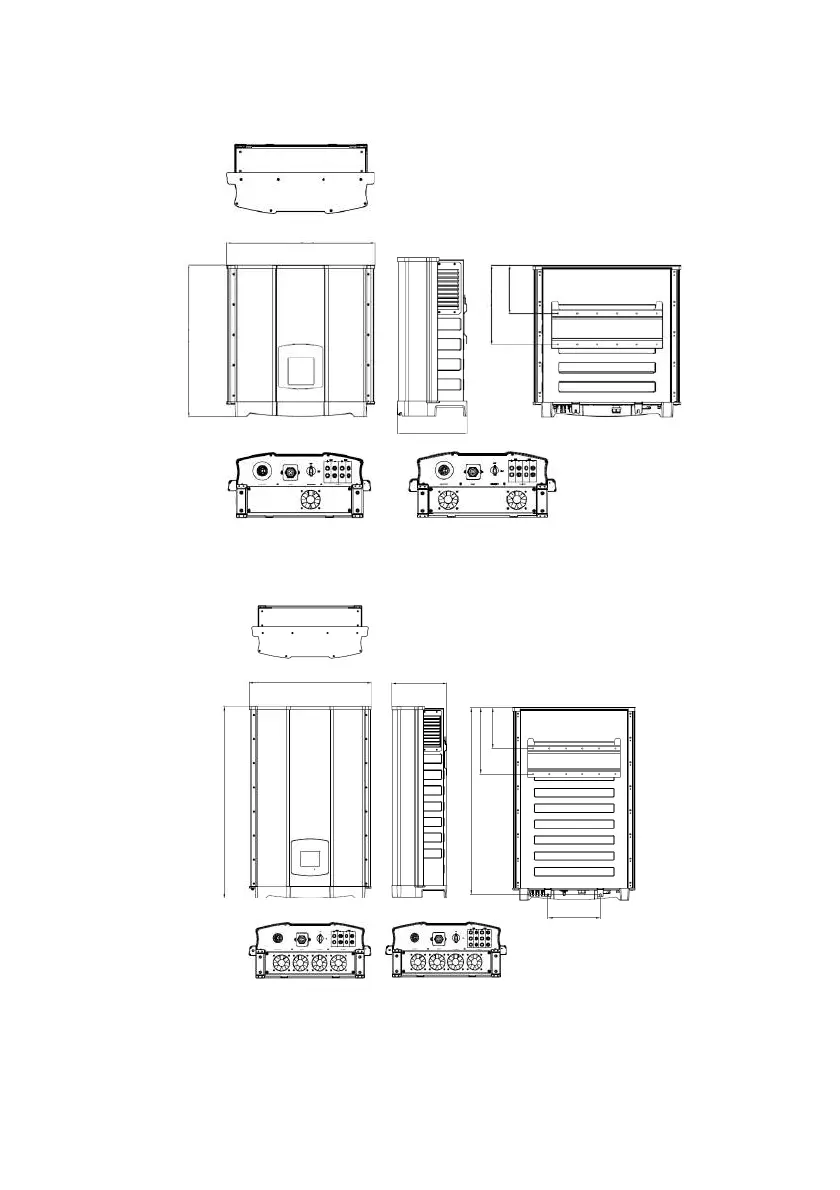

3.2 Dimension
Top view
Front view Side view Back view
Bottom view
326 [12.8]
198 [7.8]
278 [10.9]
612 [24.1]
625 [24.6]
RPI-M8/ M10/ M12 RPI-M15A/ M20A
Figure 3-2 Dimension of RPI-M8/ M10/ M12/ M15A/ M20A
Top view
Front view Side view Back view
RPI-M30RPI-M20 / RPI-M15
Bottom view
331 [13.0]
203 [8.0]
278 [10.9]
960 [37.8]
612 [24.1]
931 [36.6]
260 [10.2]
Figure 3-3 Dimension of RPI-M15/ M20/ M30
