7.2.6.4.3 Constant cosφ
When this Mode is turned on, inverter will maintain power factor as a constant
value. Users can set power factor from Cap 0.80 to Ind 0.80.
Reactive Power Control
21. Jun 2010 13:50
cosφ Ind 0.90[ ]
Mode ON[ ]
Figure 7-21 Constant cosφ setting page
7.2.6.4.4 cosφ(P)
The output power factor would be affected by feeding power. Lock-in voltage and
Lock-out voltage are only adjustable if Country setting is Italy BT or Italy MT.
Inverter would feed-in reactive power depends on active power once Grid voltage
is higher than Lock-in voltage and back to pure active power when Grid voltage is
lower than Lock-out voltage. For the countries other than Italy, cosφ (P) control
will not concern Grid voltage.
a
b
c
d
Lock-out Voltage [ ]
Reactive Power Control
21. Jun 2010 13:50
Mode OFF[ ]
230.0
V
Lock-out Voltage
[ ]
Reactive Power Control
21. Jun 2010 13:50
Lower limit - cosφ
Upper limit - cosφ Cap 0.90
Ind 0.90
[
[
]
]
Lower Power 0[ ] %
Upper Power 100[ ] %
Lock-in Voltage 241.5[ ] V
Upper
Limit
Lower
Limit
P/Pn
1
cosφ
Lower
Power
Upper
Power
a
b
c
d

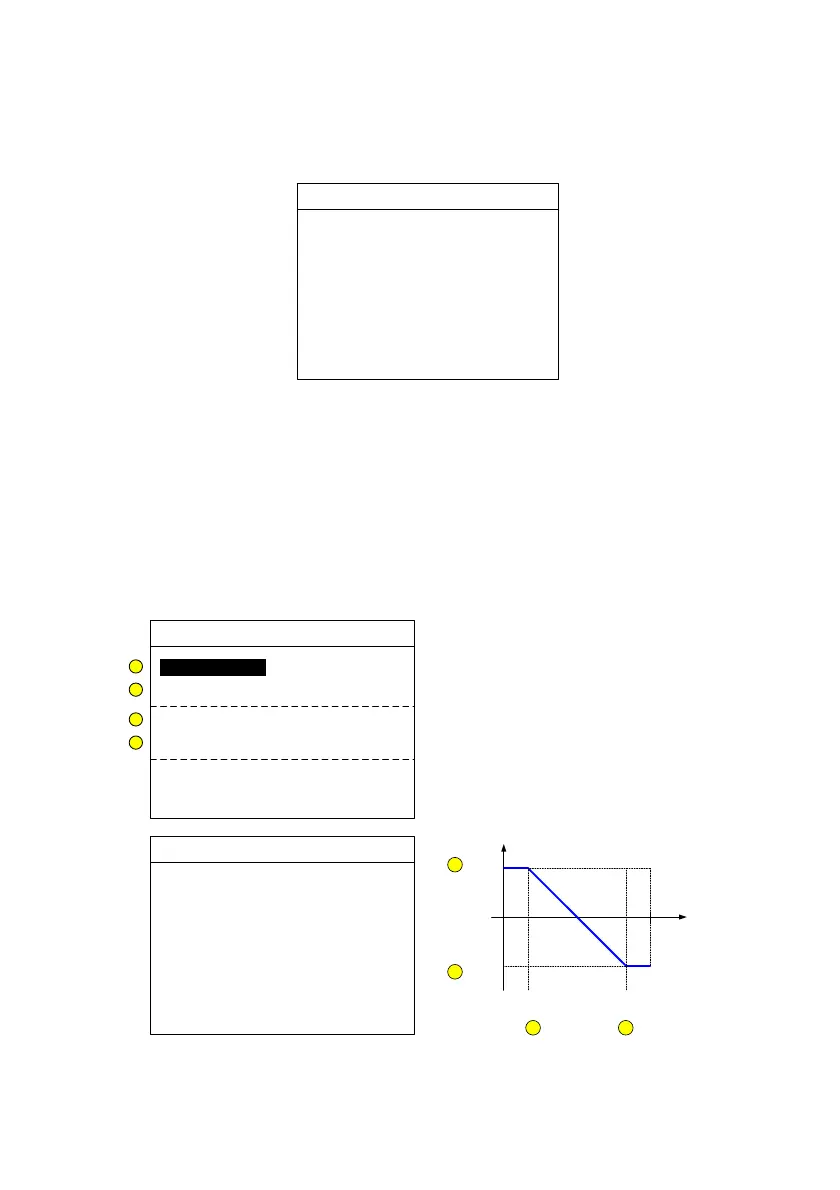

Figure 7-22 cosφ(P) setting page
