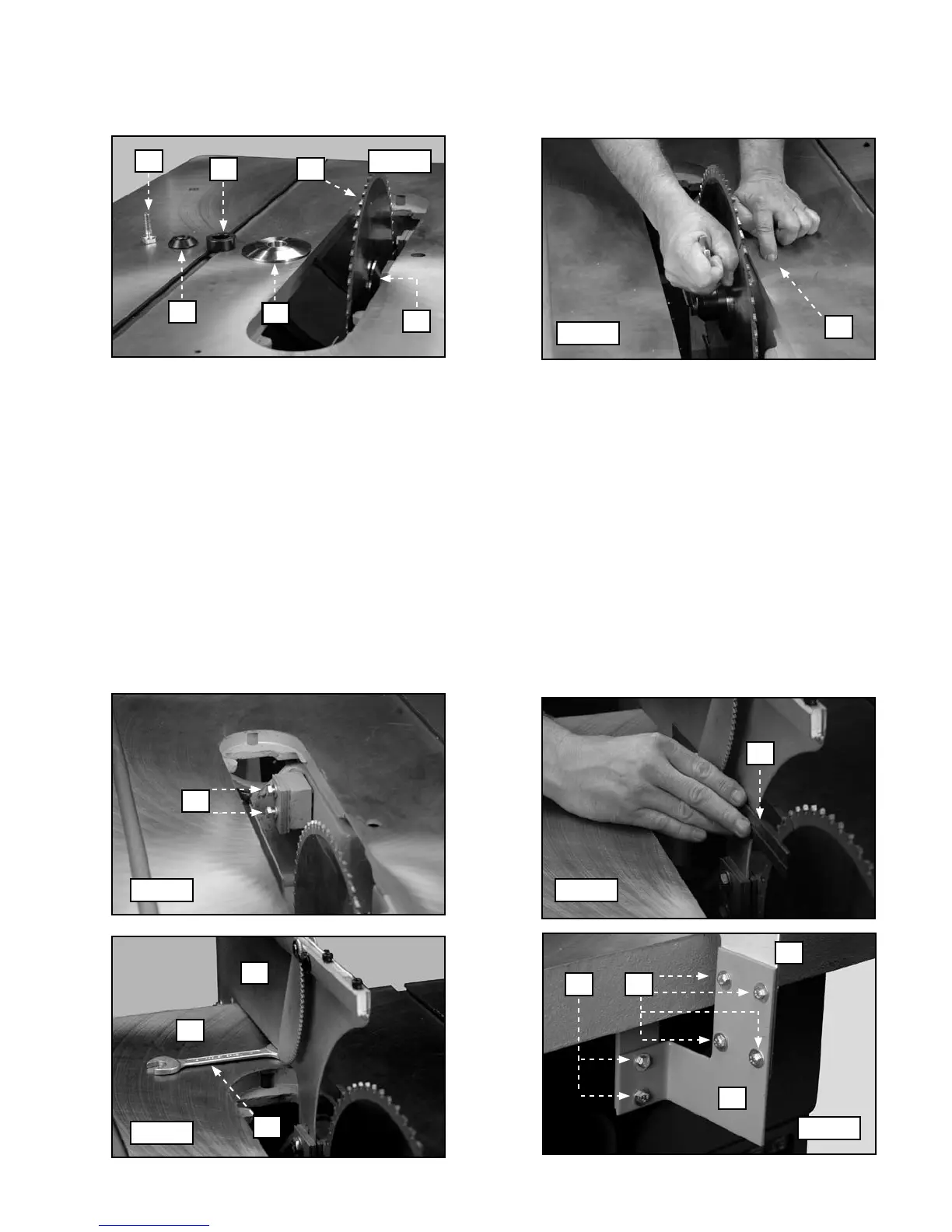

3. Place the saw blade (A) Fig. 10 with the teeth pointing down toward the front of the saw, against the interior blade
flange (B).
4. Add the exterior blade flange (C ), the spacer (D ), the retainer (E ), and the arbor bolt (F).
5. Press down on the arbor lock button (A) Fig. 11 and securely tighten the arbor bolt by turning it counter-clockwise.
Fig. 10
Fig. 11
A
B
C
D
E
F
HOW TO ATTACH THE BLADE GUARD AND SPLITTER ASSEMBLY
IMPORTANT: The width of the blade determines the correct position of the splitter on the splitter mounting bracket.
1. Loosen the two bolts (A) Fig. 12.
NOTE: Three sizes of individual spacers are located on the splitter mounting bracket.
2. Place a straight edge (A) Fig. 13 against the back of the blade. Align the blade with the splitter.
3. Place the splitter where indicated inside the spacers of the splitter mounting bracket.
NOTE: Position the splitter approximately 1/8" above the table surface.
4. Use the arbor wrench (A) Fig. 14 as a spacer. Place it between the splitter (B) and the table surface (C). Tighten the
two bolts (A) Fig. 12.
5. Use the four M6 x 20mm hex-head screws (A) Fig. 15, the eight flat washers, and four hex nuts to attach the splitter
bracket (C) Fig. 15 to the splitter (D).
6. Use the two M6 x 25mm hex-head bolts (B) Fig. 15, four flat washers, and two hex nuts to attach the splitter bracket
assembly to the clamp.
NOTE: Loosely tighten the bolts for further adjustment.
