9

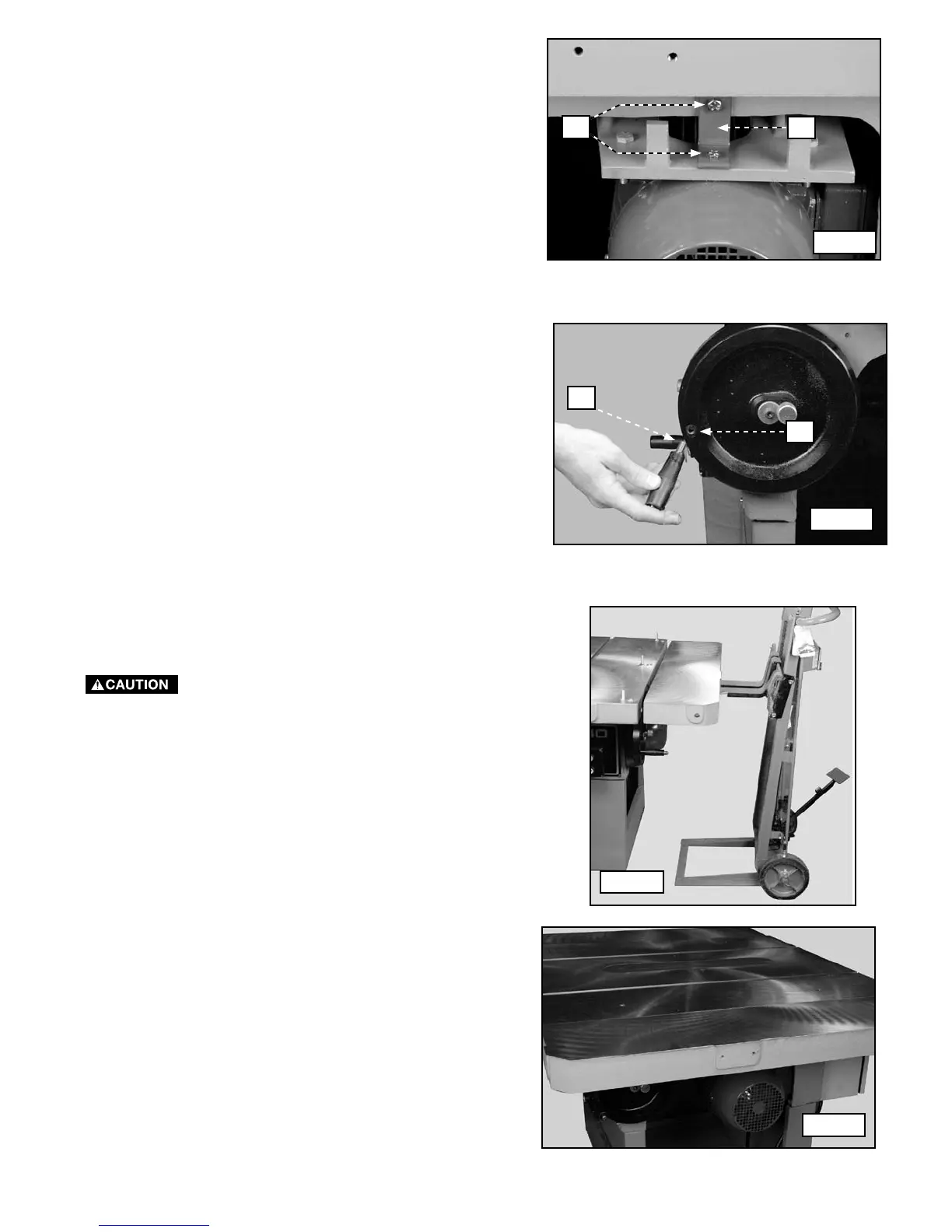

IMPORTANT - Before assembling this machine, remove
the two bolts (A) Fig. 1 and the red shipping strap (B).
This bracket protects the motor during shipment.
A
B
Fig. 1
HOW TO ATTACH THE TABLE EXTENSION WINGS
This machine is supplied with two table extension wings.
Attach the extension wing with the two tapped holes (A)
Fig. 4 to the right side of the machine.
HOW TO ATTACH THE HANDLE TO THE ELEVATOR MECHANISM
Insert the threaded end of the handle (A) Fig. 2 in the
threaded hole of the elevator wheel (B) and tighten it
securely by turning it clockwise.
The table extension wings are very heavy.
Use a lifting device (Fig. 3) to lift and hold the extension
table in place during installation.
Fig. 2
Fig. 3
Fig. 4
A
B
