Delta S Series User Manual

Delta Electric Servo Press - S Series
Installation and Maintenance Instructions
7
3.3 Emergency Stop Button
When the emergency stop button is pressed, the spindle operation will stop in an instant
and the buzzer will sound. In addition, a warning message appears on the human-machine
interface or teaching box. To reset the emergency stop state, simply turn the pressed

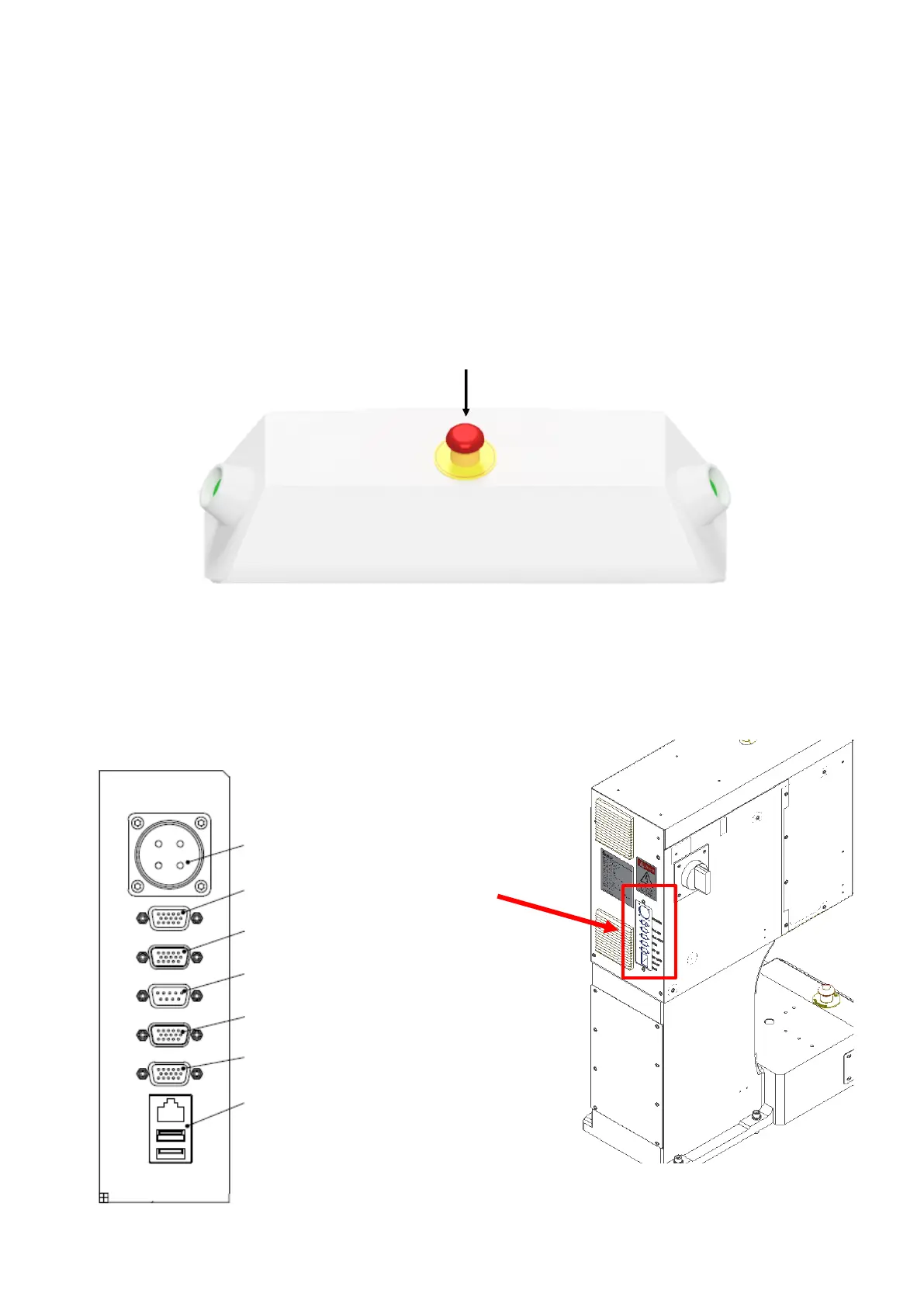

emergency stop button clockwise. The figure below shows a device configured with the
emergency stop button.
Caution: After emergency stop is released and before it returns to the operation mode, the spindle
has to be initialized.
3.4 External Control Mode
The following shows the I/O signal contacts.
The position is directly behind the machine (arrow)
Emergency Stop Button
USB
Power
Ext. OUT (D-Sub 15Pin Female)
Ext. IN (D-Sub 15Pin Male)
AUX (D-Sub 9Pin Female)
RJ-45 (Ethernet)
I/O IN (D-Sub 15Pin Male)
I/O OUT (D-Sub 15Pin Female)
