14 Operation and installation manual SOLIVIA 2.5 EU G3
8
1
Pin
1 Reserved
2 Reserved
3 Reserved
4 GND (RS485)
5 Reserved
6 RX_B (RS485)
7 TX_A (RS485)
8 Reserved
Top View

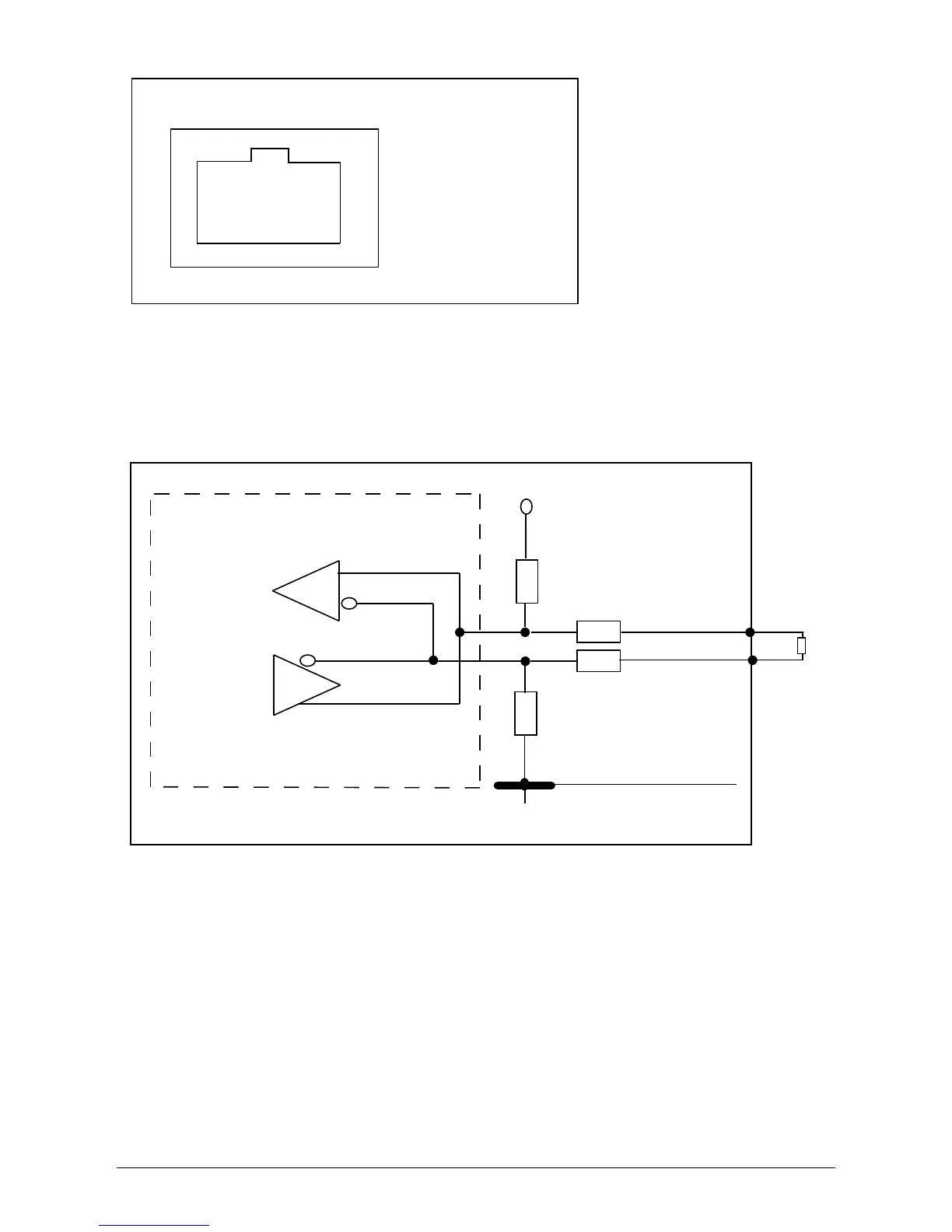

Connector pin assignment RS485 (EIA485)
+5V
Reserved
Reserved
0R
0R
TX_A
RX_B
GND
Pin 7
Pin 6
100 ... 150
Ohm, 0,25W
When several devices are connected in series and the total length of the data line measures 2 m or
more, the following option is available for terminating the RS485 (EIA485) interface:
